Virranjakoyksikkö Bachmann 909.0056

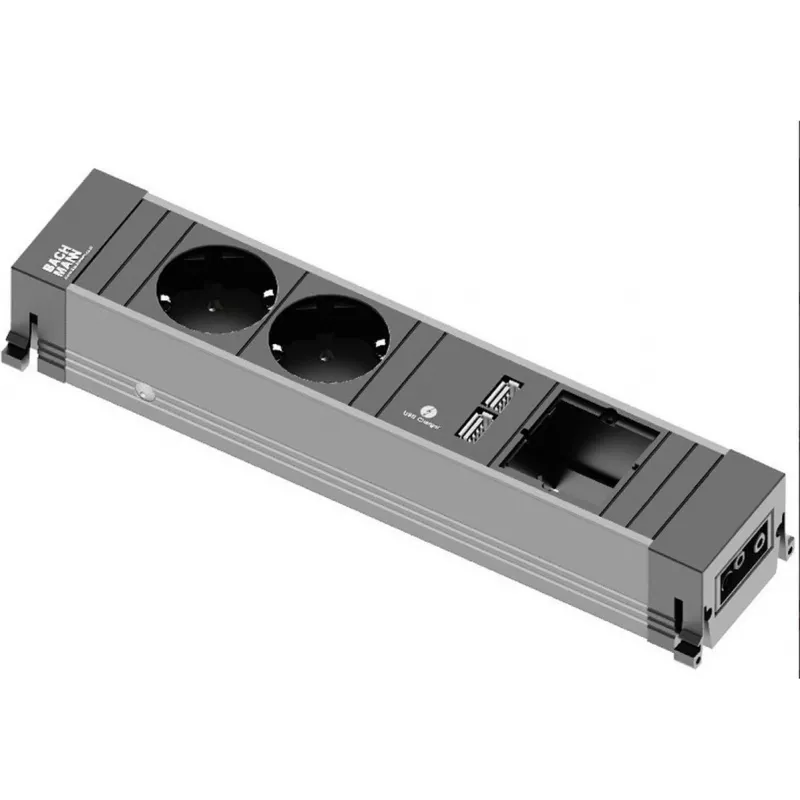

The Bachmann 909.0056 is a modular power distribution unit in an anodised aluminium profile with a black finish. It features a GST18i3 inlet and GST18i3 outlet for power input and daisy-chaining, and provides a compact 4-way configuration that combines AC sockets, USB charging and a customizable module layout for flexible power management in offices, meeting rooms, workstations and other commercial or home environments.

Advantages

The unit includes two shuttered Type F AC socket outlets with earthing contact set at a 35° angle for convenient plug access, an integrated double USB charger (5.2 V / 2.15 A) for mobile devices, and one custom module slot to add specialized functionality. Constructed from anodised aluminium, the PDU offers durable build quality and a slim profile that is easy to integrate into furniture or work surfaces.

Suitable for

• Office desks and workstations
• Meeting and conference tables
• Home offices and study areas
• Furniture integration and custom installations

Key specifications

• Brand: Bachmann
• Model / MPN: 909.0056
• EAN: 4016514059553
• Housing: anodised aluminium profile, black finish
• Power input / output: GST18i3 plug and GST18i3 socket
• Configuration: 4-way — 2 x Type F AC sockets (shuttered, earthed) + 1 x USB double charger (5.2 V / 2.15 A) + 1 x custom module slot
• Socket angle: 35°

How to use

Mount the PDU into a furniture cut-out or surface opening following the manufacturer’s installation instructions. Connect mains power using the GST18i3 plug; if required, use the GST18i3 socket on the unit to link additional modules or PDUs. Insert plugs into the angled AC outlets and connect USB devices to the integrated USB double charger. Ensure all connections are secure before powering the unit.

Recommendations

Use the unit in dry, indoor environments and avoid overloading individual outlets. For custom module installation or electrical wiring, follow local regulations and consult a qualified electrician if necessary.
