Vogel's EPC 6545 - projektorin kattoratkaisu

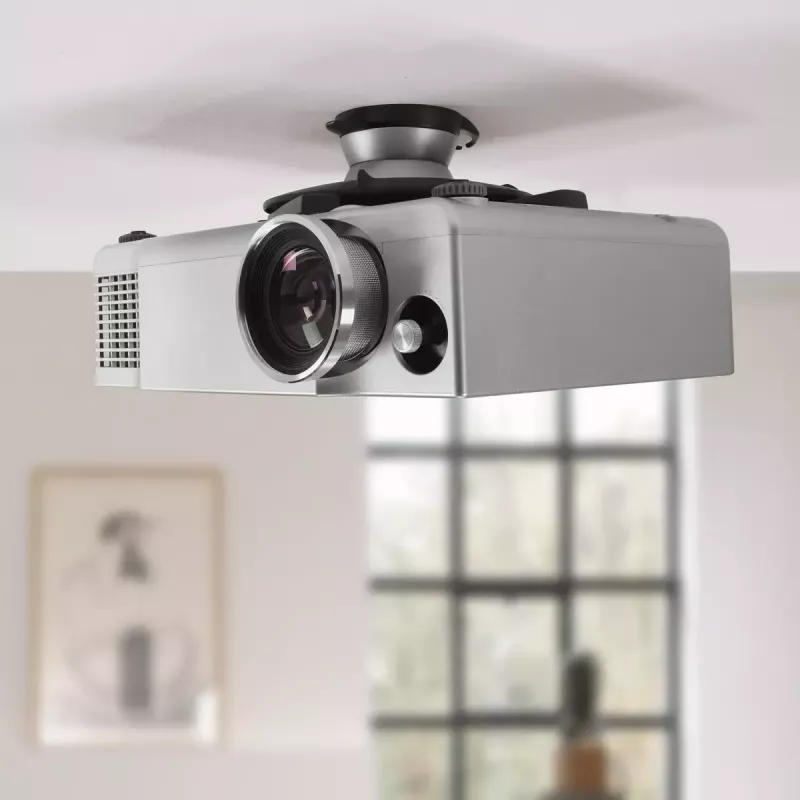

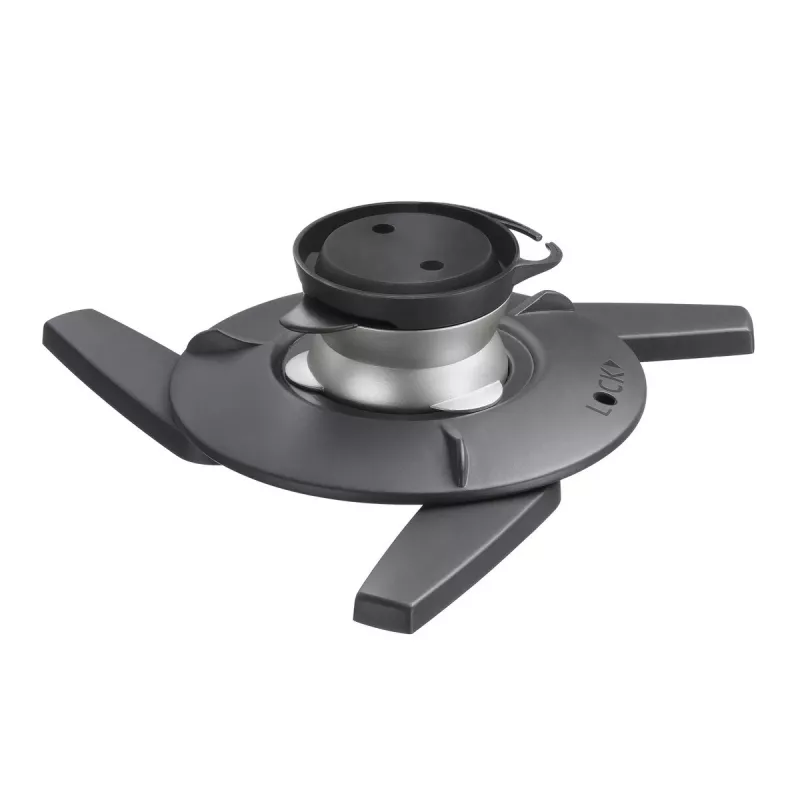

The Vogel's EPC 6545 Ceiling Mount enables secure ceiling installation of a projector up to 10 kg. With a minimum to maximum distance from the ceiling of 7.6 cm, the mount offers a compact, stable solution for home theaters, classrooms and meeting rooms. The mount includes a universal projector connector compatible with most projector models and a ceiling cover for a neat finish.

Advantages

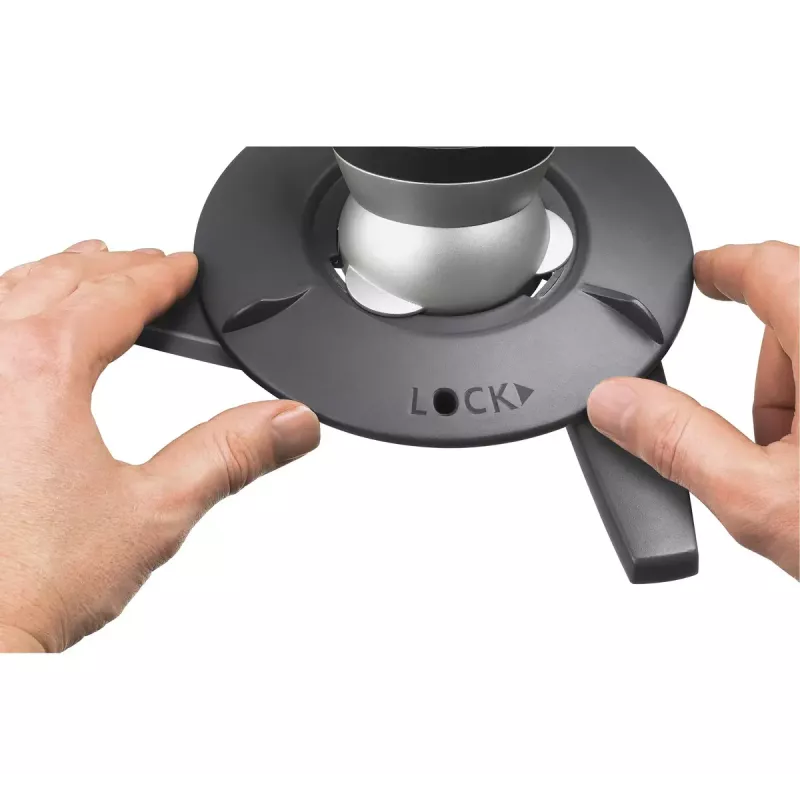

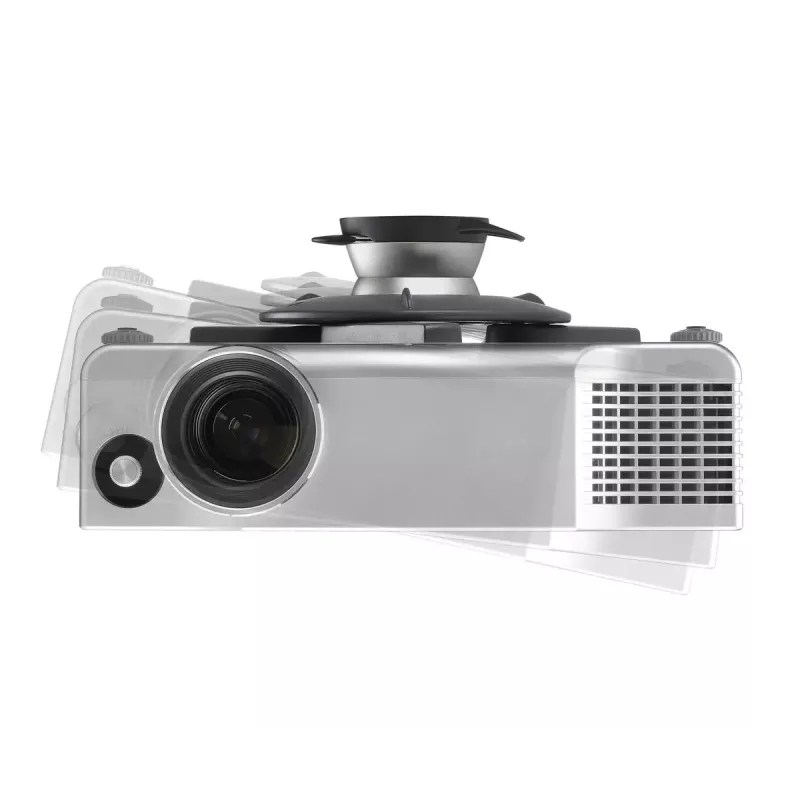

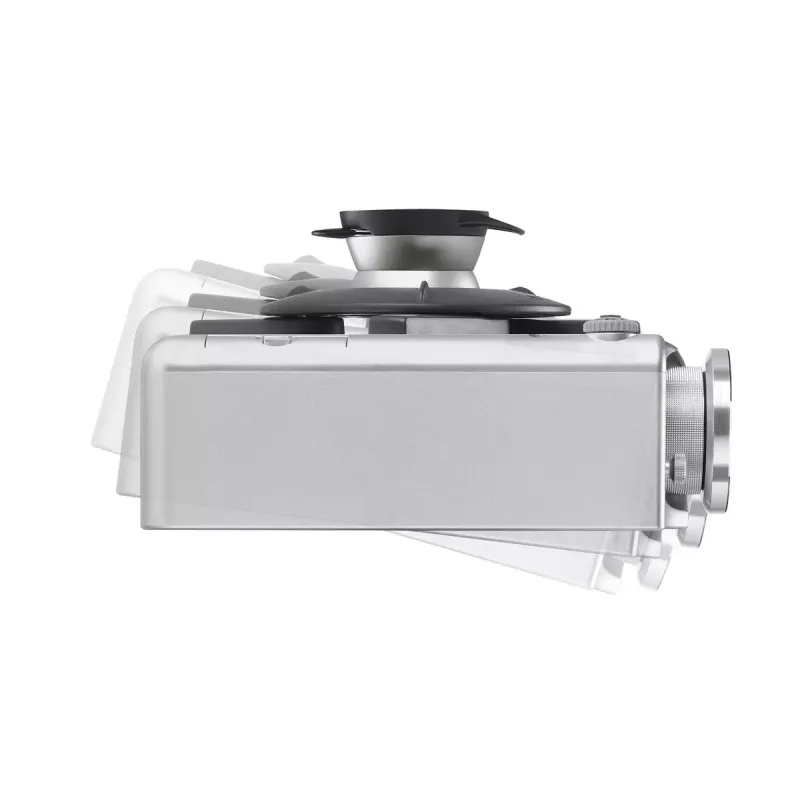

The mount features a spherical hinge joint that allows tilt, turn and roll adjustments and an Adjust & Secure mechanism to lock the projector in the chosen position. A patented CIS® Cable Inlay System conceals cables inside the mount. The product offers easy installation with Click & Switch and Easy Connect functions and is compatible with projectors up to 10 kg.

Suitable for

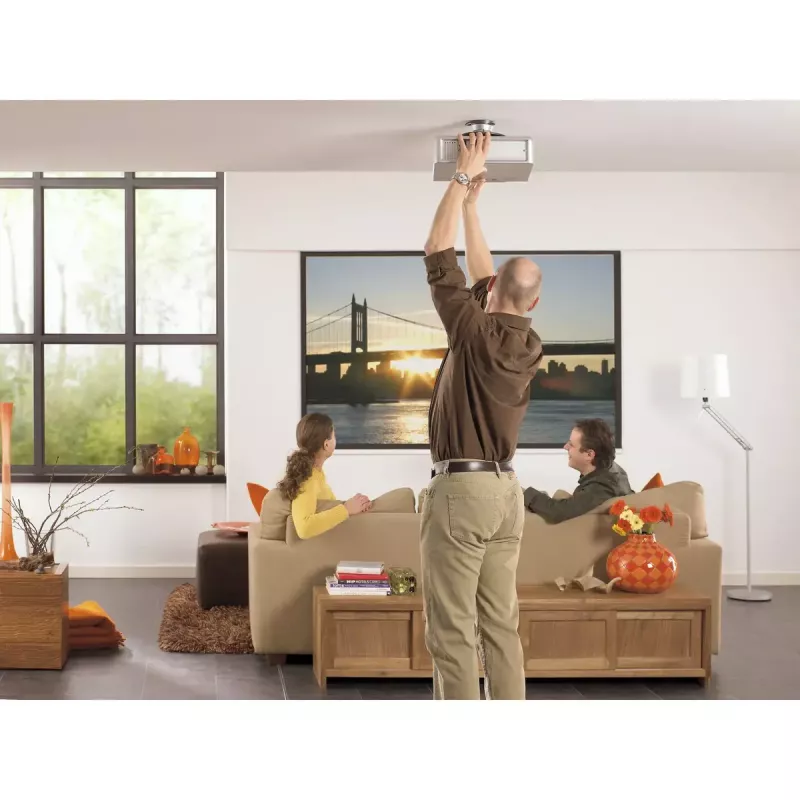

• Home theatre projector installations
• Classroom and educational spaces
• Conference rooms and meeting spaces
• Small offices or presentation rooms

Key specifications

• Brand: Vogel's
• Model: EPC 6545 (MPN 73200850)
• EAN: 8712285311420
• Maximum weight capacity: 10 kg

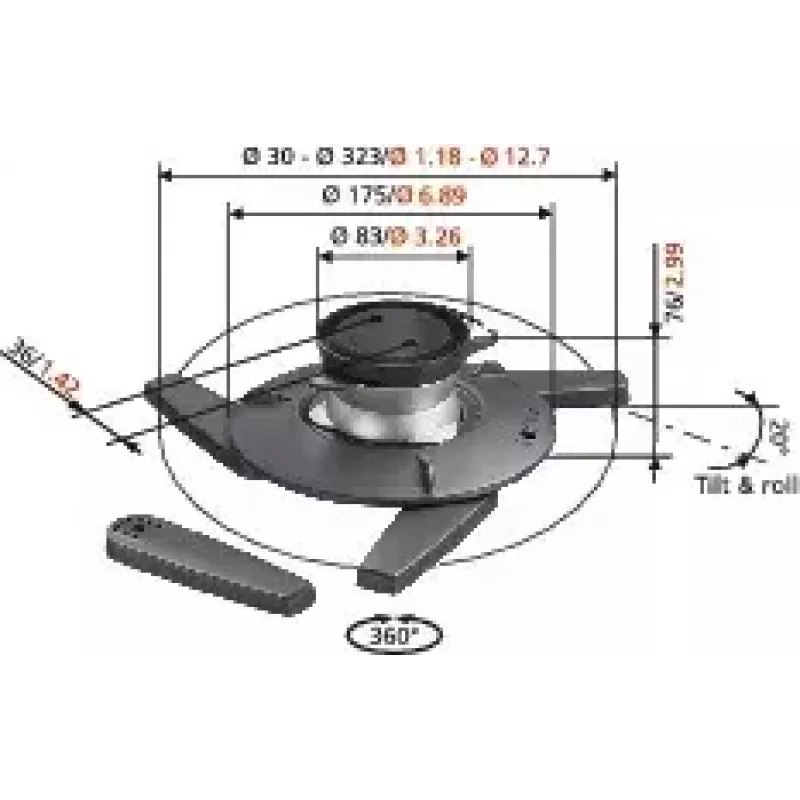

• Minimum/maximum distance to ceiling: 7.6 cm
• Includes universal projector connector and ceiling cover

How to use

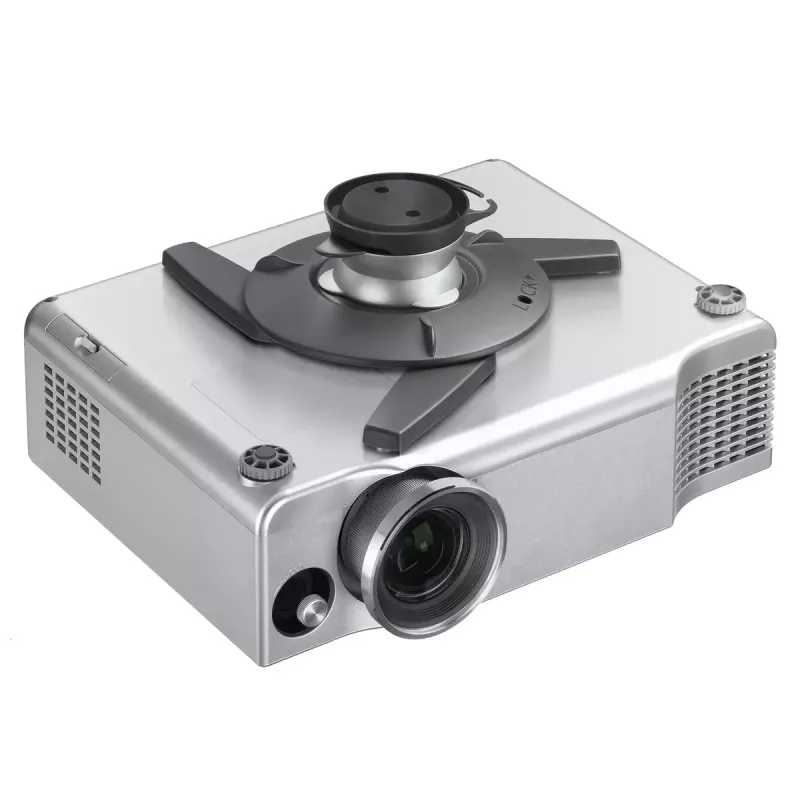

Attach the universal projector connector to the projector according to the connector instructions, fix the ceiling plate to a suitable ceiling location and secure the mount. Use the spherical hinge joint to position the projector and engage the Adjust & Secure feature to lock the position. Route cables through the CIS® Cable Inlay System and fit the ceiling cover to hide the installation when finished.

Recommendations

Install the mount on a load-bearing ceiling and verify that the selected projector is within the 10 kg limit. For optimal image alignment, fine-tune tilt, turn and roll before final tightening and conceal cables using the Cable Inlay System. Use appropriate tools and, if unsure, consult a qualified installer.
