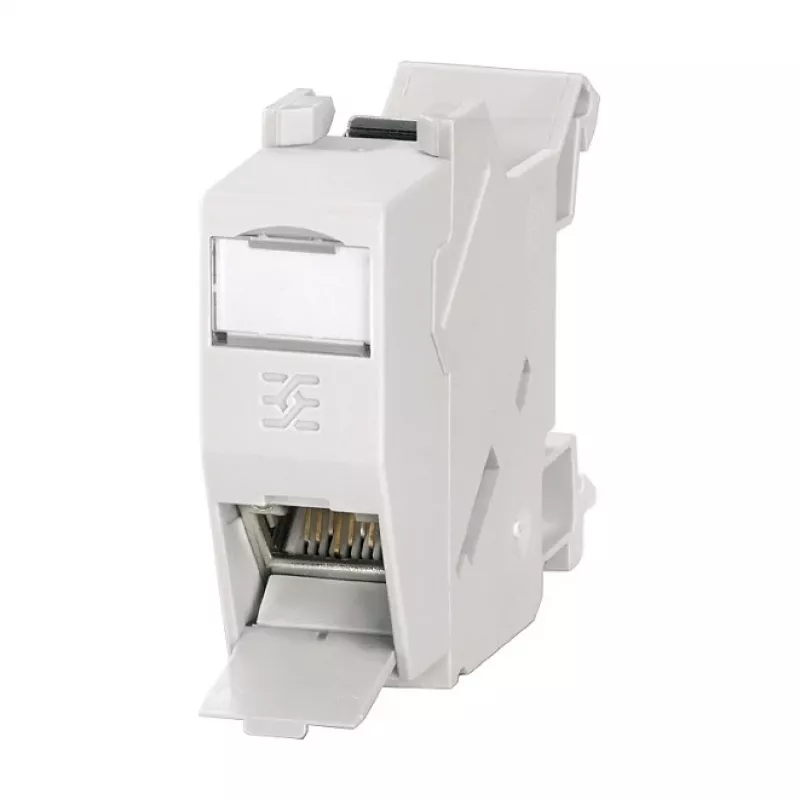

Weidmüller IE-XM-RJ45/IDC RJ45 Cat.6A kenttäasennettava liitin, harmaa

The Weidmüller IE-XM-RJ45/IDC is a high-performance, field-attachable RJ45 connector designed for industrial Ethernet applications. It supports Cat.6A standards, enabling data transfer rates up to 10 Gbit/s, and features an IDC termination method for quick, tool-free installation. The shielded design (STP/FTP) ensures reliable signal integrity in noisy environments.

Advantages

Tool-free assembly reduces installation time and effort. The robust housing material (PBT/PC, UL94 V-0) provides durability and flame retardancy. Gold-plated contacts guarantee excellent conductivity and corrosion resistance. Wide operating temperature range (-25 to 70 °C) makes it suitable for harsh industrial settings.

Suitable for

• Industrial Ethernet networks requiring Cat.6A performance
• Field installation where quick and reliable connector termination is needed
• Applications with high electromagnetic interference (EMI) requiring shielded connectors

Key specifications

• Connector Type: RJ45
• Ethernet Category: Cat.6A
• Termination Method: IDC (Insulation Displacement Connector)
• Shielding: Shielded (STP/FTP)
• Data Transfer Rate: 10 Gbit/s
• Operating Temperature Range: -25 – 70 °C
• Color: Grey
• IP Rating: IP20
• Wire Gauge Support (Solid): AWG 22 - AWG 26
• Wire Gauge Support (Stranded): AWG 22 - AWG 26
• Number of Contacts: 8
• Assembly Type: Field-attachable, Tool-free
• Housing Material: PBT / PC, UL94 V-0
• Contact Plating: Gold
• Standard Compliance: IEC 60603-7-51
• Application: Industrial Ethernet
• Number of Ports: 1
• Cable Diameter Range: 4.5 - 8 mm

Recommendations

For optimal performance, use with Cat.6A or higher cabling and ensure proper cable preparation. The connector is ideal for on-site termination in control cabinets, machinery, and automation systems.
