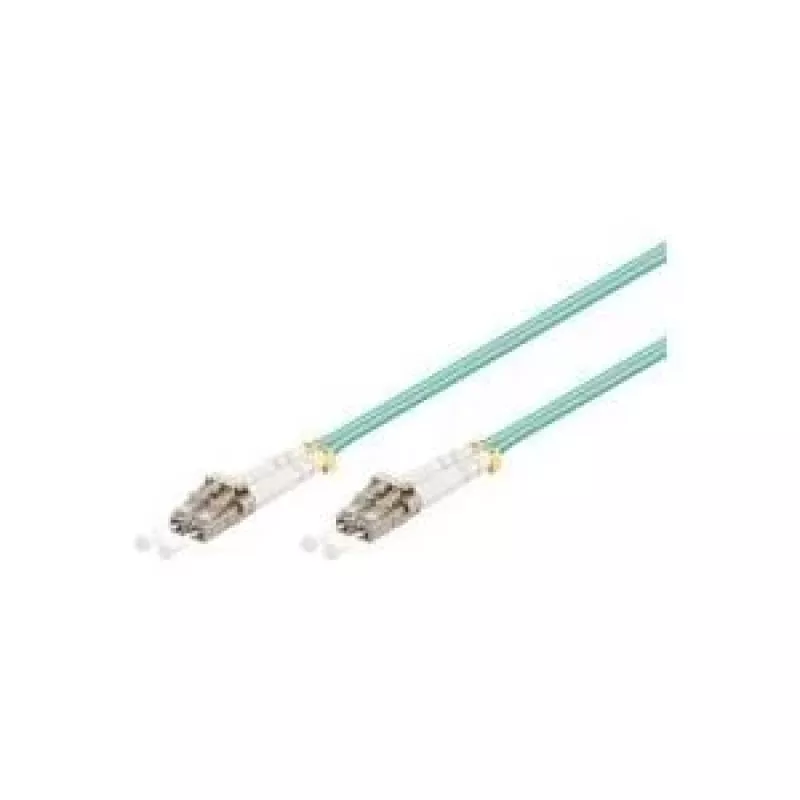

Wentronic 10 m LC-LC OM3 duplex monimuotokuitu-verkkokaapeli, sininen 95755

For high-density fiber installations where every decibel counts, this 10-meter OM3 duplex patch cable from Wentronic delivers a dependable LC-to-LC link with the headroom for 10G, 40G, and even 100G Ethernet over short backbone runs. The blue jacket makes port identification quick in crowded racks, while the UPC-polished ceramic ferrules keep return loss low and signal integrity high.

Highlights

• OM3 multimode fiber with 50/125 µm core/cladding for laser-optimized transmission.
• Duplex LC connectors on both ends, male-to-male, with UPC polish.
• Supports 10 Gbps up to 300 m, 40 Gbps up to 100 m, and 100 Gbps up to 70 m.
• Blue LSZH jacket for easy identification and low smoke in case of fire.
• 10-meter length ideal for patching between distribution panels and active equipment.

In daily use

This patch cable is built for data centers, enterprise LAN backbones, and storage area networks. The duplex design pairs two fibers in a single zip-cord jacket, so you can connect transceivers like SFP+, QSFP+, SFP28, and QSFP28 without managing separate strands. The OM3 fiber is optimized for 850 nm VCSEL sources, ensuring clean eye patterns and minimal modal dispersion. Attenuation stays below 3.5 dB/km at 850 nm and 1.5 dB/km at 1300 nm, so even full 10-meter runs add negligible loss. The blue color stands out among grey and aqua cables, reducing the chance of pulling the wrong link during maintenance.

Full specifications

• Product type: Fiber optic patch cable
• Fiber type: Multimode, OM3
• Cable length: 10 m
• Connector 1: LC male, UPC polish
• Connector 2: LC male, UPC polish
• Cable structure: Duplex (zip-cord)
• Jacket color: Blue
• Core diameter: 50 µm
• Cladding diameter: 125 µm
• Supported data rates: 10 Gbps, 40 Gbps, 100 Gbps
• Max distance 10GbE: 300 m
• Max distance 40GbE: 100 m
• Max distance 100GbE: 70 m
• Attenuation @ 850 nm: < 3.5 dB/km
• Attenuation @ 1300 nm: < 1.5 dB/km
• Application: Data center, LAN, SAN, enterprise networks
• Compatibility: SFP+, QSFP+, SFP28, QSFP28 transceivers

Final note

When uptime depends on a clean fiber link, this Wentronic OM3 patch cable gives you the performance and visibility you need without overengineering the budget.
