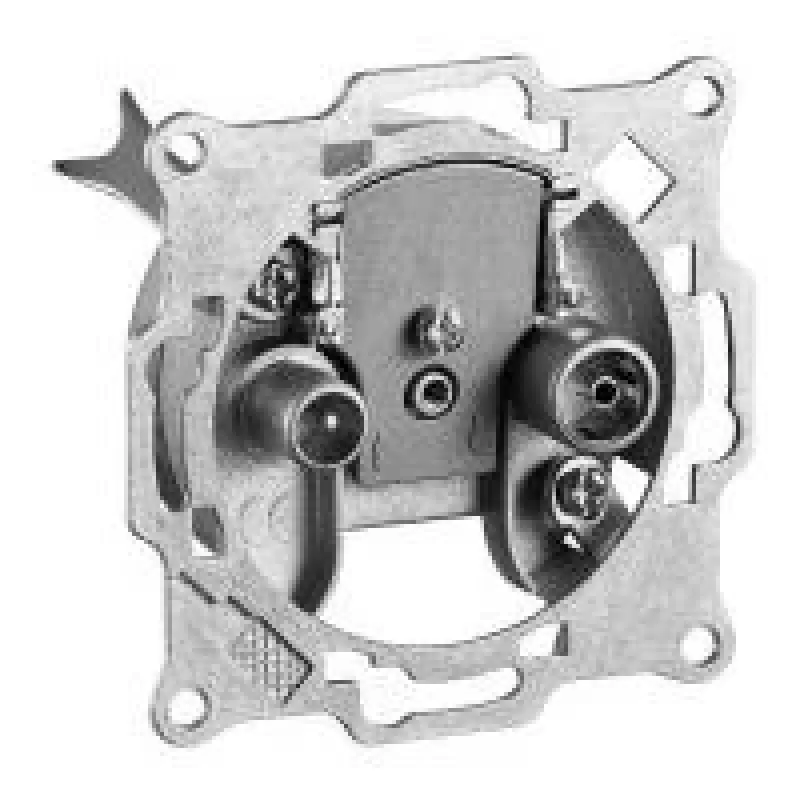

Wentronic Goobay 2-reikäinen antenniläpivientirasia - 10 dB läpivaimennus (67044)

Antenna signals often weaken when distributed to multiple rooms, leaving TVs and radios with poor reception. This pass-through socket solves that by providing a reliable connection point with controlled attenuation, ensuring stable signal levels for both television and radio.

Who is it for

Ideal for installers and homeowners setting up antenna distribution systems in residential or commercial buildings. It suits anyone needing a flush-mounted wall socket that passes the signal through to the next outlet while tapping off for local devices.

Main features

• Two outputs: IEC male for TV and IEC female for radio
• Pass-through design with 10 dB attenuation on the loop-through
• Tap attenuation: 10 dB for both TV and radio outputs
• Wide frequency range 5-862 MHz, compatible with DVB-T, DVB-C and FM
• 75 Ohm impedance and shielding factor >75 dB for clean signals
• Flush-mount installation in standard wall boxes
• White housing with metal chassis and plastic cover

Specifications

• Socket type: Antenna wall socket (pass-through)
• Number of outputs: 2
• Output 1 connector: IEC male (TV)
• Output 2 connector: IEC female (Radio)
• Input connector: Coaxial male
• Pass-through connector: Coaxial female
• Pass-through attenuation: 10 dB
• Tap attenuation (TV): 10 dB
• Tap attenuation (Radio): 10 dB
• Frequency range: 5-862 MHz
• Impedance: 75 Ohm
• Shielding factor: >75 dB
• Mounting type: Flush-mount
• DC pass-through: No
• Suitable for: DVB-T, DVB-C, FM Radio
• Housing material: Metal chassis, plastic cover
• Colour: White

Tips

For best results, ensure the incoming coaxial cable is properly terminated and the socket is mounted in a standard flush-mount box. Use high-quality coaxial cables to maintain signal integrity.
