WENTRONIC Goobay 59651 OS2 yksimuotokuitu-patchkaapeli SC/APC LC/UPC, 5 m, keltainen, LSZH

Experience ultra-low insertion loss of ≤0.3 dB and a return loss of ≥60 dB on the SC/APC connector with this 5-meter OS2 single-mode fiber optic patch cable. Engineered for FTTH deployments, it delivers reliable, high-bandwidth connectivity with a 9/125 µm core/cladding and a durable yellow LSZH jacket.

Overview

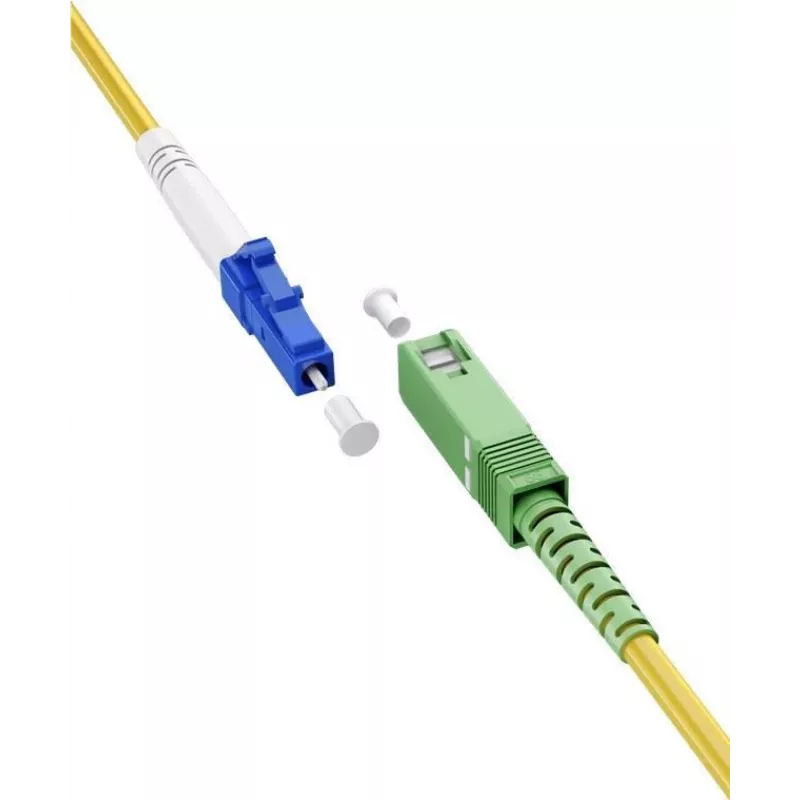

The WENTRONIC Goobay 59651 is a simplex fiber optic patch cable featuring an SC/APC connector on one end and an LC/UPC connector on the other. It is built with OS2 single-mode fiber, optimized for wavelengths of 1310 nm and 1550 nm, with attenuation of ≤0.4 dB/km and ≤0.3 dB/km respectively. The cable's yellow LSZH jacket ensures low smoke and halogen-free performance, making it safe for indoor installations.

What stands out

• SC/APC to LC/UPC connectors for mixed polish applications
• OS2 single-mode fiber for long-distance, high-speed data transmission
• Low insertion loss (≤0.3 dB) and high return loss (≥60 dB on APC)
• LSZH jacket for enhanced fire safety
• 5-meter length ideal for FTTH and data center patching

Technical details

• Fiber type: OS2 single-mode, 9/125 µm
• Connector A: SC/APC (green)
• Connector B: LC/UPC (blue)
• Cable length: 5 m
• Jacket color: Yellow
• Jacket material: LSZH
• Cable diameter: 3.0 mm
• Insertion loss: ≤0.3 dB
• Return loss: ≥60 dB (SC/APC), ≥50 dB (LC/UPC)
• Attenuation: ≤0.4 dB/km @ 1310 nm, ≤0.3 dB/km @ 1550 nm
• Application: FTTH, telecom networks, data centers

Our verdict

A dependable, high-performance fiber patch cable that meets the demands of modern fiber optic networks, offering excellent optical characteristics and a safe, durable construction.
