Peitelevy Keystone-liittimien asennukseen Goobay 95902

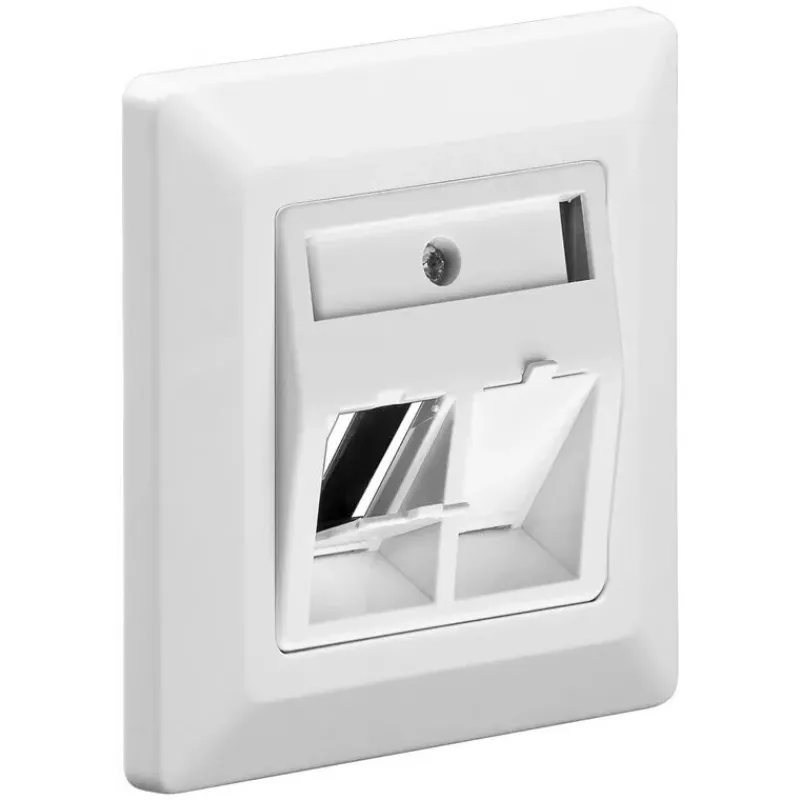

The Goobay 95902 faceplate is a compact white panel designed to hold up to two RJ45 keystone snap-in modules. Compatible with standard 14.9 × 17.0 mm keystone module pitch, this faceplate provides a tidy, interchangeable mounting solution for network connectors and other keystone-compatible jacks. It is RoHS certified and supplied as a single unit with dimensions of 80 mm (width) × 15.8 mm (depth).

Advantages

The faceplate accepts two keystone snap-in modules, enabling flexible combinations of RJ45 jacks or other keystone connectors. Its standardised aperture spacing supports universal interchangeability of modules, simplifying installation and future upgrades. The compact white design integrates discreetly into wall plates and patch panels, while RoHS certification confirms compliance with environmental restriction standards.

Suitable for

• Mounting 2× RJ45 keystone jack modules (Cat5–Cat6A compatible modules)
• Housing mixed keystone connectors such as USB, HDMI, or coaxial module inserts
• Home or office network wall plates and small patch panels

Key specifications

• Model: Goobay / WENTRONIC 95902
• Compatible module pitch: 14.9 × 17.0 mm (keystone snap-in)
• Capacity: 2 keystone modules (2× RJ45)
• Dimensions: 80 mm (width) × 15.8 mm (depth)
• Colour: White
• Certifications: RoHS compliant
• Package: 1 faceplate per pack

How to use

Insert compatible keystone snap-in modules into the faceplate openings by aligning each module with the 14.9 × 17.0 mm aperture and pressing until the snap-in latch engages. Secure the faceplate to the wall box or surface-mounted box following the installation screws or clips provided by the mounting frame. After mounting, connect the RJ45 keystone jacks to the network cabling and verify connectivity using appropriate testing tools.

Recommendations

Use only keystone modules that conform to the standard 14.9 × 17.0 mm snap-in dimensions. For Cat6A performance, install Cat6A-rated RJ45 keystone jacks and follow recommended cable termination and testing procedures to ensure signal integrity.
