Ympärisäteilevä antenni Poynting A-XPOL-0001-V2-41 4 dBi SMA

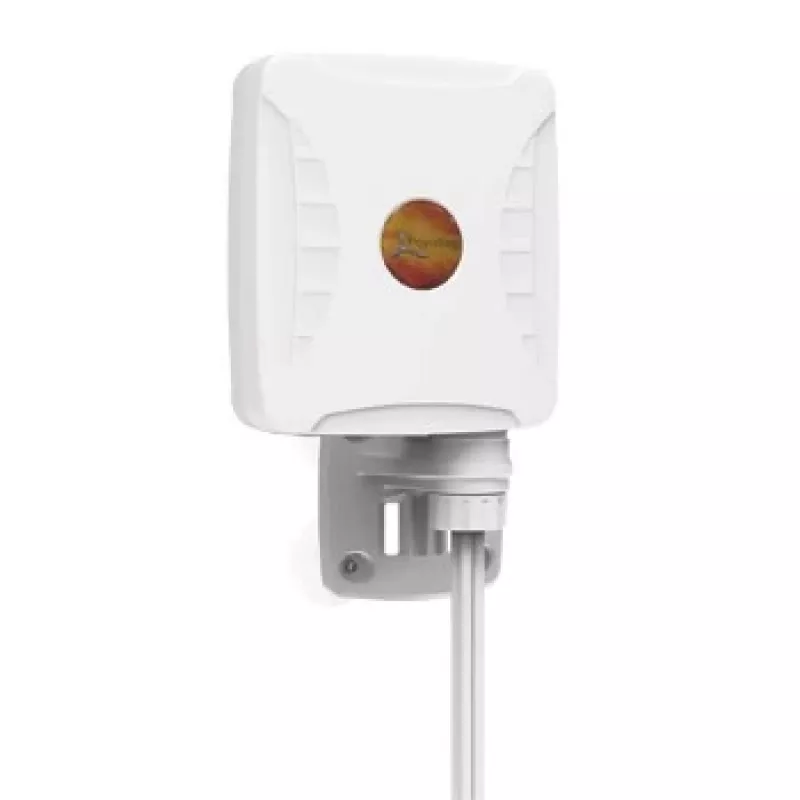

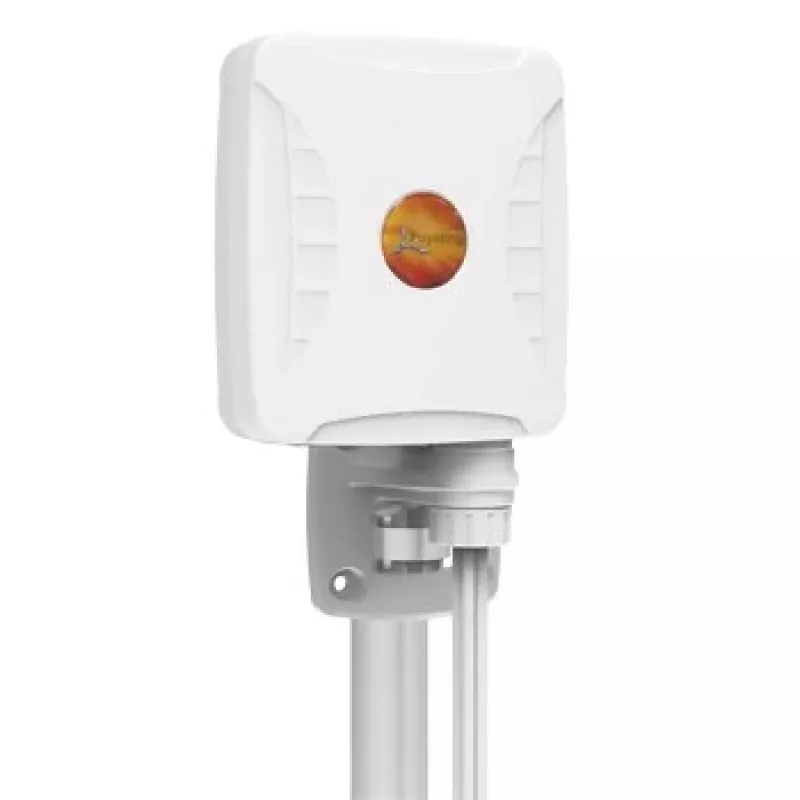

The Poynting A-XPOL-0001-V2-41 (XPOL-1-5G V2) is an omni-directional, cross-polarised 2x2 MIMO cellular antenna with a peak gain of 4 dBi. Redesigned from the previous generation, this V2 model covers multiple mobile bands including 617–960 MHz, 1700–2170 MHz, 2300–2700 MHz and 3400–3800 MHz, and is suitable for 2G, 3G, 4G and 5G deployments. The antenna features an all-new weatherproof enclosure with IP65 ingress protection, a male SMA connector and compact dimensions for flexible installation in urban, rural and commercial environments.

Advantages

The antenna provides stable omni-directional radiation patterns and controlled cross-polarisation to improve link reliability and MIMO performance. Broad multi-band coverage, including the low 617 MHz band and the 3400–3800 MHz 5G range, allows a single antenna to serve many network deployments. Durable, dust- and vandal-resistant housing with IP65 rating supports outdoor use in harsh conditions. The included male SMA connector and compact form factor simplify installations on poles, masts and building rooftops.

Suitable for

• Fixed wireless broadband and cellular signal reception
• Rural and urban coverage extension for 2G/3G/4G/5G networks
• Commercial and agricultural sites requiring robust outdoor antennas
• MIMO applications where cross-polarised 2x2 reception is needed

Key specifications

• Frequency range: 617–960 MHz, 1700–2170 MHz, 2300–2700 MHz, 3400–3800 MHz
• Peak gain: 4 dBi
• Polarisation: Cross-polarised, 2x2 MIMO
• Connector: Male SMA
• Ingress protection: IP65
• Weight: 1.24 kg
• Colour: White

How to use

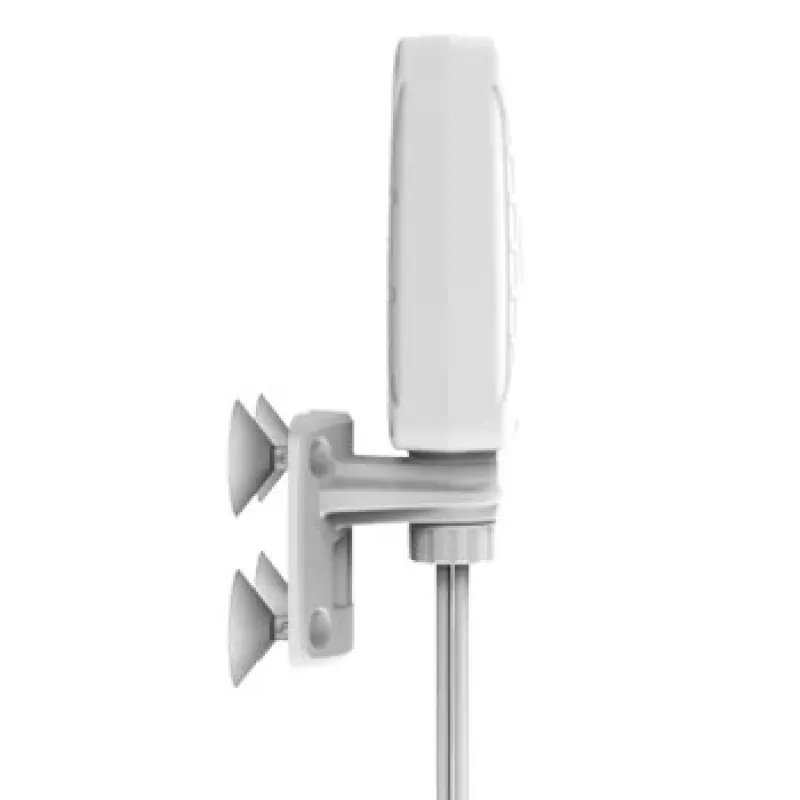

Mount the antenna on a mast, pole or rooftop at a height and location with minimal obstructions to maximize omni-directional coverage. Connect the antenna to your modem or router using the male SMA connector and appropriate coaxial cable and adapters if required. Aligning is not necessary due to the omni-directional pattern, but ensure secure mechanical fastening and correct cable routing to prevent water ingress and mechanical strain.

Recommendations

For optimal performance, install the antenna as high as practical and maintain a clear line-of-sight to nearby base stations. Use quality low-loss coaxial cable and properly rated weatherproof connectors. Periodically inspect mounting hardware and seals to preserve IP65 protection and reliable long-term outdoor operation.
