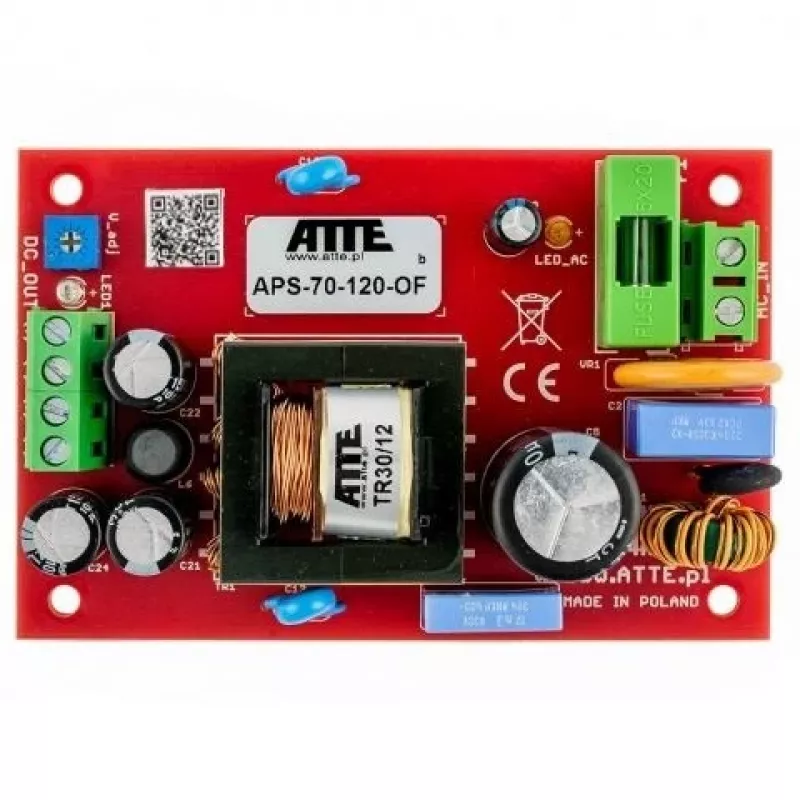

AC-sovitin SMPS 12V 6A 72W ATTE APS-70-120-OF

The ATTE APS-70-120-OF is a 12V 6A 72W SMPS power supply designed to provide stable DC voltage for demanding electronic devices such as CCTV cameras and recorders. Its open frame construction allows for integration into any enclosure, with mounting holes at 10.8mm pitch for easy installation.

Key features

• Complete power solution for CCTV devices in a compact housing
• Low heat generation inside the housing due to high efficiency
• Resistant to short circuits and overloads
• Resistant to surges from both the 230 VAC mains and the power supply output
• Easy mounting in enclosures with 10.8 mm pitch holes

Specifications

• Brand: ATTE
• MPN: APS-70-120-OF
• Output voltage: 11.2 ... 14.2 VDC (adjustable via V_adj potentiometer)
• Output current: 6A
• Power: 72W
• Efficiency: 90% @60W
• Input voltage: 180 ... 240 VAC
• Input protection: Fuse T3.15A
• Short circuit protection: 9A (requires restart of the power supply)
• Overload protection: 9A
• Operating temperature: -20 ... +40°C
• Housing construction: None - module for integration
• Mounting: Snap-on distance pins, mounting holes at 10.8 mm pitch
• Dimensions: 100 x 65 x 40 mm
• Weight: 0.11 kg
