ACT 140 metrin yksimuotokaapeli 9/125 OS2 sisä-/ulkokaapeli 24 kuitua LC-liittimillä

What are pre-terminated fiber optic cables?
ACT pre-terminated cables are ready-to-use fiber optic installation cables with attached connectors. Pre-terminated fiber optic cables are used to connect different rooms, floors or buildings.

The advantage of using pre-terminated cables is that no investment is needed in tools or test equipment, since the connectors are pre-set and each pre-terminated cable is individually tested after production and provided with a test report.

What are pre-terminated cables used for?
With ACT pre-terminated cables you can easily install a fiber optic cable without the use of tools. Ideal for the system integrator, installer or network administrator who wants to build a high quality and reliable network.

What makes ACT pre-terminated cables so universal?
ACT pre-terminated cables can be used both indoors and outdoors and are suitable for horizontal and vertical use. This means that ACT pre-terminated cables are suitable for several applications:

- Connecting two buildings on a site.
- Installing a cable between different floors.
- Connecting different rooms in a building.

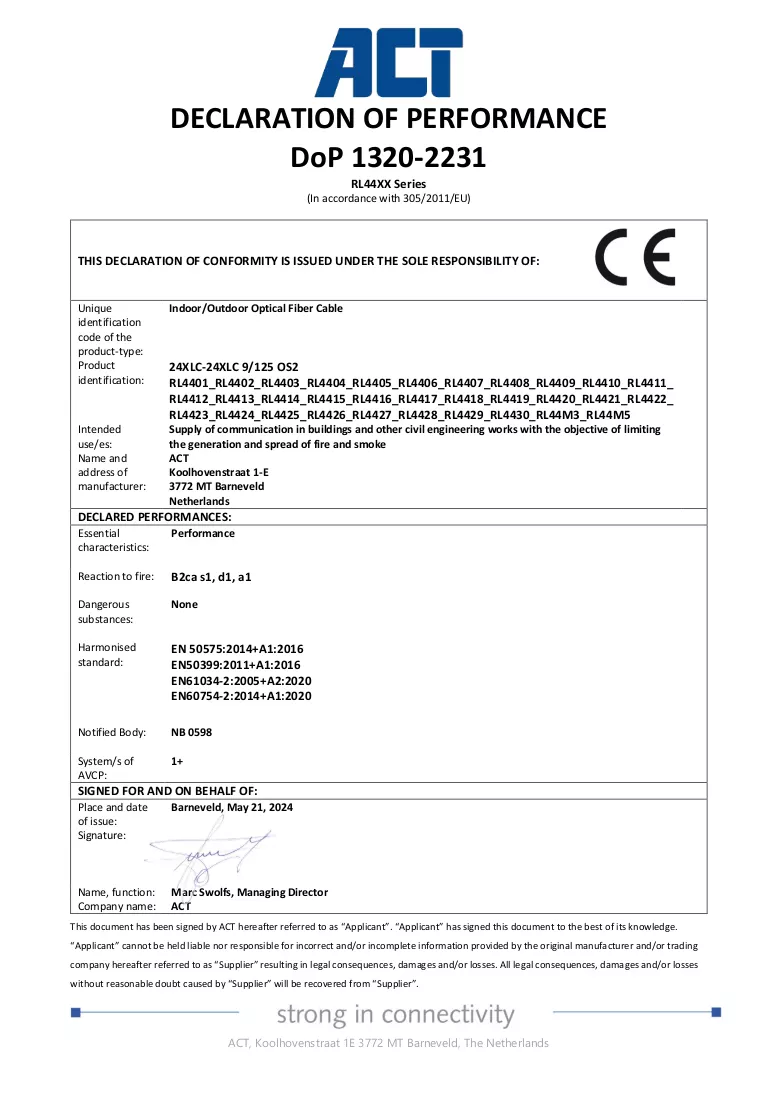

ACT pre-terminated cables comply with the B2ca Euroclass of the European Construction Products Regulation (CPR).

Why choose ACT pre-terminated fiber optic cables?
ACT pre-terminated cables are high quality cables. If you choose ACT pre-terminated cables you never have to worry about the quality of your cabling.

ACT pre-terminated cables have excellent optical features. With an average attenuation of 0.1dB and a maximum attenuation of 0.15dB they belong to the top of the market. This means extra leeway in optical budgets and this makes the cables future-proof.

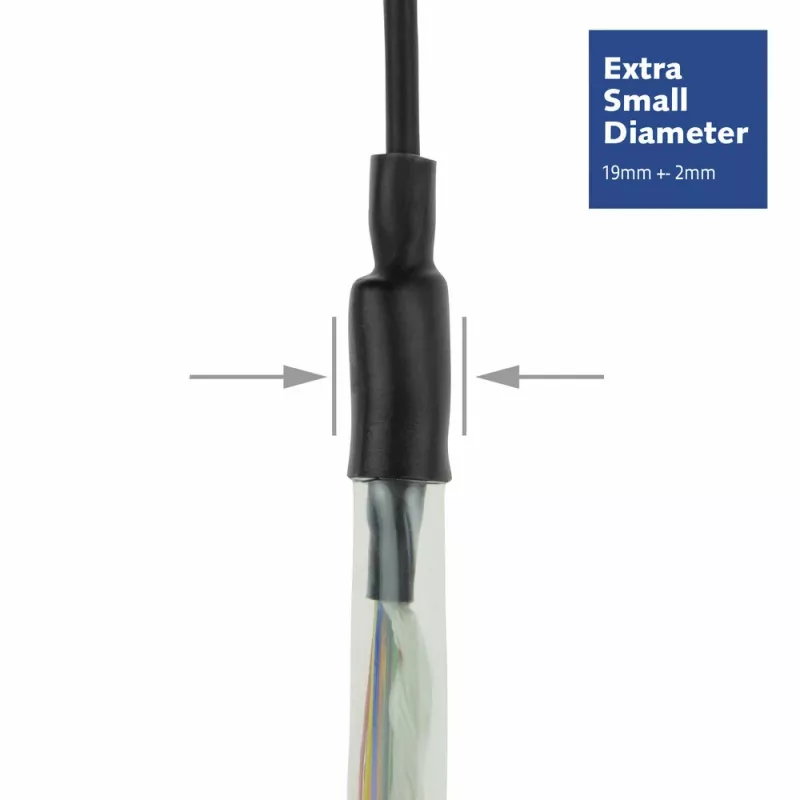

The high-quality construction of ACT pre-terminated cables ensures maximum protection and ease of use. During installation, the vulnerable connectors and fanout cables are optimally protected by a transparent tube on both sides. Due to the robust construction and drawbar eye, the whole can handle up to 350N pulling force. In addition, the protective hose is only 18mm in diameter, making the cable easy to install and it fits through tubes.

Correct installation and correct use of the ACT pre-terminated cables is of great importance. Information about installation and use can easily be found by scanning the QR code on the cable.

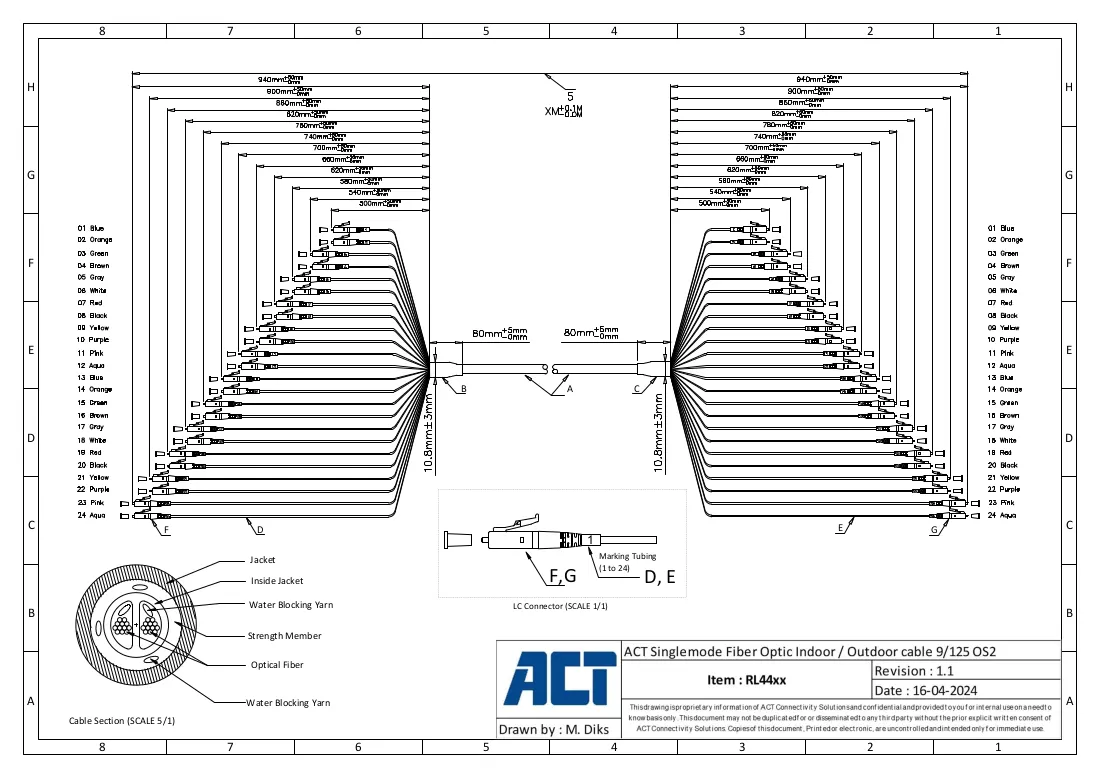

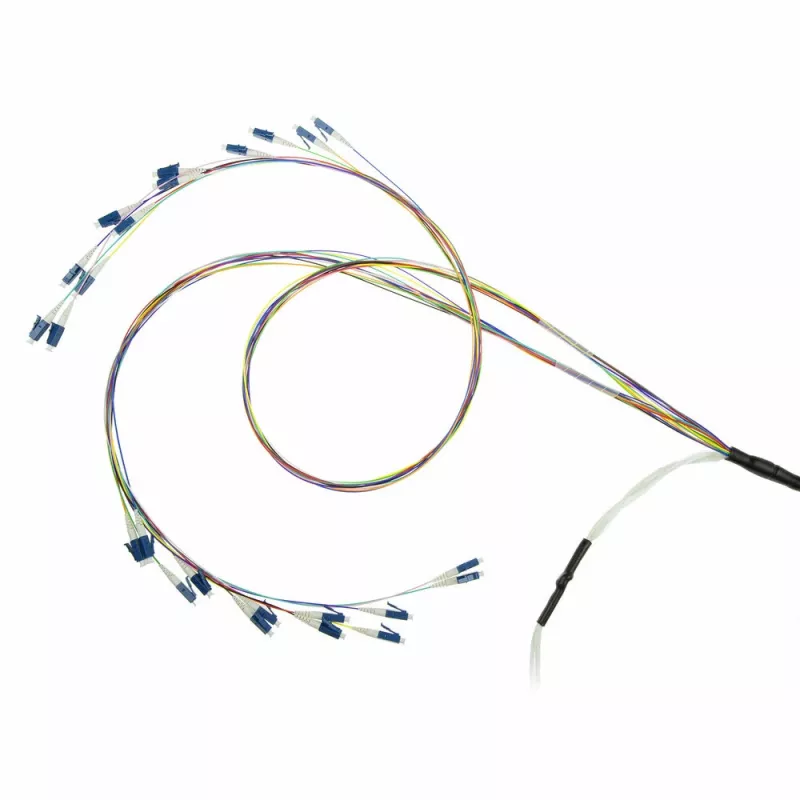

ACT 140 meters Singlemode 9/125 OS2 indoor/outdoor cable 24 fibers with LC connectors. Cable length: 140 m, Cable type: LC, Fibre optic type: OS2, Connector 1: 24x LC, Connector 2: 24x LC, Core diameter: 9 µm

How to use

Route the pre-terminated ACT cable between the chosen connection points, ensuring the protective tube remains intact over the connector and fanout areas. Use the drawbar eye for controlled pulling and avoid exceeding the 350 N maximum pulling force. Once in place, remove the protective caps from the LC connectors and plug them into the appropriate LC ports on patch panels, switches, or transceivers. No field termination is required; verify connections with the supplied test report or with your site acceptance testing procedures if additional confirmation is needed.

Recommendations

Inspect the protective tube and connector caps before installation, follow the cable bend-radius limits from your infrastructure guidelines, and scan the QR code on the cable for specific installation instructions and the individual test report provided with the product.
