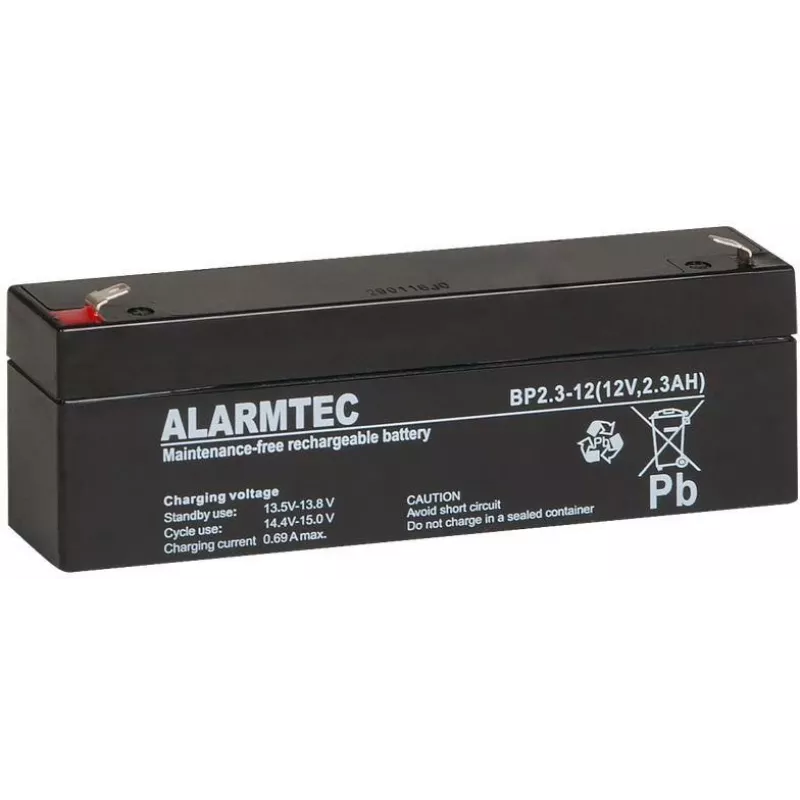

ALARMTEC BP 2,3-12 AGM-akku 12V 2,3Ah

The ALARMTEC BP 2,3-12 is a high-quality sealed lead-acid (SLA) AGM battery designed for reliable backup power in alarm systems, UPS, emergency lighting, and medical equipment. With a nominal voltage of 12V and a capacity of 2.3Ah (C20), this maintenance-free battery offers leak-proof construction and a design life of 3-5 years.

Advantages

AGM technology ensures low internal resistance, high discharge current capability, and excellent performance in cyclic and standby applications. The battery is maintenance-free, leak-proof, and can be installed in various orientations. It features F1 (Faston 187) terminals for easy connection.

Suitable for

• Alarm systems
• UPS (Uninterruptible Power Supplies)
• Emergency lighting
• Medical equipment
• Security systems

Key specifications

• Battery Technology: AGM (Absorbent Glass Mat)
• Battery Type: Sealed Lead-Acid (SLA) / VRLA
• Nominal Voltage: 12 V
• Nominal Capacity (C20): 2.3 Ah
• Terminal Type: F1 (Faston 187)
• Design Life: 3-5 years (Eurobat classification)
• Internal Resistance: Approx. 60 mΩ (at 25°C)
• Max. Discharge Current (5 sec): 34.5 A
• Charging Voltage (Standby Use): 13.5 - 13.8 V (at 25°C)
• Charging Voltage (Cycle Use): 14.4 - 15.0 V (at 25°C)
• Operating Temperature (Discharge): -15°C to 50°C
• Operating Temperature (Charge): -15°C to 40°C
• Operating Temperature (Storage): -15°C to 40°C
• Self-Discharge Rate: Less than 3% per month (at 25°C)
• Maintenance: Maintenance-free
• Construction: Leak-proof, sealed
• Certifications: CE

Recommendations

This battery is ideal for standby power applications where reliability and long service life are required. Ensure proper charging voltage and temperature conditions for optimal performance.
