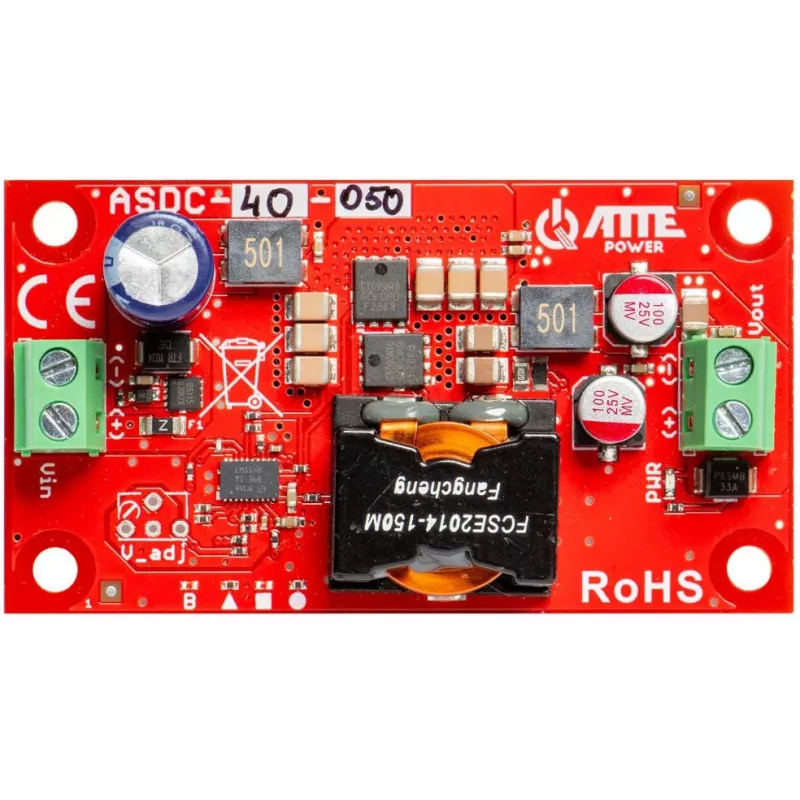

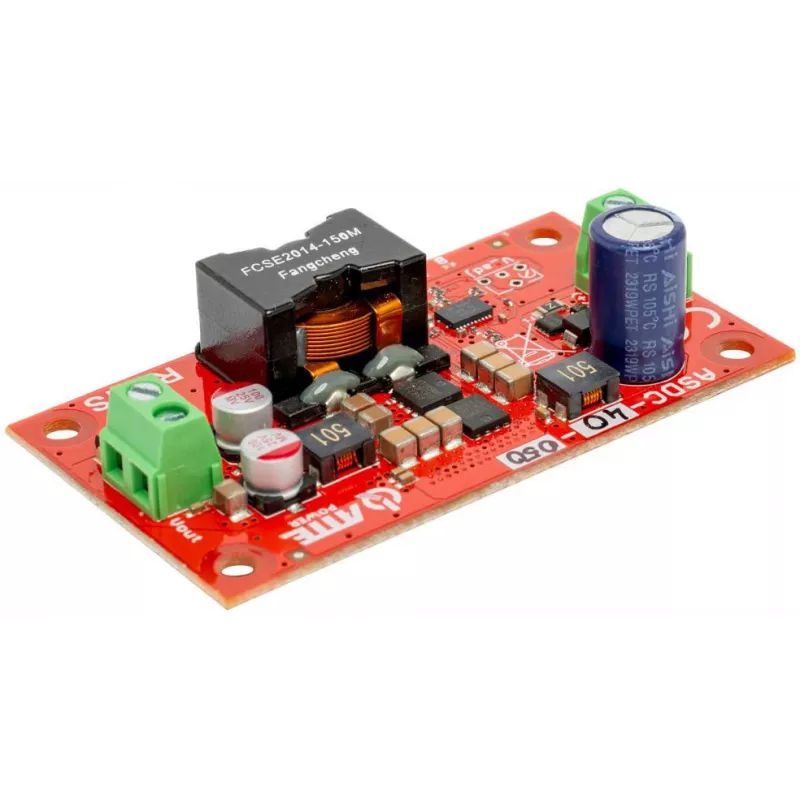

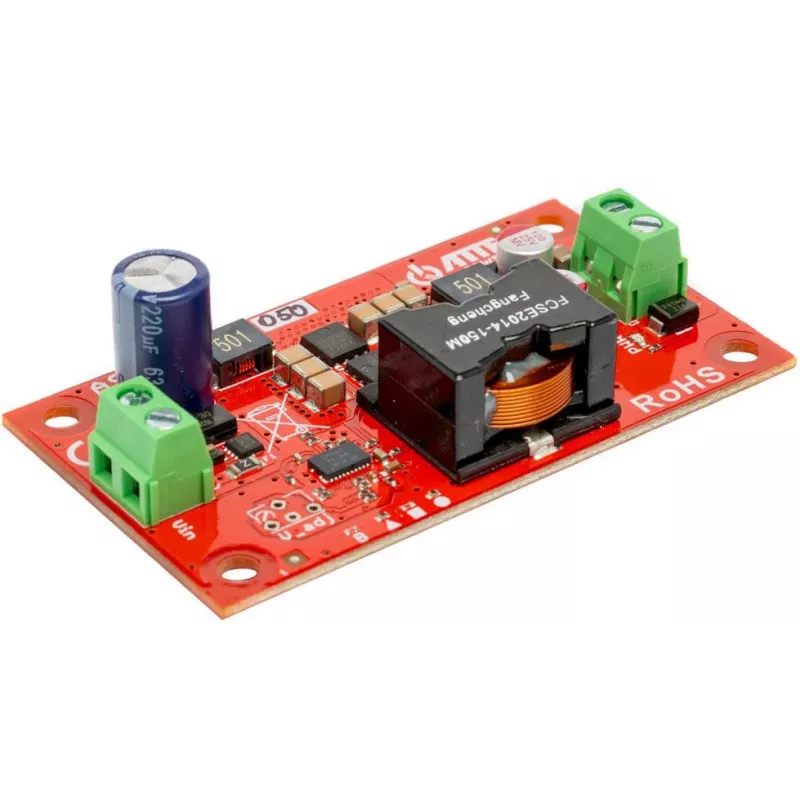

ATTE ASDC-40-050-OF DC/DC Step-Down -muunnin 40W 5V 8A

The ATTE ASDC-40-050-OF is a high-efficiency DC/DC step-down (buck) converter designed to reduce input voltages from 10-30V DC to a stable 5V DC output. With a maximum output current of 8A and power of 40W, this converter is ideal for industrial and automation applications where reliable voltage regulation is required. Its compact design supports both DIN rail and screw mounting, making it easy to integrate into existing systems.

Advantages

This converter offers exceptional efficiency of up to 92%, reducing energy loss and heat generation. It features comprehensive protection including short circuit, overload, overvoltage, and overheating protection, ensuring safe operation in demanding environments. The passive cooling design eliminates the need for fans, enhancing reliability and reducing maintenance.

Suitable for

• Industrial control systems
• Automation equipment
• LED lighting installations
• Battery-powered applications
• Any system requiring a stable 5V supply from a higher voltage source

Key specifications

• Input Voltage: 10-30V DC
• Output Voltage: 5V DC
• Maximum Output Current: 8A
• Maximum Output Power: 40W
• Efficiency: 92%
• Protection: SCP, OLP, OVP, OHP
• Operating Temperature: -25°C to +50°C
• Mounting: DIN Rail / Screw Mounting
• Connectors: Screw Terminals
• Cooling: Passive (Convection)
• Enclosure Material: High-impact plastic

Recommendations

For optimal performance, ensure the input voltage is within the specified range and the load does not exceed 40W. Use appropriate wire gauges for screw terminals and provide adequate ventilation for passive cooling.
