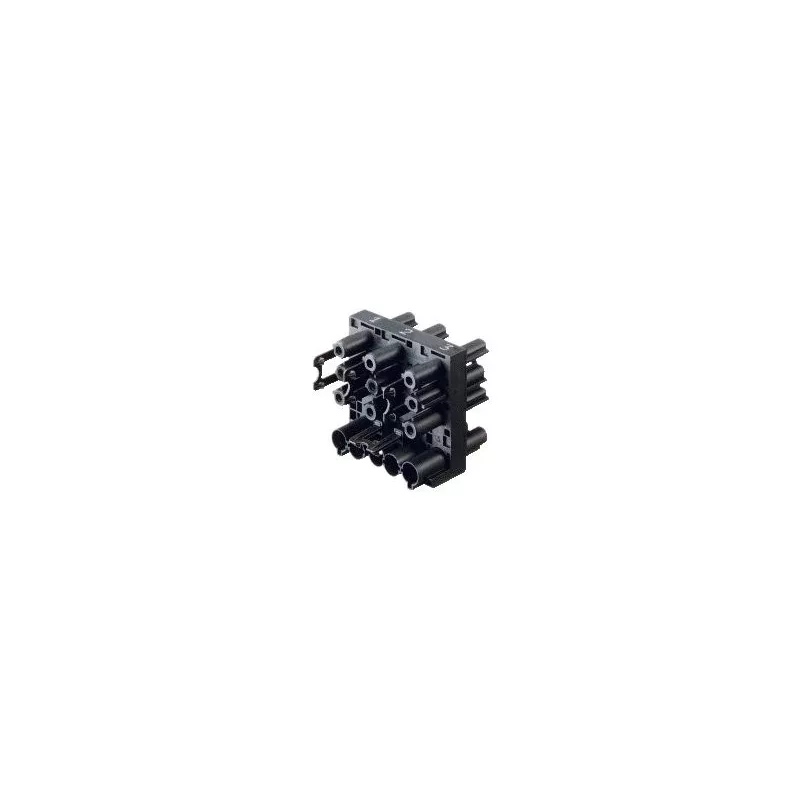

Bachmann GST18i3 virtaliitin, urosliitin, 3-napainen, ruuviliitäntä, musta

The Bachmann GST18i3 is a robust and reliable male power connector designed for field assembly in power distribution systems. With a 3-pole configuration and screw termination, it ensures secure and durable connections for a wide range of industrial and commercial applications. The connector is rated for 250 V AC and 16 A, making it suitable for demanding environments.

Advantages

Easy field assembly with screw connection, high current and voltage rating, robust polyamide housing with V-0 flammability rating, and IP20/IP40 protection for safe operation.

Suitable for

• Power distribution in industrial settings
• Commercial electrical installations
• Field-assembled cable systems

Key specifications

• Connector Type: GST18i3
• Gender: Male (Plug)
• Number of Poles: 3-pole
• Color: Black
• Rated Voltage: 250 V AC
• Rated Current: 16 A
• Termination Type: Screw connection
• Wire Cross-section (Solid): 0.75 - 2.5 mm²
• Wire Cross-section (Stranded): 0.75 - 2.5 mm²
• Cable Diameter Range: 6.5 - 10 mm
• Protection Class (Unmated): IP20
• Protection Class (Mated): IP40
• Housing Material: Polyamide (PA66)
• Flammability Rating: UL94 V-0
• Operating Temperature: -5 °C to +55 °C
• Approvals: VDE, UL, CSA
• Locking Mechanism: Mechanical (push-button)
• Series: GST18i3
• Mounting Type: Cable mount

Recommendations

For reliable power connections in demanding environments, the Bachmann GST18i3 offers excellent performance and ease of installation. Ideal for professionals seeking a durable and certified connector.
