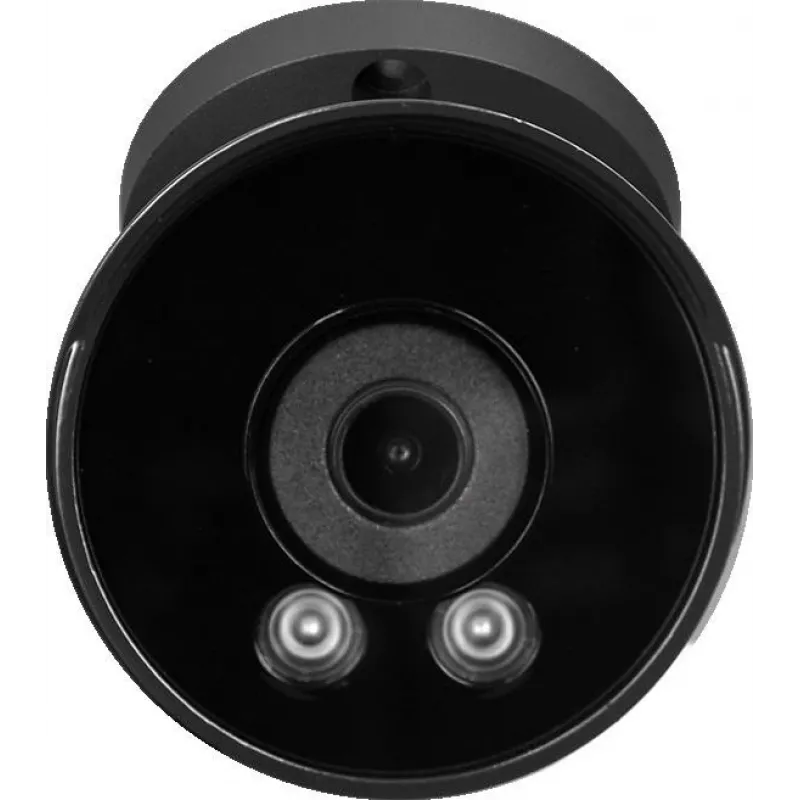

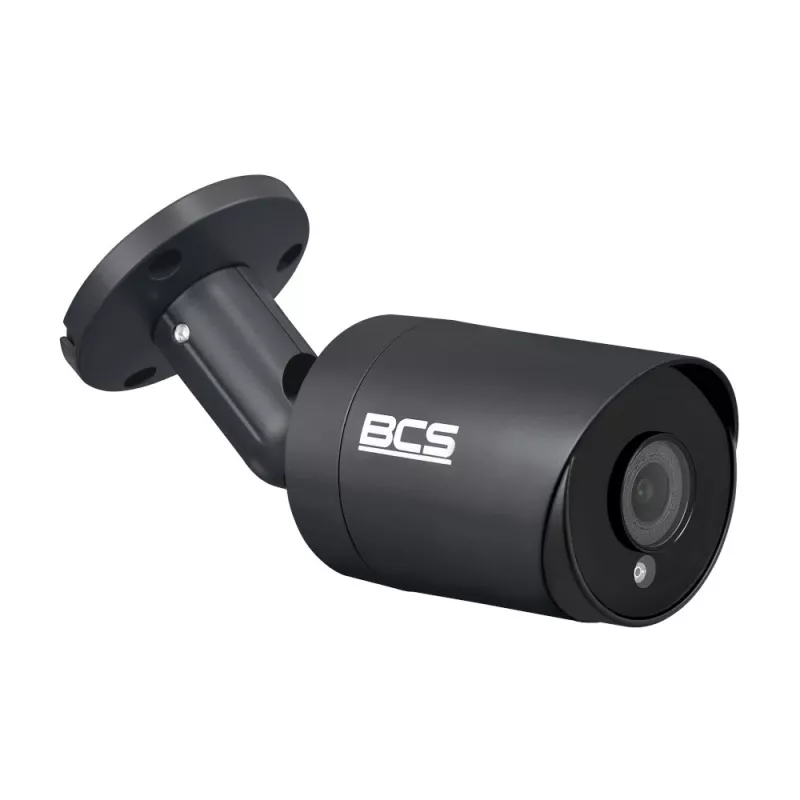

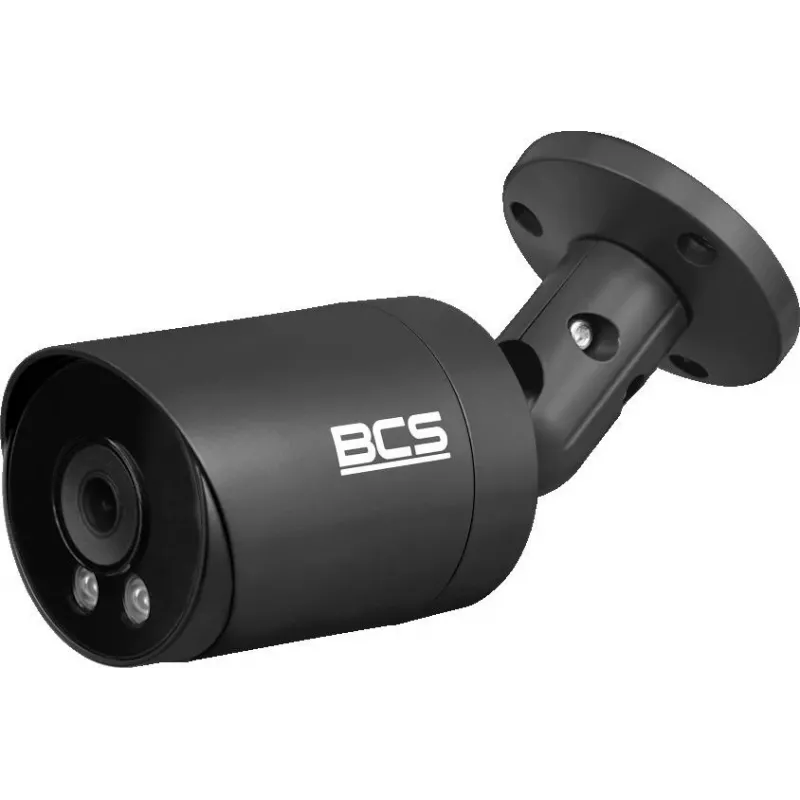

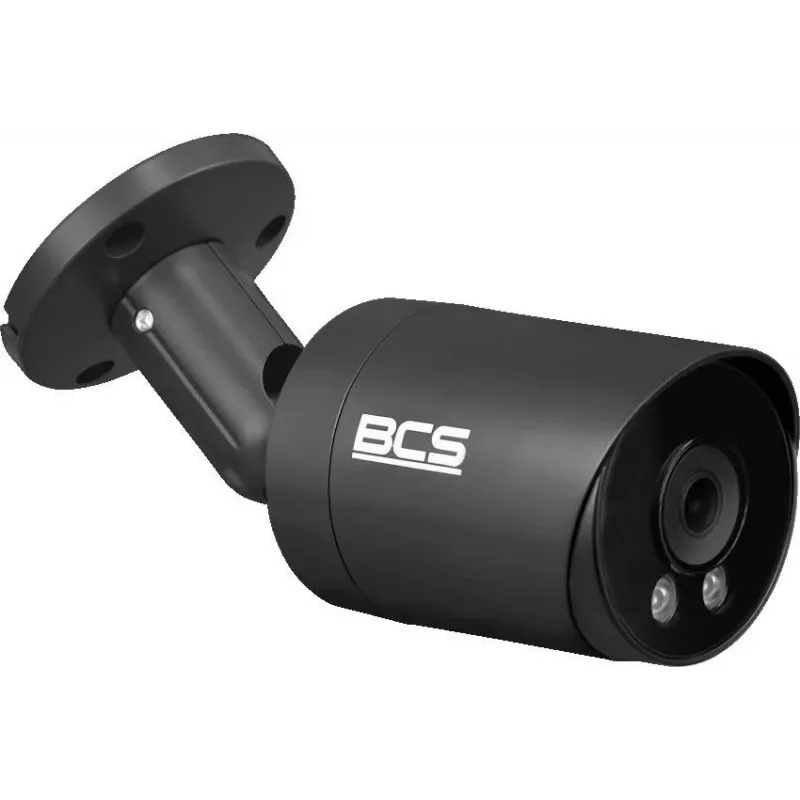

BCS Analog HD bullet-kamera 5MP, 40m IR, IP67 (BCS-TA15FR4-G)

The BCS BCS-TA15FR4-G is a robust analog HD bullet camera that delivers crisp 5-megapixel surveillance imagery for demanding security applications. Engineered for continuous outdoor operation, this camera combines high-resolution video quality with reliable day/night functionality.

Advantages

With its 1/2.8-inch CMOS sensor, the camera captures detailed footage at up to 2592x1944 resolution. The fixed 3.6mm F1.2 lens provides a wide field of view while the smart IR illumination ensures visibility up to 40 meters in complete darkness. The metal housing and IP67 rating guarantee protection against dust and water, making it ideal for harsh environments. The camera supports multiple video output standards (AHD, TVI, CVI, CVBS), ensuring compatibility with a wide range of DVRs and monitoring systems.

Suitable for

• Outdoor perimeter monitoring
• Parking lots
• Warehouses
• Retail shops
• Residential properties

Key specifications

• 1/2.8" CMOS sensor, 5MP resolution (2592x1944)
• AHD/TVI/CVI/CVBS switchable output
• 3.6mm fixed lens, F1.2 aperture
• Smart IR up to 40m
• 0.001 Lux min illumination (color), ICR day/night
• DWDR, BLC, HLC, 2D/3D DNR
• IP67, metal housing
• DC 12V, max 4W power consumption
• Operating temperature -30°C to +60°C

Recommendations

For optimal performance, use a regulated 12V DC power supply and a compatible analog HD DVR. Ensure the camera is properly grounded and avoid pointing it directly into bright light sources. Regular cleaning of the lens and housing will maintain image quality.
