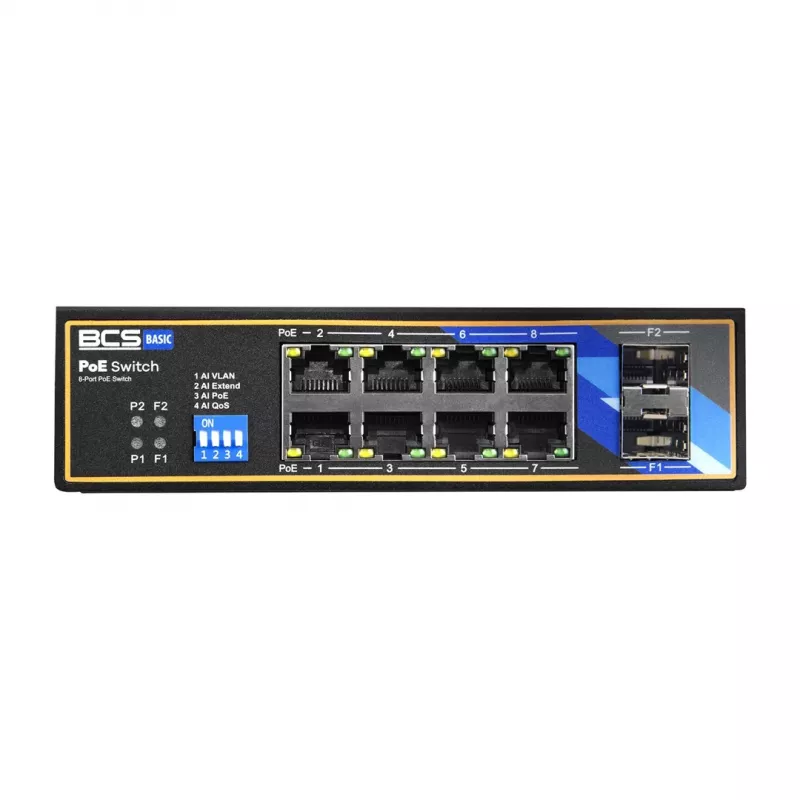

BCS BCS-B-ISP08G-2SFP teollinen hallitsematon kytkin, 8-porttinen Gigabit + 2 SFP, DIN-kisko

The BCS BCS-B-ISP08G-2SFP is a robust industrial unmanaged switch designed for reliable network connectivity in harsh environments. Featuring 8 Gigabit Ethernet ports and 2 SFP slots, it provides high-speed data transfer and flexible fiber uplinks. With an IP40 metal housing, wide operating temperature range, and redundant power input, this switch is ideal for industrial automation, surveillance, and outdoor installations.

Advantages

This switch offers exceptional durability and performance. Its fanless design ensures silent operation and low power consumption (<5W). The DIN-rail and wall mount options simplify installation in control cabinets. Redundant DC power input (12-55V) enhances reliability, while the 20 Gbps switching capacity and 9K jumbo frame support optimize network efficiency.

Suitable for

• Industrial Ethernet networks in factories and warehouses
• IP surveillance systems requiring PoE+ injectors or fiber backhaul
• Outdoor and roadside cabinets with extreme temperatures
• Transportation and energy sector applications

Key specifications

• 8 x 10/100/1000Base-T RJ45 ports
• 2 x 1000Base-X SFP slots
• Switching capacity: 20 Gbps
• Packet forwarding rate: 14.88 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 9K bytes
• Power input: DC 12-55V (redundant)
• Power consumption: <5W typical
• Operating temperature: -40°C to 75°C
• IP40 rated metal housing
• DIN-rail / wall mount

Recommendations

For optimal performance, use industrial-grade SFP modules and shielded CAT6 cables. Ensure proper grounding and ventilation. This switch is plug-and-play; no configuration required.
