BLUELAN NVIDIA MCP1600-C00A-NV -yhteensopiva Direct Attach -kaapeli, 100GBASE-CR4, QSFP28, 0,5 m, 30AWG, passiivikupari

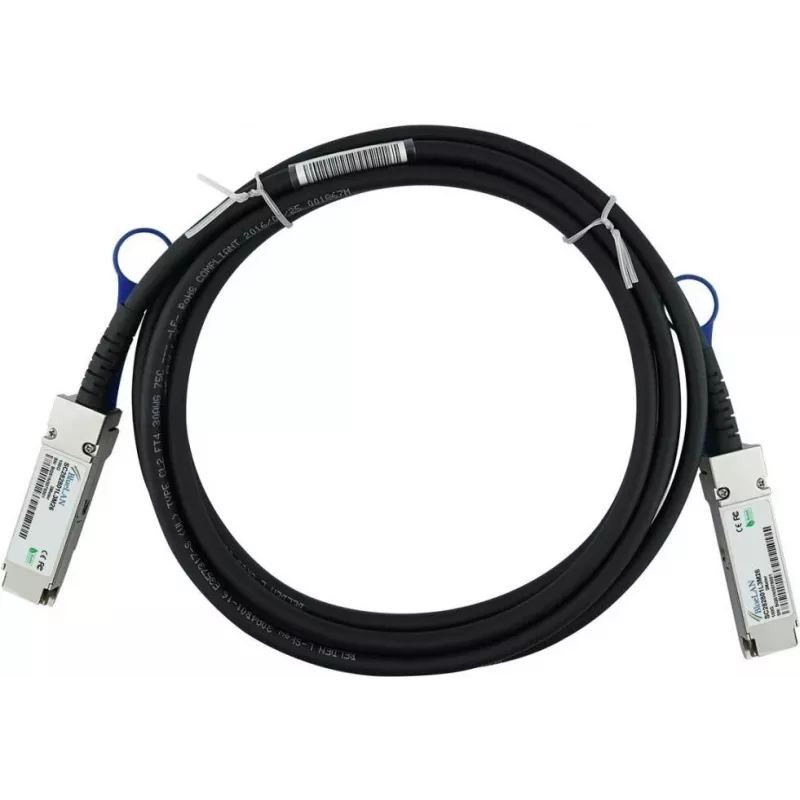

The BLUELAN MCP1600-C00A-BL is a high-performance passive copper Direct Attach Cable (DAC) designed for 100 Gigabit Ethernet and InfiniBand applications. It is fully compatible with NVIDIA MCP1600-C00A-NV and provides a cost-effective, low-power solution for short-range interconnects in data centers and high-performance computing environments.

Advantages

This DAC cable offers reliable 100G connectivity with minimal power consumption (<0.5W) and hot-swappable QSFP28 connectors. The 30AWG construction ensures flexibility while maintaining signal integrity over 0.5 meters. It is RoHS, CE, and FCC compliant, guaranteeing environmental and safety standards.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• 100GBASE-CR4 Ethernet networks
• InfiniBand EDR applications

Key specifications

• Cable Type: Direct Attach Cable (DAC), Passive Copper
• Data Rate: 100 Gbps (4x 25Gbps lanes)
• Standard: 100GBASE-CR4
• Connector: QSFP28 to QSFP28
• Length: 0.5 meters
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Power Consumption: <0.5W
• Voltage: 3.3V
• Hot Swappable: Yes
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, use with compatible NVIDIA or BLUELAN QSFP28 ports. Ensure proper cable management to avoid sharp bends. This cable is ideal for short-distance interconnects within racks.
