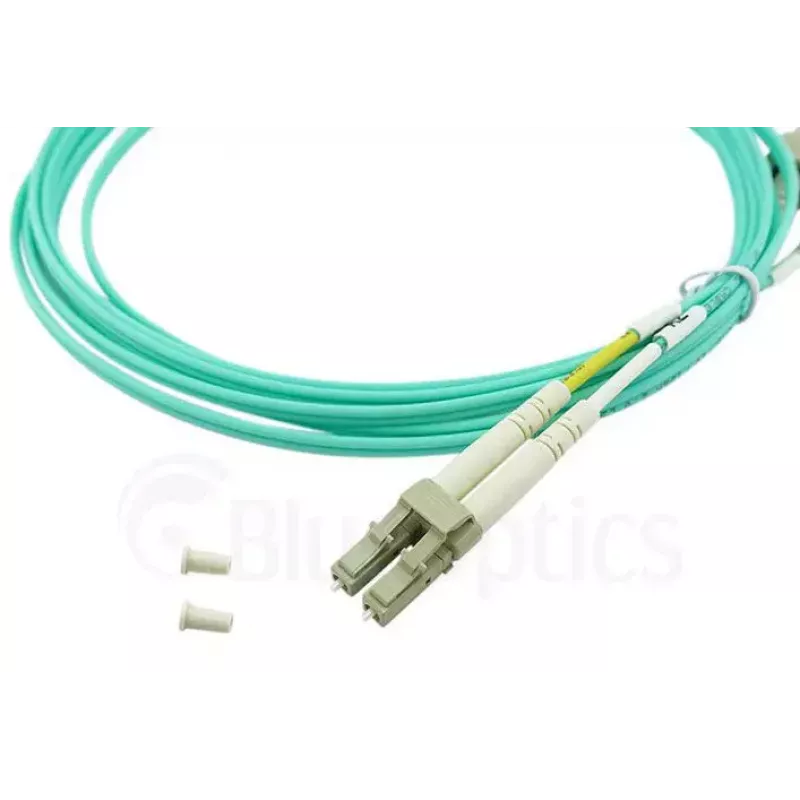

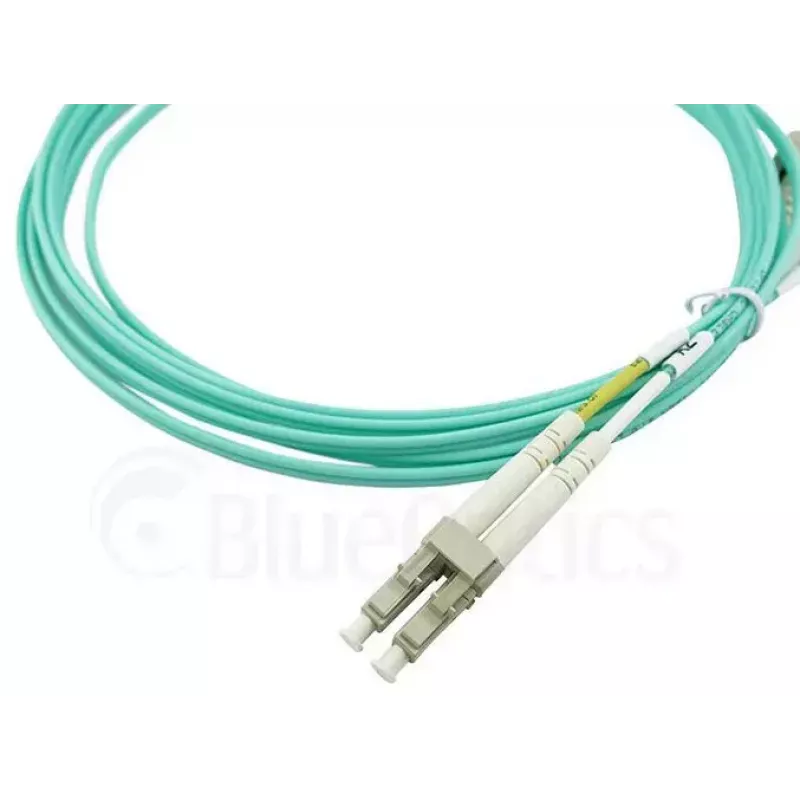

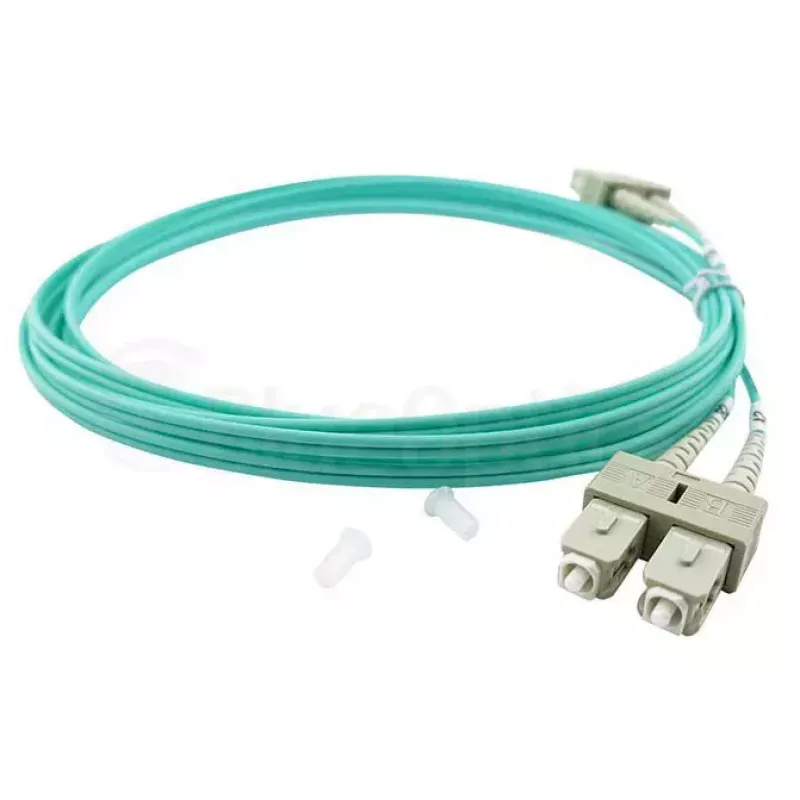

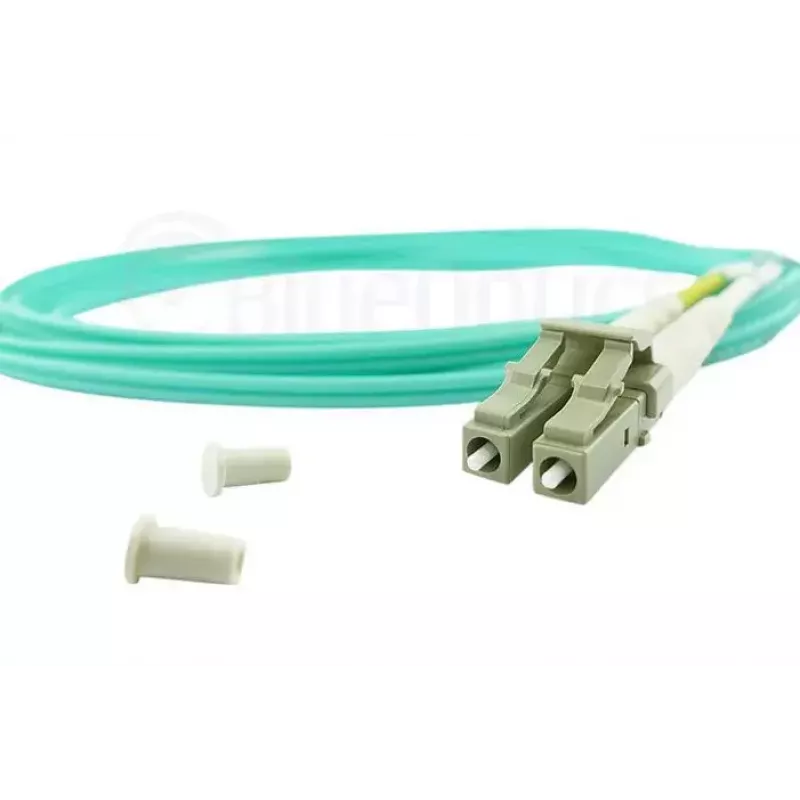

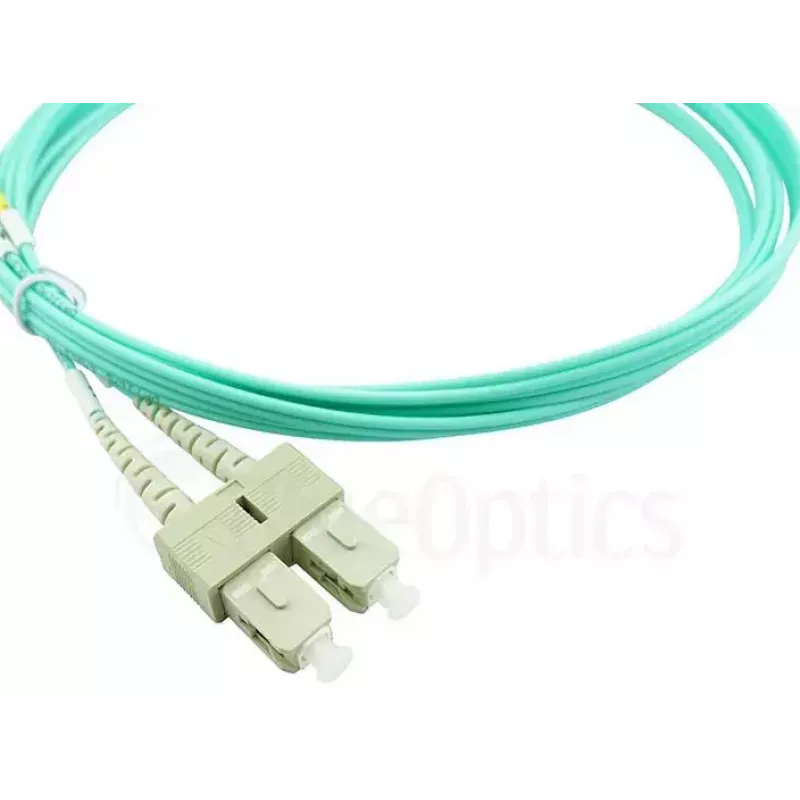

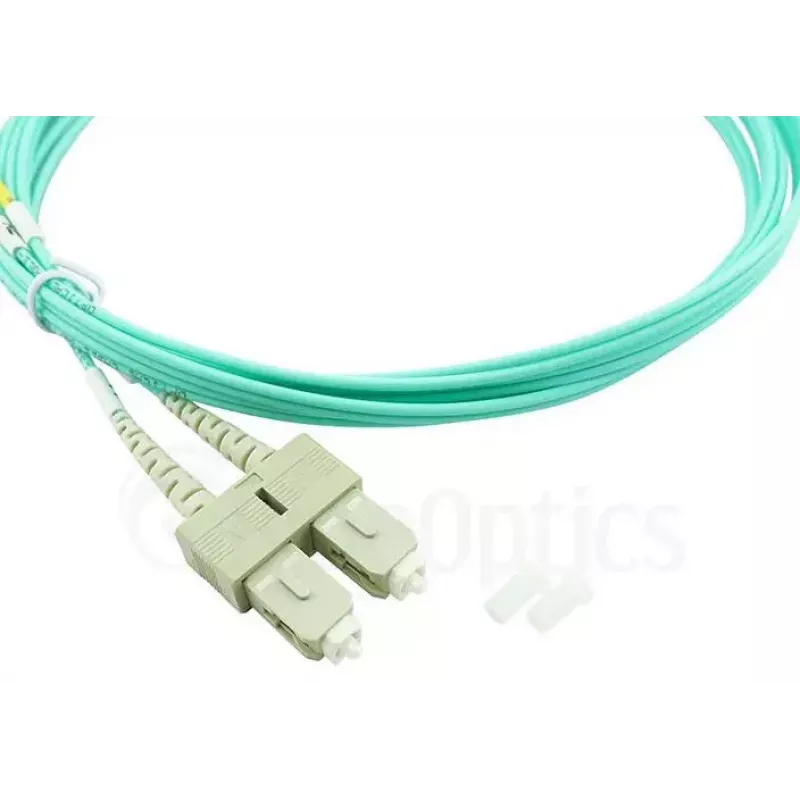

BlueOptics SFP3132EU3MK InfiniBand-kuitu-kaapeli 3 m LC SC aqua

The BlueOptics SFP3132EU3MK is a 3 m InfiniBand fibre optic patch cord with duplex LC/UPC to SC/UPC connectors and aqua LSZH jacket. It uses laser-optimized multimode OM3 fibre (50/125 µm core/cladding) designed for 850 nm transmission and full-duplex data transfer. The cable is intended for high-speed networking links, connecting patch panels, transceivers or other optical equipment while maintaining low insertion loss and high return loss.

Advantages

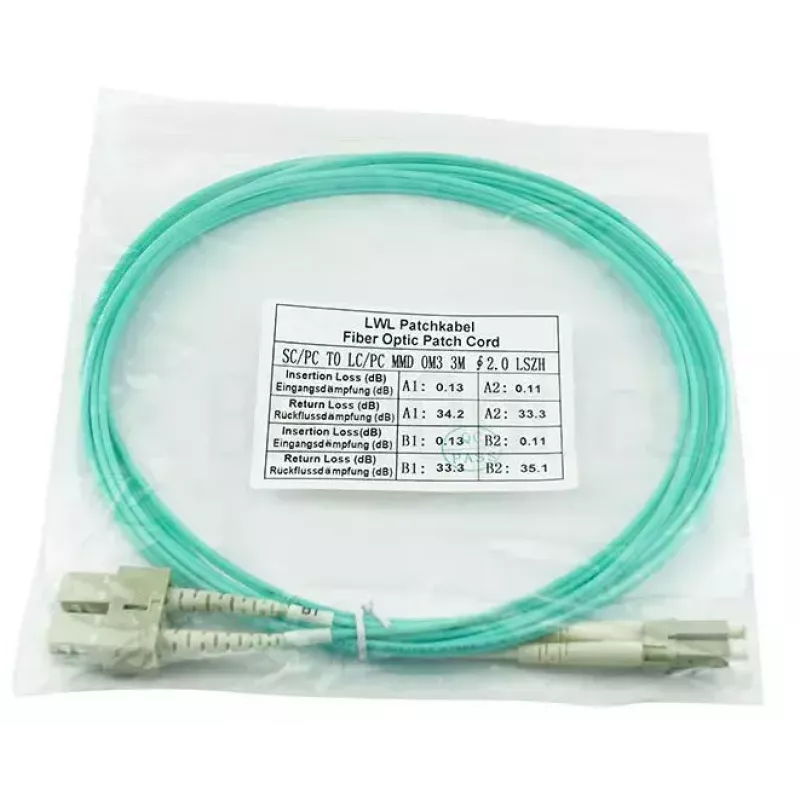

The OM3 multimode fibre provides low attenuation (approximately 3.5 dB/km) and is optimized for shortwave 850 nm systems, enabling reliable high-bandwidth links. Connectors feature zirconia ceramic ferrules and branded components to ensure durability and up to 1500 mating cycles. The LSZH jacket reduces smoke and avoids halogen emissions in case of fire, and production testing with interferometer and OTDR delivers measured insertion and return loss values with each unit.

Suitable for

Key specifications

How to use

Inspect connectors and ports for contamination before mating and remove dust with a suitable fibre cleaning tool if necessary. Align and insert the LC and SC connectors into the corresponding ports on equipment or patch panels until they click into place, ensuring duplex orientation matches transmit/receive pairs. Avoid sharp bends and maintain the manufacturer’s minimum bend radius during installation. When disconnecting, depress the connector latch and pull straight out without twisting.

Recommendations

Store and deploy the cable in racks or trays that preserve bend radius and prevent kinking. Use dust caps when connectors are not in use and retain the supplied test report for link verification. For custom lengths or alternate connector polishes consult product options; ensure compatibility with installed transceivers and panel adapters.
