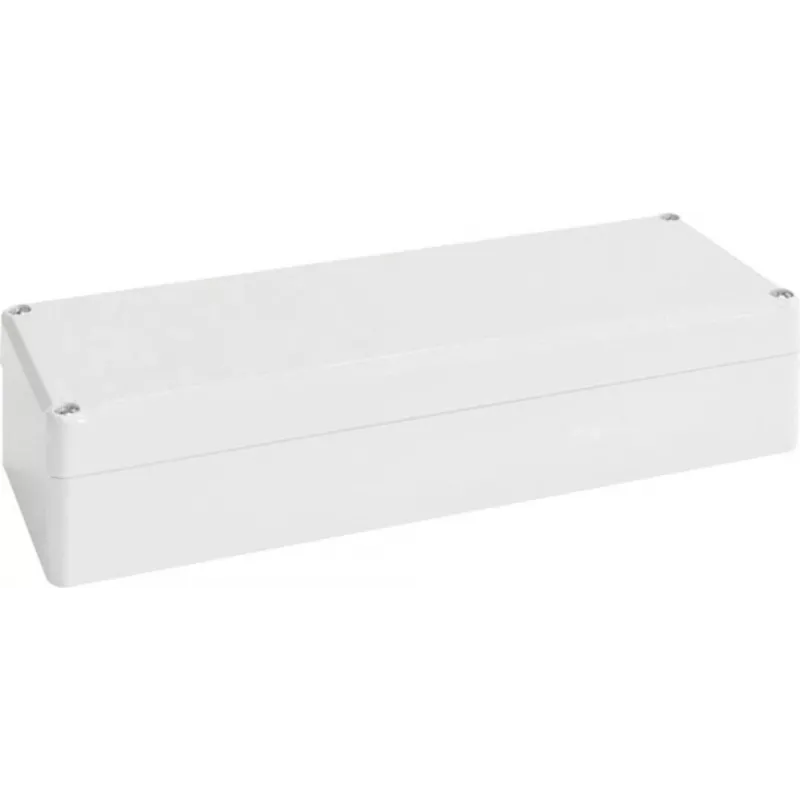

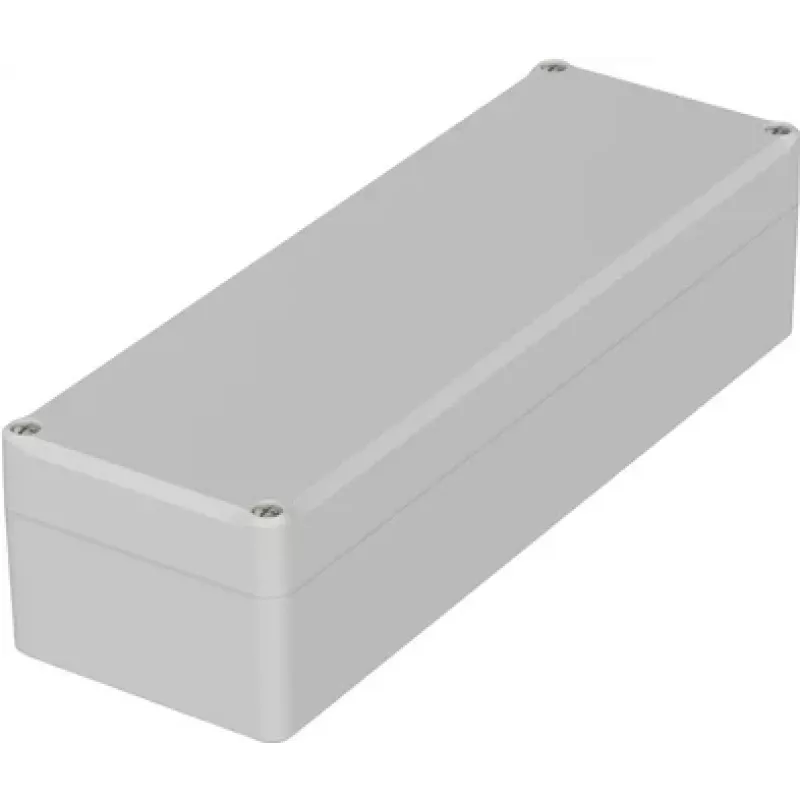

Bopla Euromas II yleiskotelo 240 x 80 x 60 mm ABS vaaleanharmaa RAL 7035 ET 224 63224300

Protecting sensitive electronics in demanding environments requires a robust housing that keeps out dust and moisture while offering easy access for installation and maintenance. The Bopla Euromas II universal enclosure provides a reliable solution for industrial and outdoor applications, combining a durable ABS body with a secure lid and integrated mounting options.

Who is it for

Engineers, system integrators, and technicians who need a dependable enclosure for PCBs, terminal blocks, or small electronic assemblies in industrial control, automation, or measurement systems. It suits projects where IP65 protection and chemical resistance are required.

Main features

• External dimensions: 240 x 80 x 60 mm (L x W x H) – spacious for various components
• Material: ABS (acrylonitrile butadiene styrene) with light grey finish (RAL 7035)
• Protection class: IP65 – dust-tight and protected against water jets
• Lid secured with stainless steel screws; integrated PUR gasket ensures reliable sealing
• Integrated mounting bosses for PCBs or mounting plates; wall mounting possible via screw channels outside the sealed area
• Impact resistance: IK07; flammability rating: UL 94 HB
• Operating temperature range: -40 °C to +80 °C

Specifications

• Brand: Bopla
• Model: 63224300
• MPN: 63224300
• EAN: 4049505025749
• Enclosure type: Universal enclosure
• Series: Euromas II
• Material: ABS
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 240 x 80 x 60 mm
• Protection class: IP65
• Lid fastening: Stainless steel screws
• Gasket material: PUR (polyurethane)
• Flammability rating: UL 94 HB
• Operating temperature range: -40 °C to +80 °C
• Impact resistance: IK07
• Chemical resistance: Good against aqueous acids, alkalis, salts, and oils
• UV resistance: Limited
• Number of components: 2 (base, lid)
• Mounting options: Wall mounting possible via screw channels outside the sealed area
• Surface finish: Smooth

Tips

For outdoor use, consider additional UV protection or painting, as ABS has limited UV resistance. Ensure the lid screws are tightened evenly to maintain the IP65 seal. The enclosure can be easily machined for cable glands or connectors.
