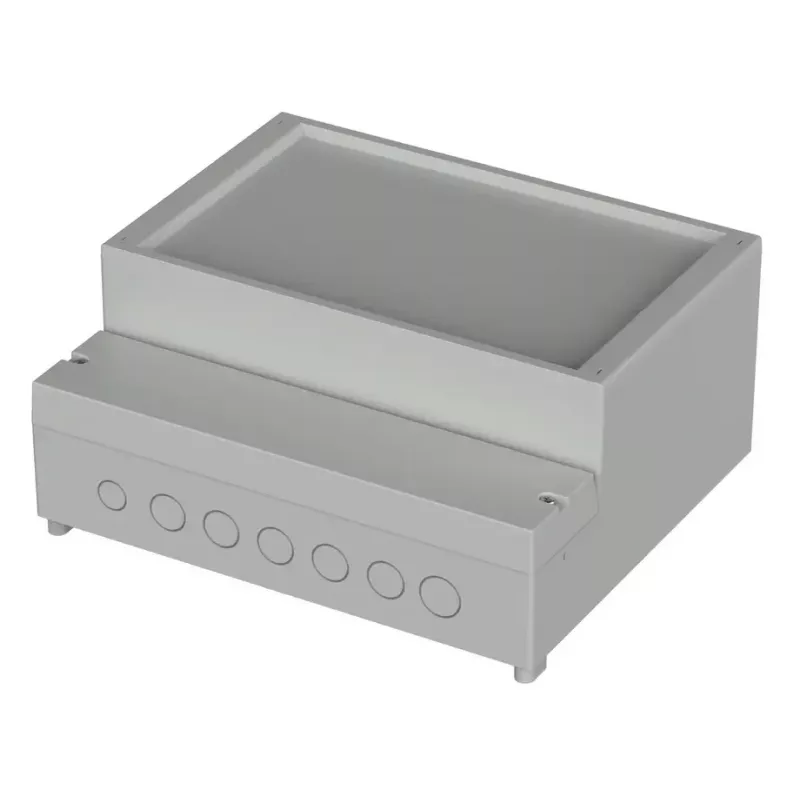

Bopla RCP 250 F -ohjauskotelo 257 x 217 x 112 mm ABS vaaleanharmaa 41250609

The Bopla RCP 250 F stands out with its recessed lid, designed to accept membrane keypads or front panels, and screw channels that remain outside the sealed area. This keeps the interior fully protected while allowing easy customization.

Highlights

• Material: ABS (Acrylonitrile Butadiene Styrene), light grey (RAL 7035)
• External dimensions: 257 mm length, 217 mm width, 112 mm height
• Protection class: IP65
• Lid with recess for membrane keypads or front panels
• Screw channels outside the sealed area, integrated lid stays
• Mounting bosses for PCBs or mounting plates
• Operating temperature range: -40 °C to +80 °C
• Flammability rating: UL 94 HB
• Gasket material: Polyurethane (PUR)
• Lid screw material: Stainless Steel 1.4567

In daily use

This control enclosure is suited for wall mounting or desktop use. The recessed lid allows integration of user interface elements without compromising the IP65 seal. The integrated lid stays keep the cover open during installation or maintenance, while the external screw channels simplify assembly and ensure the sealed area remains untouched.

Full specifications

• Enclosure type: Control enclosure
• Series: RCP
• Material: ABS
• Colour: Light grey (RAL 7035)
• External length: 257 mm
• External width: 217 mm
• External height: 112 mm
• Protection class: IP65
• Lid design: Recessed for membrane keypads/front panels
• Mounting type: Wall mounting, desktop use
• Operating temperature range: -40 °C to +80 °C
• Flammability rating: UL 94 HB
• Gasket material: Polyurethane (PUR)
• Lid screw material: Stainless Steel 1.4567
• Internal mounting features: Mounting bosses for PCBs/mounting plates
• Special features: Screw channels outside the sealed area, integrated lid stays
• Units per package: 1

Final note

The Bopla RCP 250 F combines a robust ABS housing with a flexible front design, making it a practical choice for control applications that require a sealed, customizable interface.
