C13 kylmälaite pistoke Bachmann 915.973 harmaa

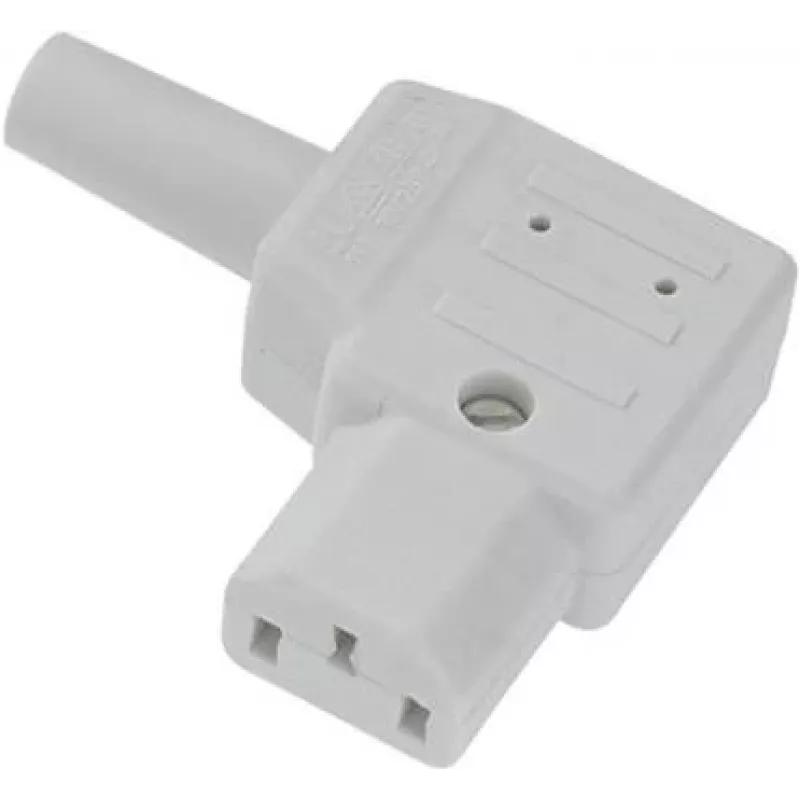

The Bachmann 915.973 C13 power plug in grey is a thermoplastic IEC C13 connector designed for AC input voltages up to 250 V and a maximum current of 10 A. It is intended for cable mounting and supports conductor cross-sections up to 3G 1.00 mm². The compact grey housing includes an earthing contact and provides screw terminals, kink protection and strain relief with the cable exit on the right-hand side.

Advantages

This C13 power plug offers a secure, screw-terminal connection for reliable electrical contact and simple installation. Its thermoplastic housing provides mechanical protection and durability while the integrated kink protection and strain relief reduce stress on the cable. The right-side cable exit enables tidy routing in equipment racks or confined installations.

Suitable for

• Powering computers, monitors and peripherals with IEC C13 inlets
• Use in office and IT equipment assemblies
• Installations requiring a compact plug with right-hand cable exit

Key specifications

• Brand: Bachmann
• Model / MPN: 915.973
• Type: IEC C13 power plug, thermoplastic
• Rated voltage: AC 250 V
• Rated current: 10 A
• Conductor size: up to 3G 1.00 mm²
• Mounting: cable-mounted with screw terminals
• Cable exit: right-hand side
• Color: grey
• EAN: 4016514006755

How to use

Prepare the mains cable by stripping insulation to the recommended length, then insert conductors into the designated screw terminals and tighten screws to secure connections. Ensure the earthing conductor is connected to the earth contact. Route the cable through the plug housing so the integrated kink protection and strain relief engage, then assemble the housing parts according to the manufacturer’s instructions. Verify the assembled plug for secure contact and no exposed conductors before applying power.

Recommendations

Use cables with conductor cross-sections up to 3G 1.00 mm², tighten terminal screws to the torque specified by the manufacturer, and avoid excessive bending near the strain relief to maintain safe operation.
