Chief Medium Fusion mikrosäädettävä kallistuva seinäteline, yksittäisteline

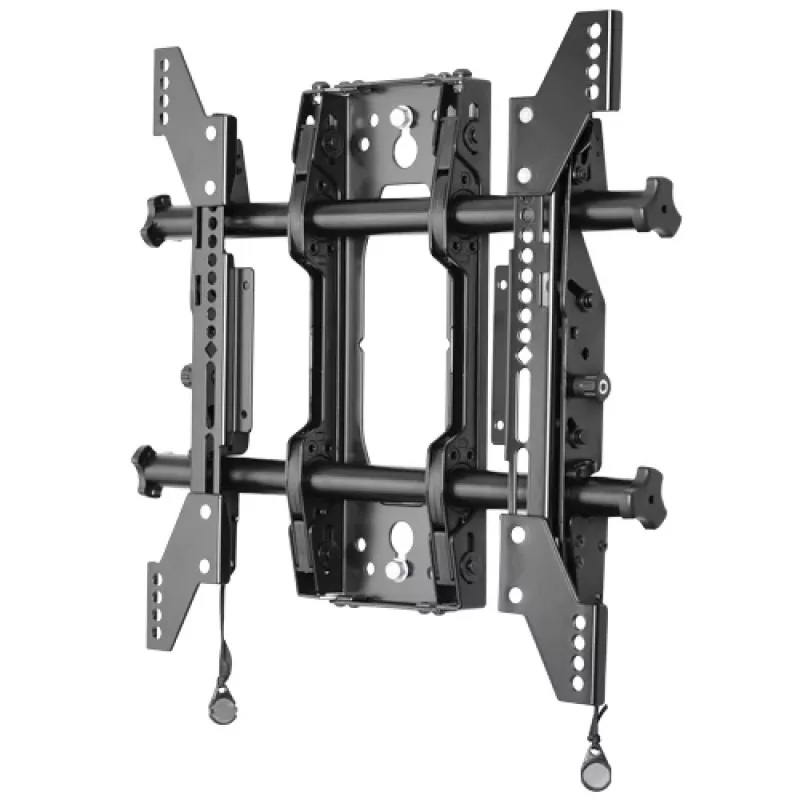

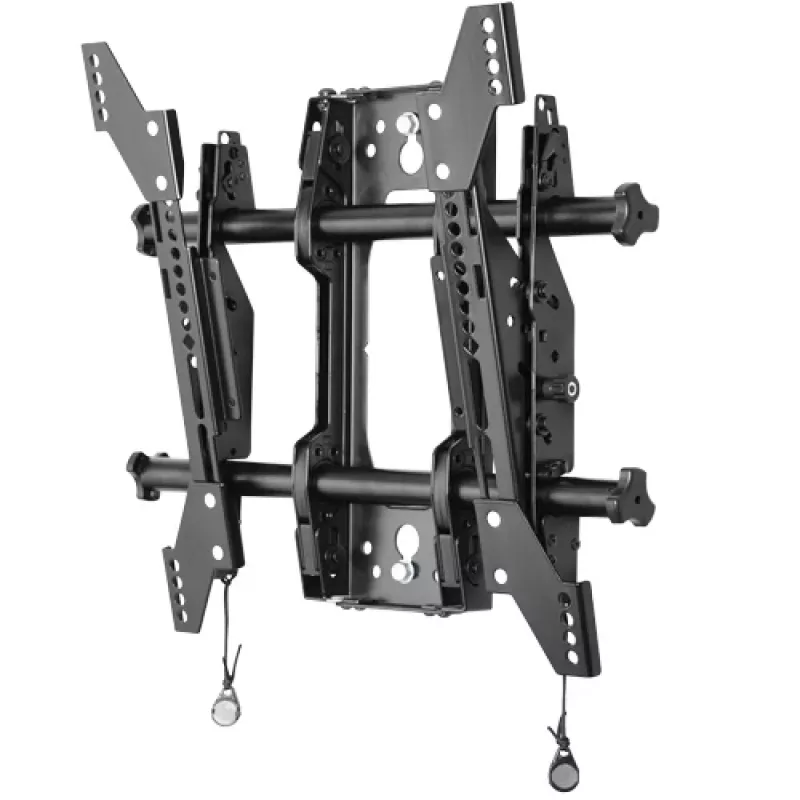

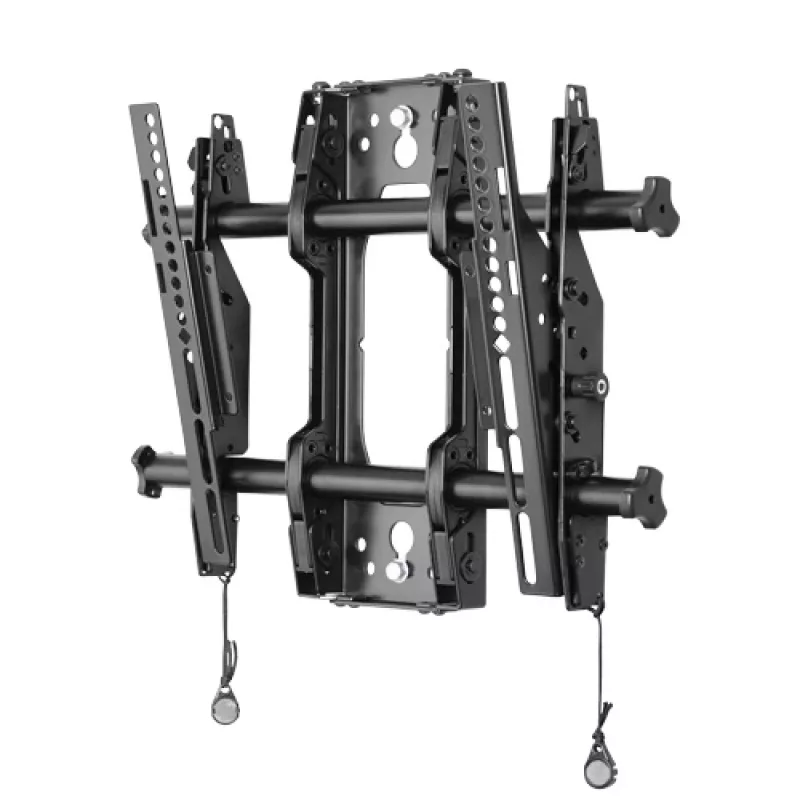

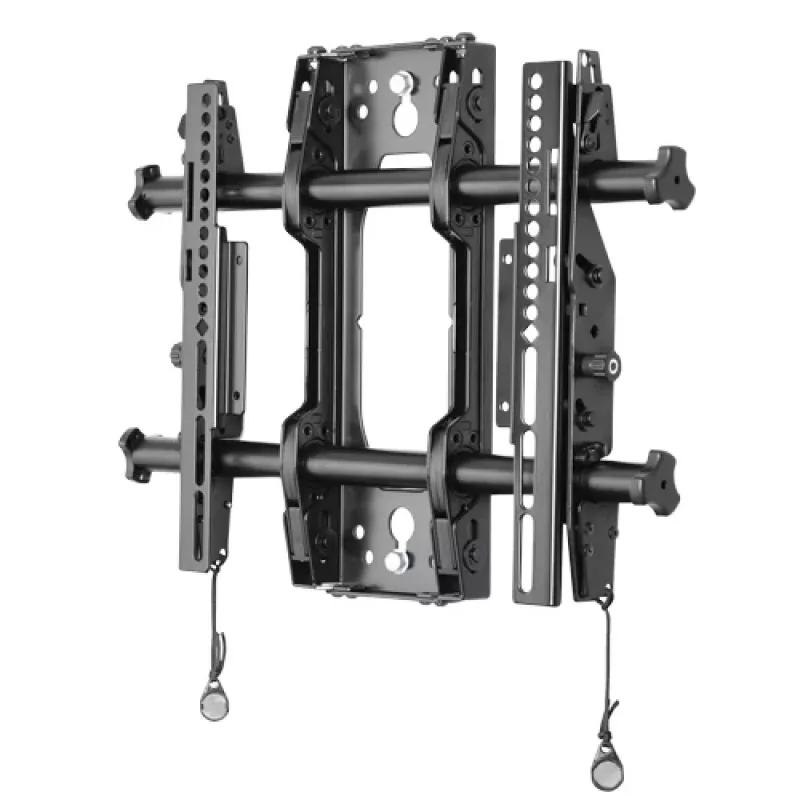

The Chief Medium Fusion MTMS1U is a low-profile, installer-focused tilt wall mount designed for flat panel displays from 32" to 47". It integrates Centris tilt, ControlZone leveling and ClickConnect latching to provide a compact mounting solution that hides behind narrow-bezel screens while allowing micro-adjustments after installation. The mount supports a maximum weight of 34 kg and VESA patterns up to 450 x 400 mm.

Advantages

This Fusion tilt mount uses a center-of-gravity Centris tilt to keep the display balanced while maintaining a slim profile. The mechanism allows tilt locking at 0°, -6° or -12° and includes ControlZone for fine post-installation height and leveling adjustments. ClickConnect gives an audible click when the display engages, and set screws plus integrated security keep the installation rigid and secure. Additional installer conveniences include nesting spacers for adjustable depth, magnetic Quick-Store cords for cord management and a custom hardware kit that can be hung from the rails during staged installations.

Suitable for

• Mounting medium flat-panel displays 32"–47"
• Installations requiring a low-profile aesthetic behind narrow-bezel screens
• Environments where post-installation leveling and micro height adjustment are needed
• Single-display commercial or residential wall mounts with up to 34 kg load

Key specifications

• Maximum screen size: 47"
• Maximum weight capacity: 34 kg
• VESA compatibility: up to 450 x 400 mm
• Tilt range: -12° to 2°; lockable at 0°, -6° and -12°
• Height adjustment (micro-adjust): 0–25 mm
• Colour: Black
• Number of displays supported: 1

How to use

Secure the MTMS1U mount to a suitable wall stud or structural backing following the included hardware kit and installation instructions. Attach the display to the mount using the compatible VESA pattern and the ClickConnect feature until you hear the engagement click. Use the ControlZone adjustment to fine-tune height and leveling after the display is hung, then set the desired Centris tilt and lock it at 0°, -6° or -12° as required. Stack nesting spacers if additional depth is needed and use the set screws to finalize rigidity and security.

Recommendations

The mount is intended for indoor fixed installations on suitable structural backing; confirm wall stud location and weight capacity before mounting. For optimal results with narrow-bezel medium displays, verify VESA compatibility and use the supplied hardware. Regularly check set screws and security features to maintain a stable installation.
