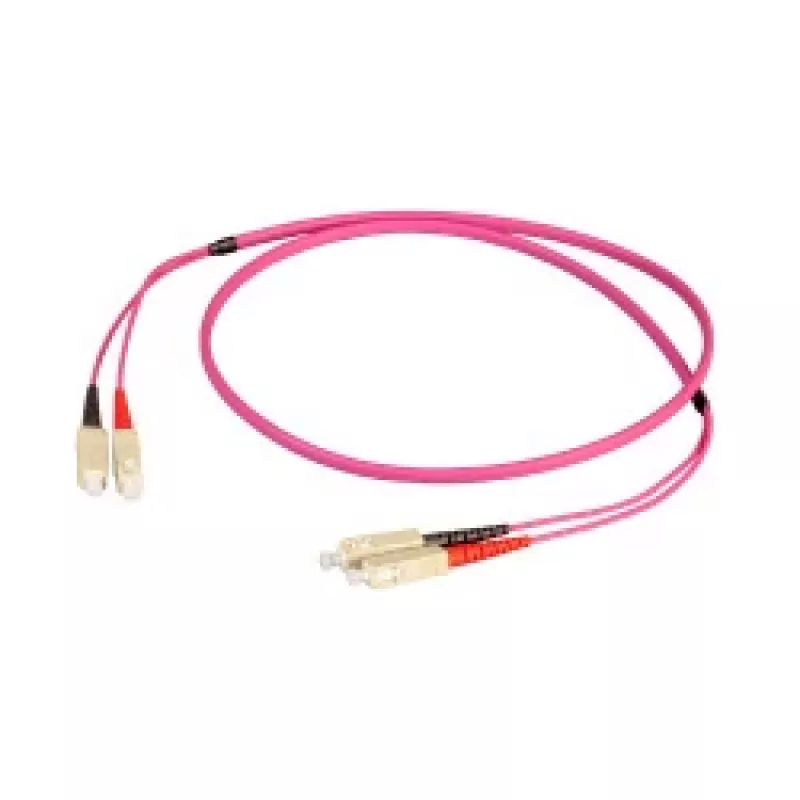

EFB Elektronik duplex-jumpperi SC-SC 50/125 µm OM4 LSZH Erika violetti litteä twin 3x5mm 10m

The EFB Elektronik Duplex Jumper SC-SC is a high-performance multimode fiber optic patch cable designed for demanding data center and enterprise network applications. With OM4 performance, this cable supports high-speed data transmission over short to medium distances, offering excellent bandwidth and low attenuation. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, while the flat twin construction (3x5mm) saves space and simplifies cable management.

Advantages

This duplex jumper provides reliable, high-speed connectivity with low insertion loss and high return loss, ensuring signal integrity. The OM4 fiber class supports 40G and 100G Ethernet applications, making it future-proof. The LSZH jacket reduces toxic smoke in case of fire, ideal for public and commercial buildings. The flat twin design is flexible and easy to route in tight spaces.

Suitable for

• Data centers
• Telecommunications rooms
• Enterprise networks
• High-speed backbone connections
• Storage area networks (SAN)

Key specifications

• Connector Type: SC to SC Duplex
• Fiber Type: Multimode OM4 (50/125 µm)
• Cable Length: 10 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Erika Violet
• Cable Construction: Flat Twin (3 x 5 mm)
• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 30 dB (typical)
• Attenuation at 850 nm: 2.3 dB/km
• Attenuation at 1300 nm: 0.6 dB/km
• Bandwidth at 850 nm (OFL): 4700 MHz·km
• Bandwidth at 1300 nm (OFL): 500 MHz·km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards: IEC 60793-2-10 Type A1a.3, ISO/IEC 11801, EN 50173-1

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard SC duplex interfaces. Suitable for use with OM4 transceivers for 40G/100G applications.
