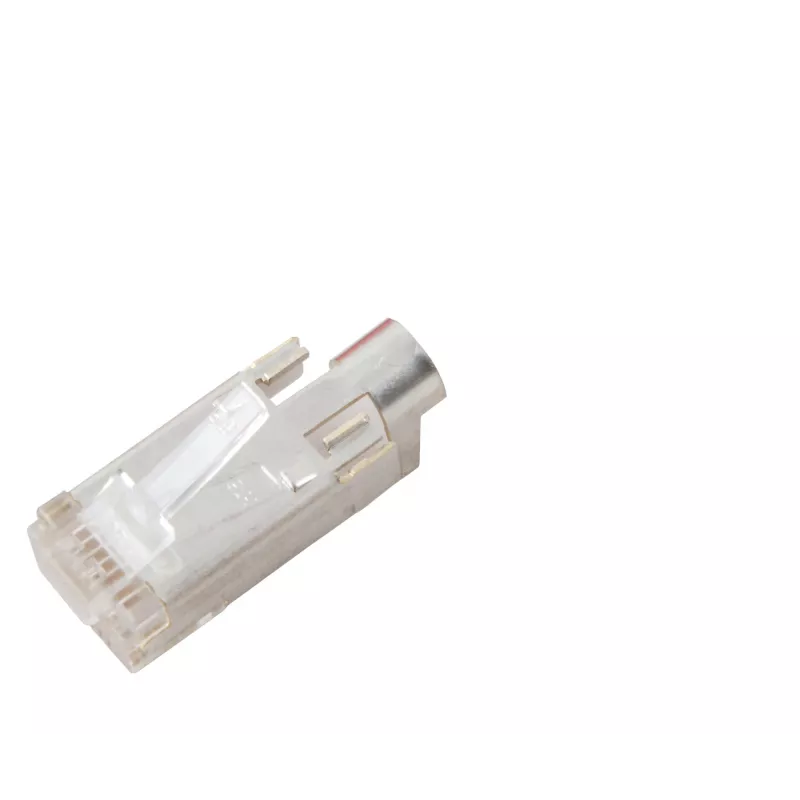

EFB Electronics Hirose TM11 RJ-45 verkkoliitin Cat.6a suojattu, kenttäasennettava

The EFB Electronics Hirose TM11 is a high-performance RJ-45 network connector designed for reliable data transmission in demanding environments. This field-terminable plug supports Cat.6a standards, enabling 10 Gigabit Ethernet over twisted pair cables. Its robust die-cast metal housing provides excellent shielding against electromagnetic interference, ensuring signal integrity in industrial and enterprise networks.

Advantages

• Supports 10GBASE-T networks with frequencies up to 500 MHz
• Shielded design (FTP/STP compatible) for EMI protection
• Tool-less IDC termination for quick and easy field installation
• Compatible with solid and stranded conductors (AWG 22-26)
• Re-terminable for cost-effective reusability

Suitable for

• Ethernet data networks requiring Cat.6a performance
• Industrial automation and control systems
• Structured cabling in enterprise environments
• Field installation and repair of network cables

Key specifications

• Connector Type: RJ-45 Male (Plug)
• Network Category: Cat.6a
• Shielding: Shielded (FTP/STP)
• Termination: IDC, Field Terminable
• Contact Plating: Gold-plated
• Housing Material: Die-cast Metal
• Wire Gauge: AWG 22-26
• Data Rate: Up to 10 Gbps
• Frequency: Up to 500 MHz
• Operating Temperature: -10°C to 60°C
• Standards: TIA/EIA-568-B.2-10, ISO/IEC 11801, EN 50173

Recommendations

For optimal performance, use with Cat.6a or higher rated cable. Ensure proper strain relief and cable preparation before termination.
