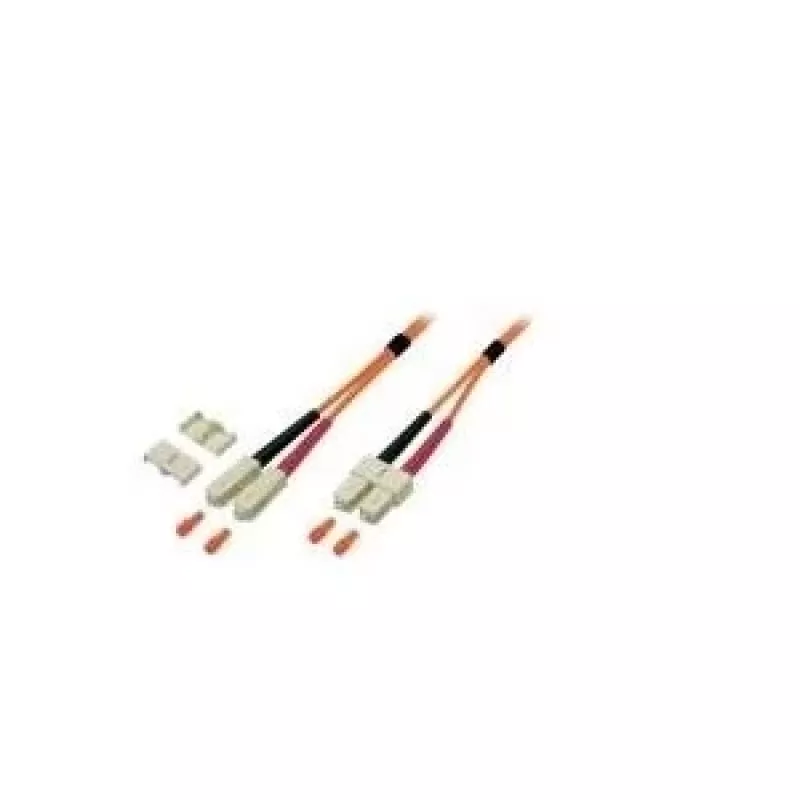

EFB-Elektronik ECOFIBER Duplex-jatkokaapeli SC-SC OM1 62.5/125µm 3m LSZH oranssi

The EFB-Elektronik ECOFIBER Duplex Jumper SC-SC is a high-quality fiber optic patch cable designed for reliable data transmission in LAN, SAN, data centers, and telecommunication networks. With OM1 multimode fiber, 62.5/125µm core/cladding, and duplex SC connectors, this 3-meter cable ensures low insertion loss and high return loss. The LSZH (Low Smoke Zero Halogen) jacket in orange provides safety and easy identification.

Advantages

This cable offers excellent performance with typical insertion loss ≤0.3 dB and return loss ≥20 dB. The LSZH jacket reduces toxic fumes in case of fire, making it suitable for enclosed spaces. The 3.0 mm diameter cable is flexible yet durable, and the ceramic ferrule connectors ensure precise alignment.

Suitable for

• Fiber optic network installations in offices, data centers, and industrial environments
• Connecting switches, routers, and patch panels
• Applications requiring low smoke and halogen-free materials

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM1
• Core/Cladding Diameter: 62.5/125 µm
• Connector Type: SC Duplex
• Cable Length: 3 m
• Jacket Material: LSZH
• Jacket Color: Orange
• Cable Diameter: 3.0 mm
• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 20 dB (typical)
• Attenuation at 850nm: ≤ 3.5 dB/km
• Attenuation at 1300nm: ≤ 1.5 dB/km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for short-distance multimode fiber links up to 550 meters at 1 Gbps.
