EFB-Elektronik hitsauskotelo musta LC 9/125µm OS2 Pull-Out 24 pigtailia / 12 liitintä

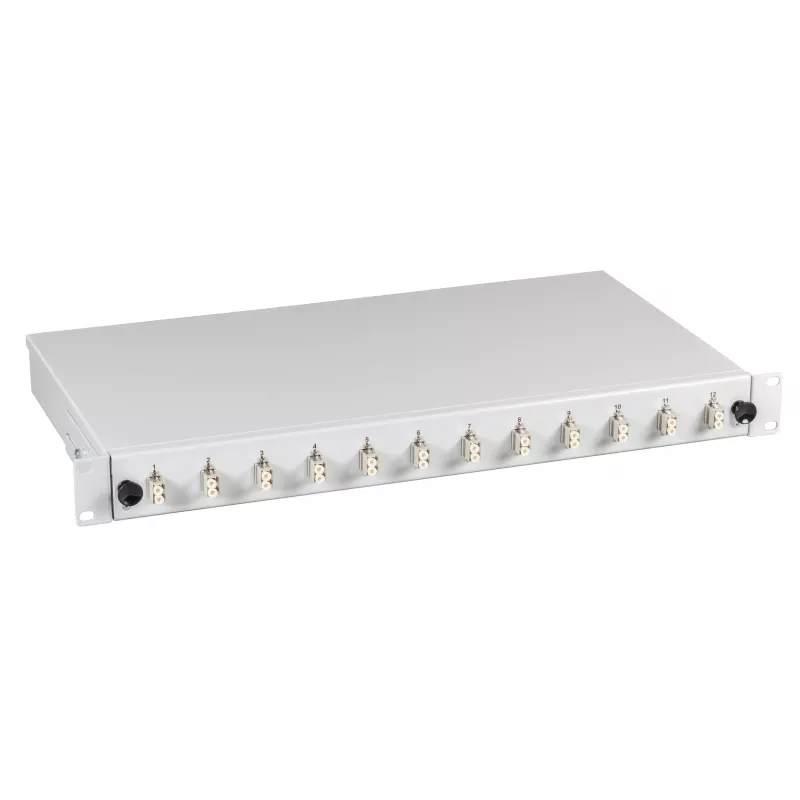

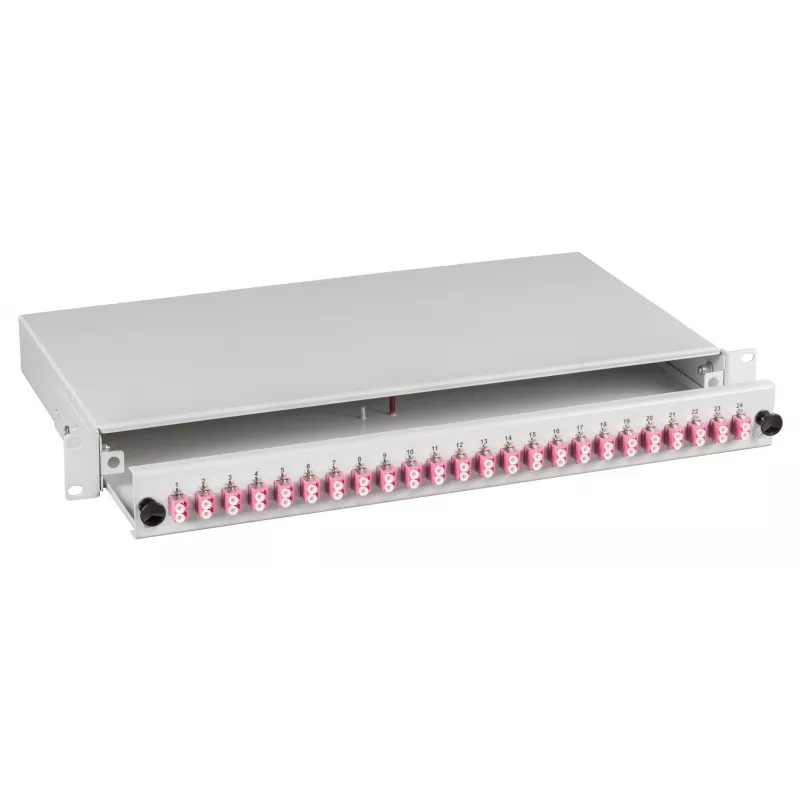

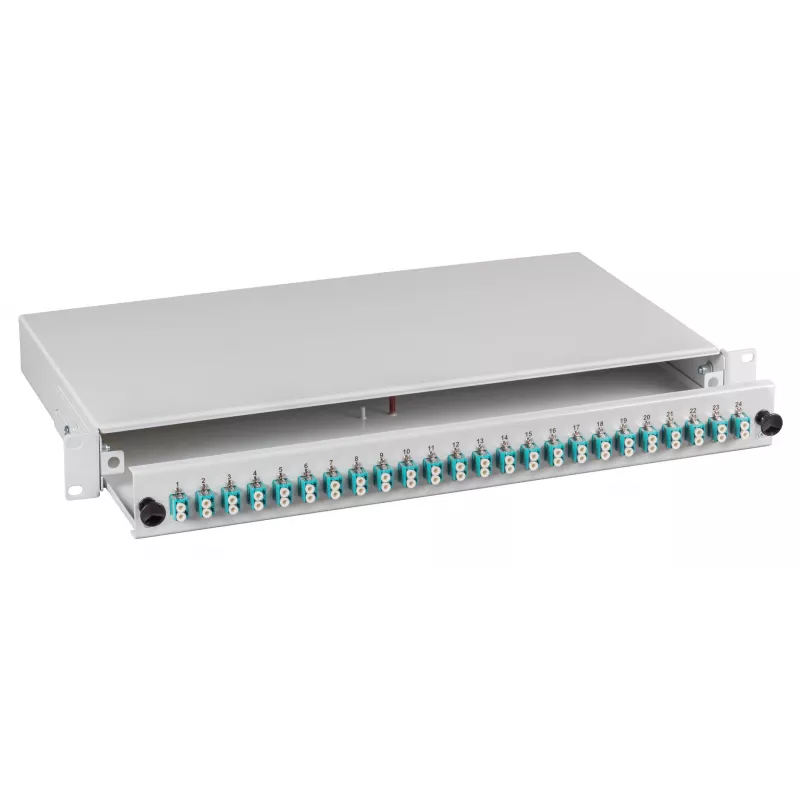

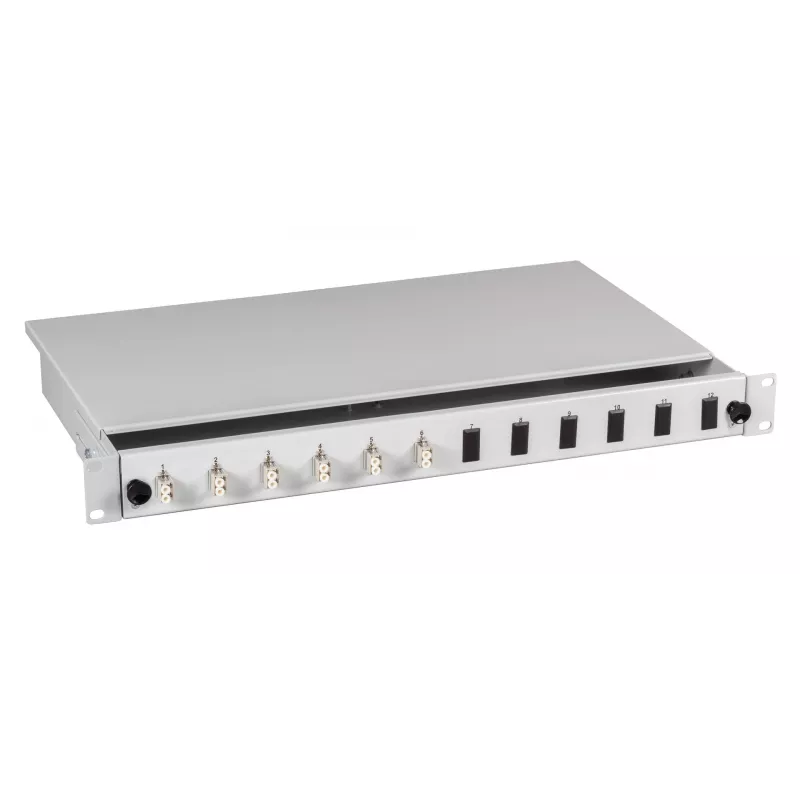

The EFB-Elektronik BA71921TS.24 is a high-quality fiber optic splice box designed for professional network installations. This 1U 19-inch rack-mountable unit features a pull-out drawer for easy access and includes 24 pre-terminated pigtails and 12 LC duplex adapters. It supports single-mode OS2 fibers (9/125 µm) and is ideal for data centers, LAN, FTTx, and telecommunications applications.

Advantages

Pre-terminated pigtails save installation time and ensure consistent performance. The pull-out design simplifies splicing and maintenance. Robust steel housing provides durability and protection for fiber connections.

Suitable for

• Data center fiber distribution
• Local area network (LAN) backbone
• FTTx (Fiber to the x) deployments
• Telecommunications infrastructure

Key specifications

• Product Type: Fiber Optic Splice Box / Patch Panel
• Fiber Type: Single-mode OS2
• Core/Cladding: 9/125 µm
• Connector Type: LC
• Number of Pigtails: 24
• Number of Adapters: 12 (LC Duplex)
• Total Fiber Capacity: 24
• Design: Pull-out drawer
• Color: Black
• Rack Unit: 1U
• Mounting: 19-inch rack
• Housing Material: Steel

Recommendations

For optimal performance, use with OS2-rated patch cables and ensure proper fiber cleaning before connection. This splice box is compatible with standard 19-inch racks and provides a neat, organized solution for fiber management.
