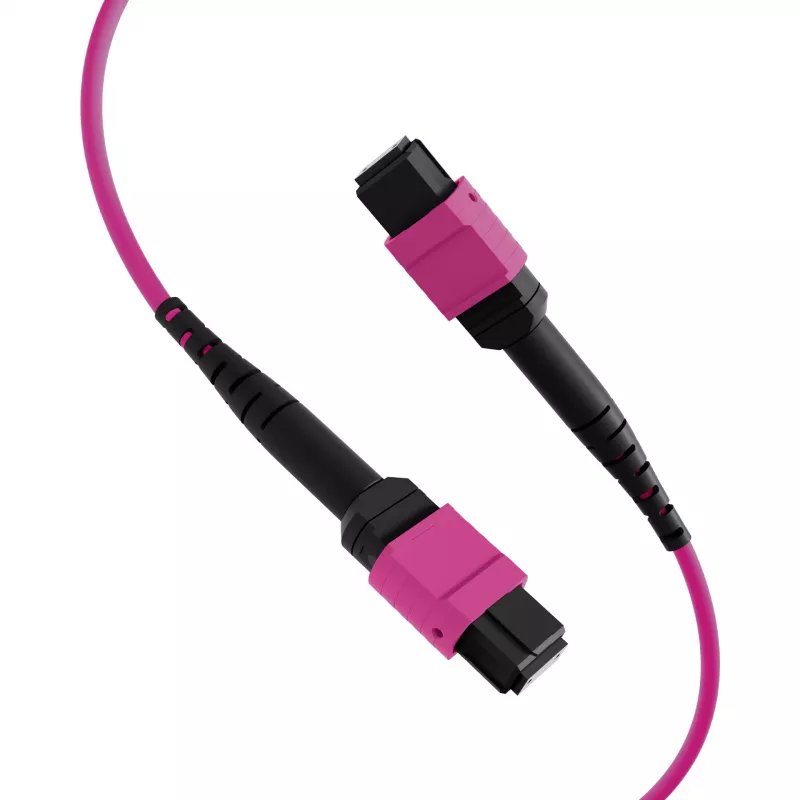

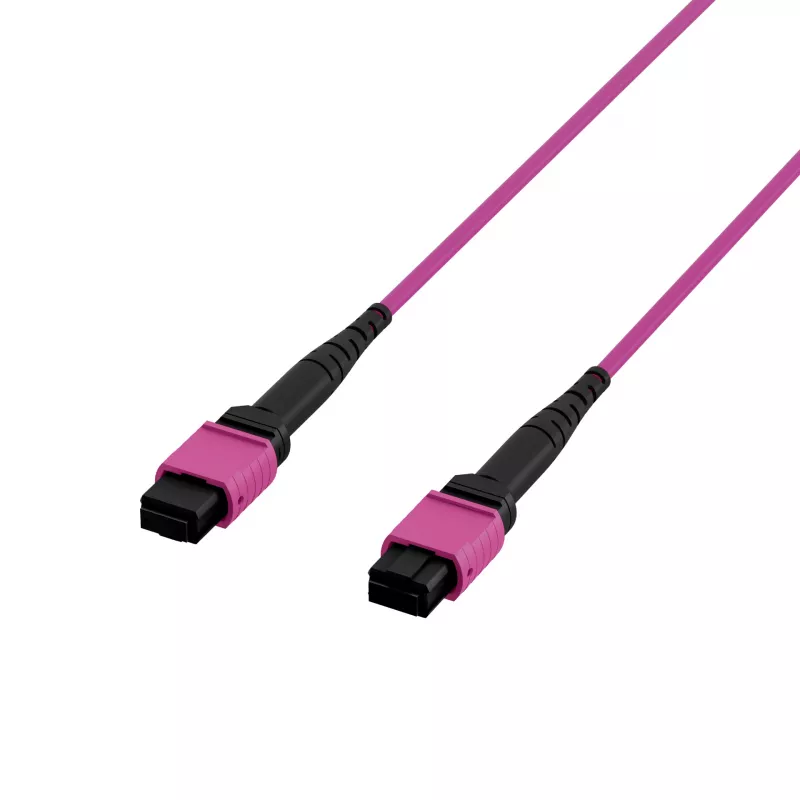

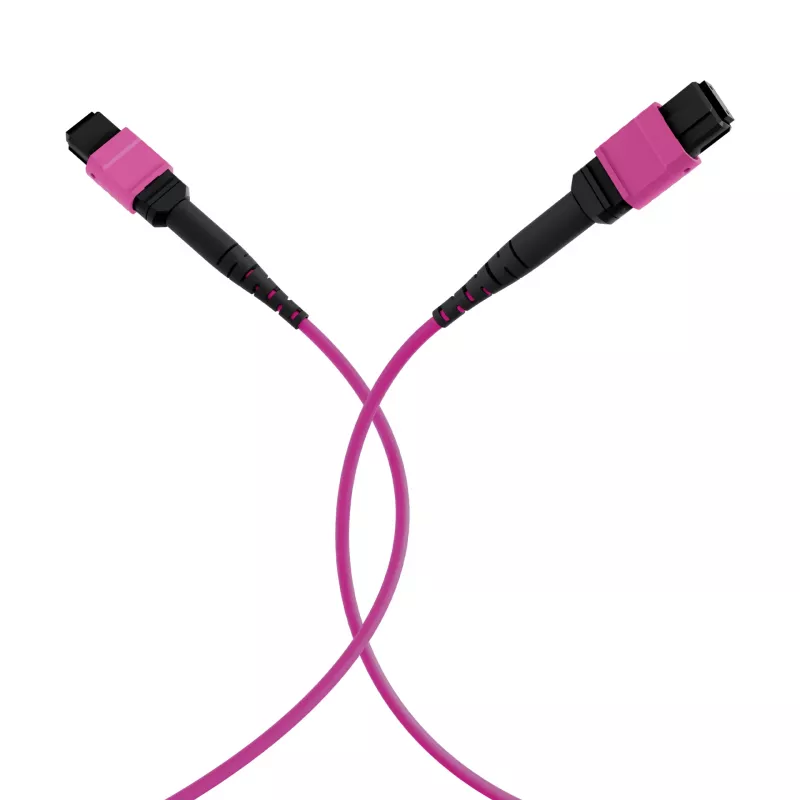

EFB Elektronik MPO-PLUS(F)-MPO-PLUS(F) OM4 12-säikeinen tyyppi B LSZH patchkaapeli, kanerva violetti, 20 m MPOF12MPOFOM4-20

High-density data centers often struggle with cable congestion and the need for reliable high-speed connections. This MPO patch cable solves that by consolidating 12 fibers into a single compact connector, enabling efficient 40G/100G Ethernet links.

Who is it for

Network engineers and data center technicians who need a dependable, pre-terminated fiber optic cable for backbone or distribution areas. It suits environments where space is limited and performance is critical.

Main features

• 12 OM4 multimode fibers in one MPO-PLUS female connector on each end
• Type B polarity for straightforward mating with QSFP+ and QSFP28 transceivers
• LSZH jacket in erika-violet for easy identification and low smoke emission
• 20 m length for flexible routing in racks and between cabinets
• Low insertion loss of 0.35 dB per connector ensures signal integrity

Specifications

• Cable length: 20 m
• Fiber type: OM4 multimode
• Number of fibers: 12
• Connector A: MPO-PLUS female
• Connector B: MPO-PLUS female
• Polarity: Type B
• Jacket material: LSZH
• Jacket colour: Erika-violet
• Core/cladding diameter: 50/125 µm
• Modal bandwidth at 850 nm: 4700 MHz·km
• Modal bandwidth at 1300 nm: 500 MHz·km
• Attenuation at 850 nm: 2.3 dB/km
• Attenuation at 1300 nm: 0.6 dB/km
• Insertion loss per connector: 0.35 dB
• Return loss: 20 dB
• Operating temperature: -20°C to +70°C

Tips

Use this cable for 40GBASE-SR4 and 100GBASE-SR4 links. Clean MPO connectors before each mating to maintain low loss.
