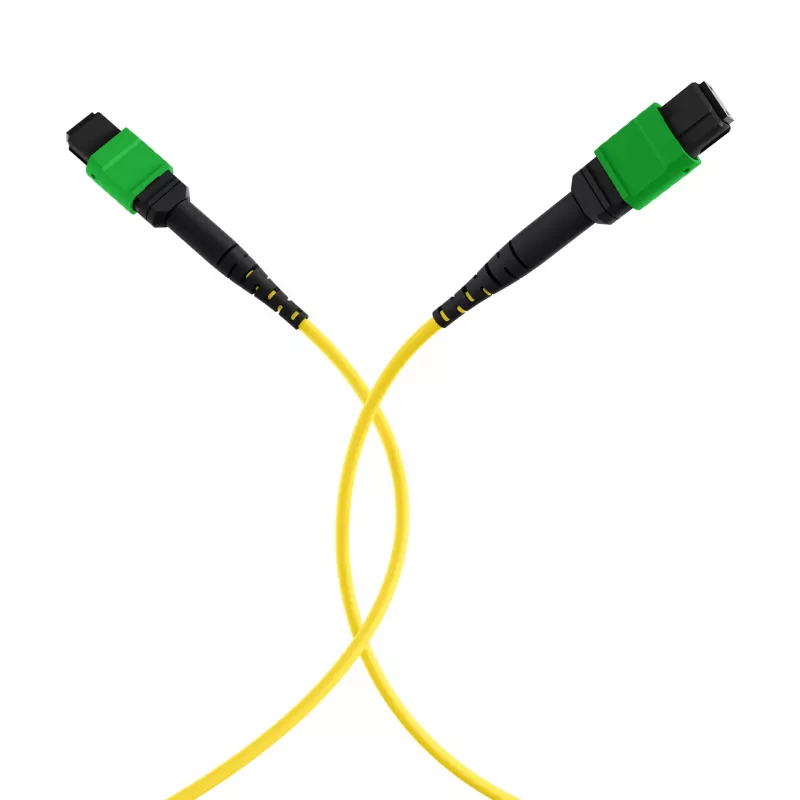

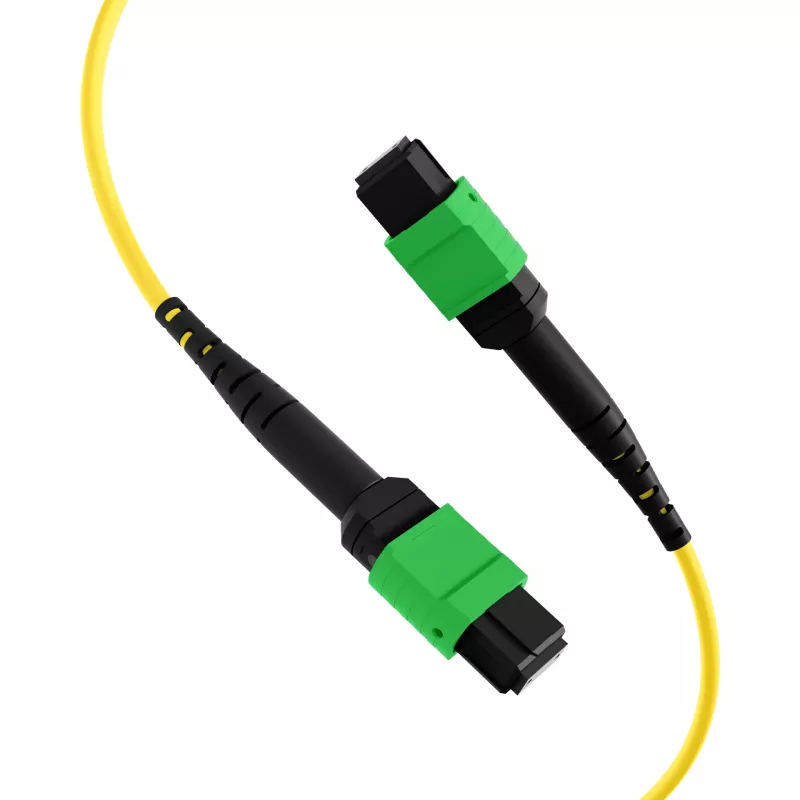

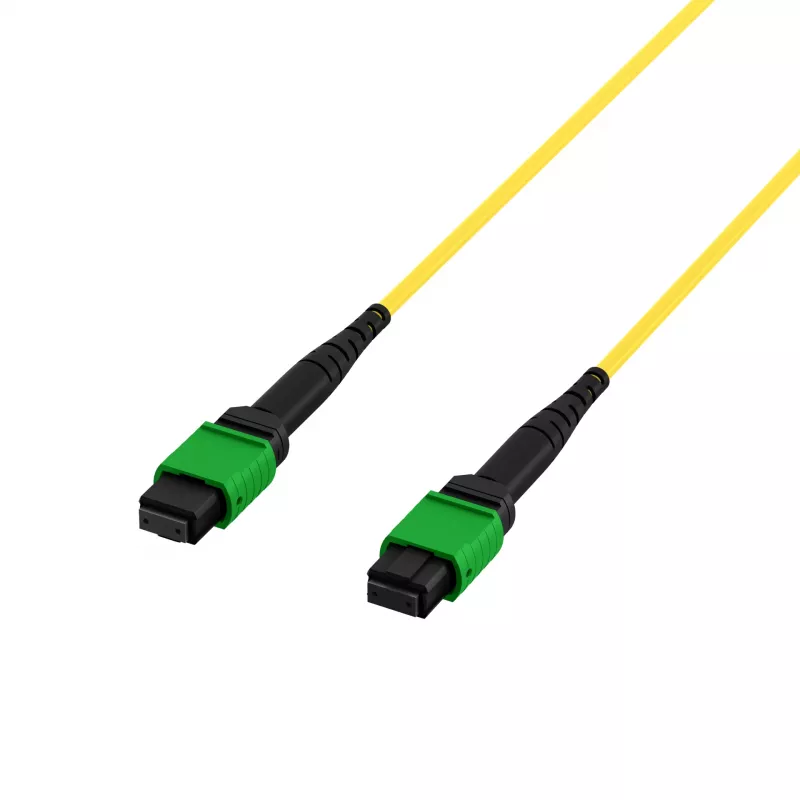

EFB Elektronik MPOF12MPOFOS2-2 MPO-PLUS APC liitin MPO-PLUS APC liittimeen OS2 single-mode 12-kuitu tyyppi B LSZH keltainen patch-kaapeli, 2 m

Experience exceptional return loss performance of ≥60 dB with this EFB Elektronik MPO-PLUS APC to MPO-PLUS APC OS2 single-mode patch cable, designed for high-density fiber optic networks and data centers.

Overview

The EFB Elektronik MPOF12MPOFOS2-2 is a 2-meter OS2 single-mode fiber optic patch cable featuring MPO-PLUS APC female connectors on both ends. It bundles 12 fibers in a Type B polarity configuration, ensuring proper signal routing in parallel optics applications. The yellow LSZH jacket provides low smoke and zero halogen emission for enhanced safety in enclosed spaces.

What stands out

• MPO-PLUS APC connectors with angled physical contact polish for low back reflection
• 12 fibers in a single compact cable, ideal for high-density patching
• Type B polarity for straightforward connectivity in structured cabling systems
• LSZH yellow jacket meets stringent fire safety requirements
• Low insertion loss of ≤0.35 dB ensures efficient signal transmission

Technical details

• Connector A: MPO-PLUS APC Female
• Connector B: MPO-PLUS APC Female
• Fiber Type: OS2 Single-mode 9/125 µm
• Fiber Count: 12
• Cable Length: 2 m
• Polarity: Type B
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss: ≤0.35 dB
• Return Loss: ≥60 dB
• Operating Temperature: -20°C to 70°C

Our verdict

A reliable and high-performance MPO patch cable for demanding fiber optic environments, combining low loss, excellent return loss, and safety-focused jacketing.
