GoodConnections SAT-jakaja F-liittimillä, 4-haarainen, 5-2250 MHz

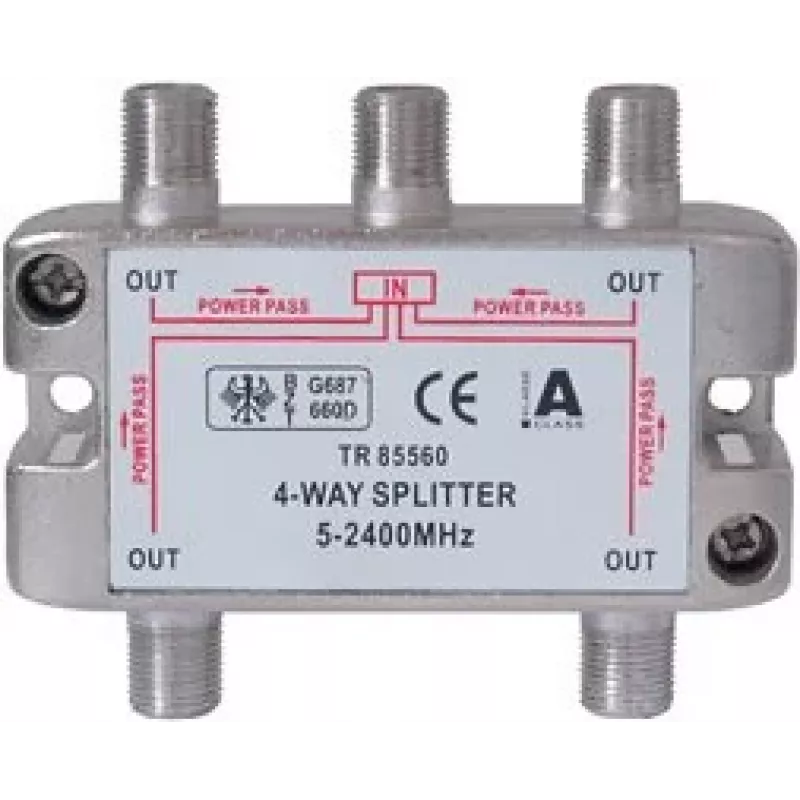

This 4-way SAT trunk distributor from GoodConnections splits a single satellite or cable TV signal into four outputs, covering a wide frequency range from 5 to 2250 MHz. Its die-cast zinc housing and high shielding effectiveness ensure reliable performance in both indoor and outdoor installations.

Advantages

The distributor features low insertion loss and high isolation between outputs, minimizing signal degradation and interference. It supports DC pass on all ports, allowing remote powering of LNBs or amplifiers. The compact, wall-mountable design simplifies installation in tight spaces.

Suitable for

• Satellite TV distribution to multiple receivers
• Cable TV and DVB-T signal splitting
• Residential and commercial installations
• Use with F-connector coaxial cables

Key specifications

• Frequency range: 5 - 2250 MHz
• Number of outputs: 4
• Connector type: F-connector (female)
• Insertion loss: 8.5 - 9.5 dB depending on frequency
• Isolation between outputs: >18 dB
• Return loss: >10 dB
• Shielding effectiveness: >100 dB (Class A)
• Impedance: 75 Ohm
• DC pass: All outputs (max. 24V / 0.5A)
• Housing: Die-cast zinc
• Mounting: Wall mountable

Recommendations

For best results, use high-quality 75-ohm coaxial cables with compression F-connectors. Ensure proper grounding of the antenna system to protect against surges.
