Grafenthal kuitukaapeli OM3 LC/UPC-LC/UPC LSZH 0,50m Aqua Blue

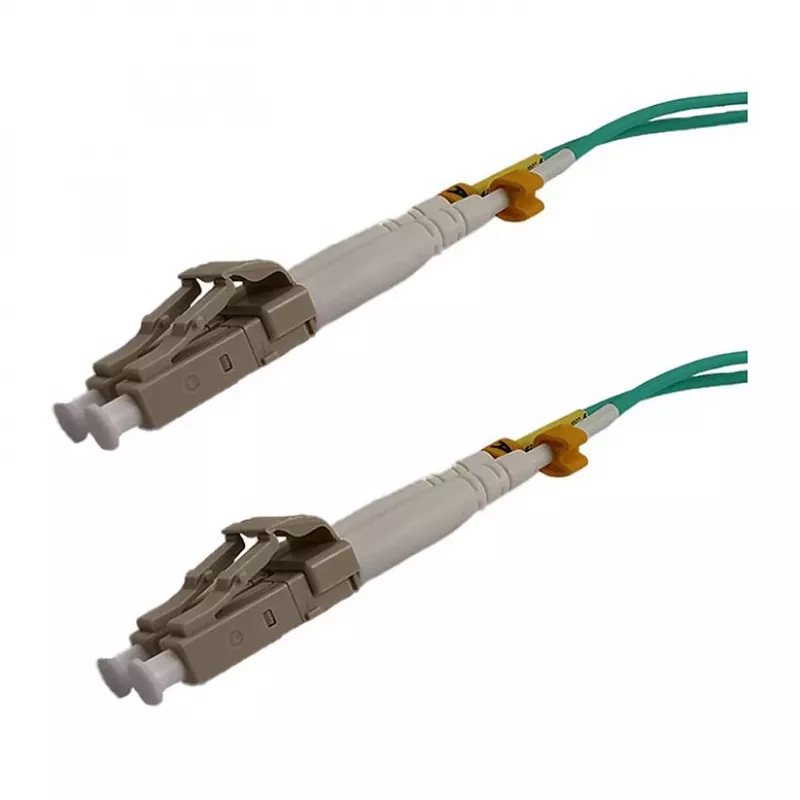

The Grafenthal Optical Fibre Cable OM3 LC/UPC-LC/UPC LSZH 0.50m Aqua Blue is a high-performance duplex multimode fibre patch cable designed for reliable data transmission in demanding network environments. With LC/UPC connectors on both ends and a length of 0.50 metres, this cable is ideal for short-distance connections in data centres, LANs, and SANs. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, while the aqua blue colour indicates OM3 fibre type for easy identification.

Advantages

This fibre optic cable offers exceptional bandwidth and speed, supporting data rates up to 10 Gbps at 850 nm over 300 metres, and up to 100 Gbps over shorter distances. The duplex construction allows simultaneous bidirectional communication, and the UPC polish provides low insertion loss and high return loss for optimal signal integrity. The LSZH jacket minimises toxic smoke and corrosive gas emissions in case of fire, making it suitable for use in public and commercial buildings.

Suitable for

• Data Centres
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx applications
• High-speed server and switch interconnections

Key specifications

• Fibre Type: OM3 Multimode (50/125 µm)
• Connector Type: LC/UPC to LC/UPC
• Cable Length: 0.50 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Colour: Aqua Blue
• Cable Construction: Duplex
• Maximum Data Rate: 10 Gbps (850 nm, up to 300 m), 40 Gbps (up to 100 m), 100 Gbps (up to 70 m)
• Supported Wavelengths: 850 nm / 1300 nm
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Polish Type: UPC
• Minimum Bend Radius: 7.5 mm
• Operating Temperature: -20°C to +70°C
• Standards Compliance: TIA/EIA-568-C.3, IEC 60793, RoHS, CE
• Fibre Count: 2

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/UPC interfaces and is ideal for high-speed network upgrades. Pair with OM3 or OM4 transceivers for best results.
