HARTING Han M20 liitäntäkotelo, M20-kierre, alumiinivalu, IP65/IP67, pölynharmaa

Built around a rugged die-cast aluminium body with a powder-coated finish, this Han M20 coupling housing delivers IP65/IP67 protection for demanding industrial environments. Its M20 x 1.5 cable entry and screw locking mechanism ensure a secure, tool-free connection for cable-to-cable applications. Operating from -40 to +125 °C, it withstands extreme temperatures while maintaining reliable performance.

Overview

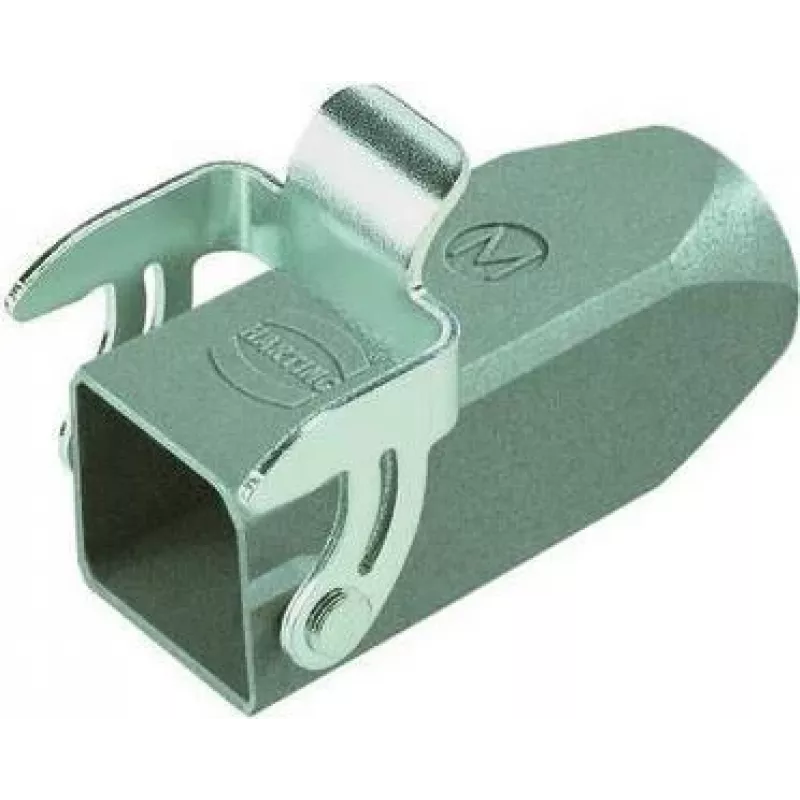

The HARTING 19200031750 is a coupling housing from the Han M20 series, designed to accommodate Han M20 inserts for heavy-duty industrial connectivity. The housing features a single M20 x 1.5 cable entry, allowing for straightforward assembly with standard cable glands. Its free-hanging design makes it ideal for in-line connections where panel mounting is not required. The NBR gasket provides excellent sealing against dust and moisture, contributing to the high protection rating.

What stands out

• Die-cast aluminium construction with powder coating for durability and corrosion resistance.
• IP65/IP67 rating ensures protection against dust and temporary immersion.
• Wide operating temperature range from -40 to +125 °C for use in harsh conditions.
• Screw locking mechanism provides a secure and vibration-resistant connection.
• Compatible with Han M20 inserts, offering flexibility for various contact configurations.

Technical details

• Series: Han M20
• Housing type: Coupling housing
• Cable entry thread: M20 x 1.5
• Number of cable entries: 1
• Locking mechanism: Screw locking
• Housing material: Die-cast aluminium
• Surface finish: Powder-coated
• Colour: Dusty grey (RAL 7037)
• Protection rating: IP65 / IP67
• Operating temperature range: -40 to +125 °C
• Gasket material: NBR (Nitrile Butadiene Rubber)
• Mounting type: Free-hanging (cable-to-cable)
• RoHS compliant: Yes

Our verdict

A robust and reliable coupling housing for industrial applications, the HARTING 19200031750 offers excellent environmental protection and mechanical strength. Its compatibility with Han M20 inserts makes it a versatile choice for power and signal connections in automation, machinery, and transportation.
