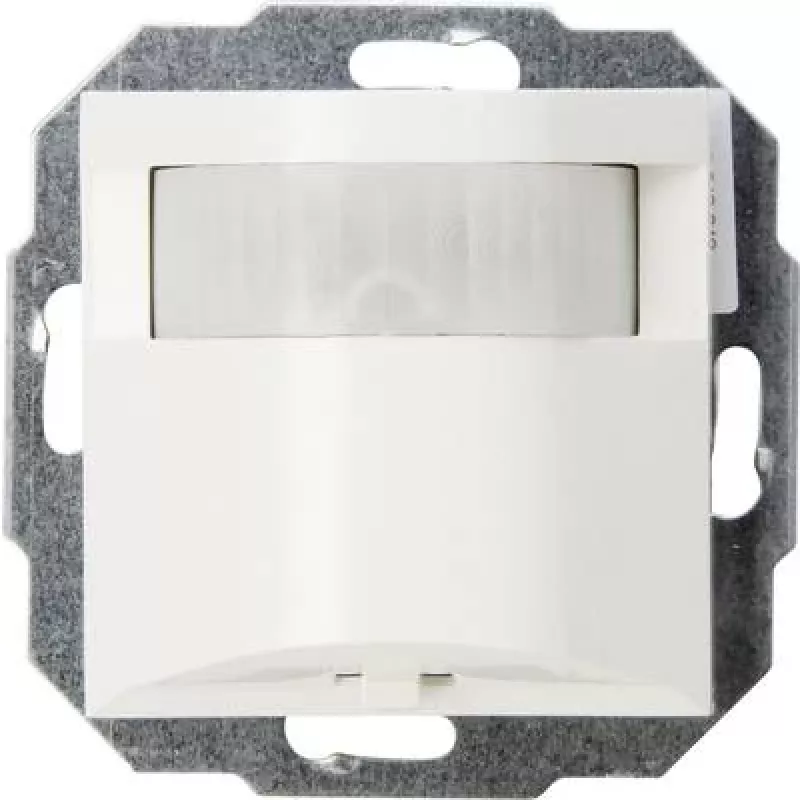

HEINRICH KOPP 808429557 uppoasennettava liiketunnistin 180° puhtaanvalkoinen IP20

For electricians and homeowners installing a discreet motion sensor in a hallway, stairwell, or utility room, the HEINRICH KOPP 808429557 provides automatic lighting control with a 180° detection angle. It is designed for flush mounting in a standard wall box, blending seamlessly into the wall surface in pure white.

Key specifications

• Detection angle: 180°
• Mounting type: Flush-mount (Unterputz)
• Colour: Pure white (Reinweiß)
• IP rating: IP20
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (incandescent/halogen): 1000 W
• Max. switching capacity (LED/ESL): 300 W
• Detection range: max. 12 m at 2.5 m installation height
• Time setting: 10 seconds to 7 minutes (adjustable)
• Brightness threshold: 3 to 2000 lux (adjustable)
• Recommended installation height: 1.0 - 1.8 m
• Sensor type: Passive infrared (PIR)
• Housing material: Plastic (PC)
• Self-consumption: < 0.5 W
• Operating temperature: -20°C to +40°C
• Switching contact: 1 NO contact

Why choose it

This motion detector offers flexible adjustment of light duration and twilight threshold to match your needs. Its flush-mount design keeps the sensor unobtrusive, while the wide detection angle covers large areas efficiently.

Ideal use cases

• Automatic lighting in hallways and corridors
• Stairwell lighting control
• Utility rooms and storage areas
• Indoor spaces where a discreet sensor is preferred

Good to know

The device is suitable for indoor use only (IP20). It operates on standard 230 V mains and can switch both traditional and LED/energy-saving lamps up to the specified limits.
