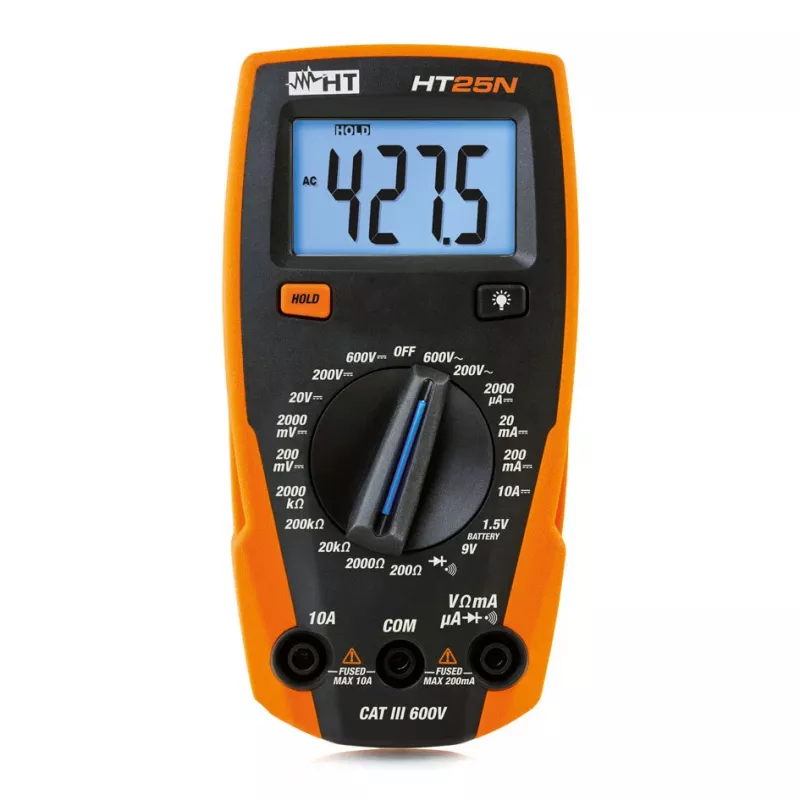

HT Instruments HT25N digitaalinen yleismittari CAT III 600V, 2000 counts 1010170

When you need reliable electrical measurements in the field, the HT Instruments HT25N digital multimeter provides accurate readings for voltage, current, resistance, and more. Its CAT III 600V safety rating ensures safe operation on building installations, while the 2000-count display gives clear visibility of measured values.

Who is it for

Electricians, technicians, and electronics hobbyists who require a dependable multimeter for troubleshooting and maintenance tasks. The HT25N is suitable for both professional and home use, offering essential measurement functions in a compact, handheld design.

Main features

• 2000-count LCD display with data hold
• CAT III 600V safety rating for building installations
• Auto ranging for ease of use
• Measures DC/AC voltage, DC/AC current, resistance, capacitance, frequency, and temperature (with K-type probe)
• Diode and continuity tests with buzzer
• Powered by 2x 1.5V AAA batteries (not included)

Specifications

• Display: 2000 counts, LCD
• Safety rating: CAT III 600V
• DC voltage range: 200mV - 600V
• AC voltage range: 2V - 600V
• DC current range: 200µA - 10A
• AC current range: 200µA - 10A
• Resistance range: 200Ω - 20MΩ
• Capacitance range: 2nF - 200µF
• Frequency range: 20Hz - 20kHz
• Temperature measurement range: -20°C to 750°C (with K-type probe)
• Diode test: Yes
• Continuity test: Yes, with buzzer
• Auto ranging: Yes
• Data hold: Yes
• True RMS: No
• Input impedance (DCV): 10MΩ
• Overload protection: Yes
• Power supply: 2x 1.5V AAA batteries

Tips

For temperature measurements, use a K-type thermocouple probe (not included). The auto-ranging function simplifies operation, but manual range selection is also available for advanced users.
