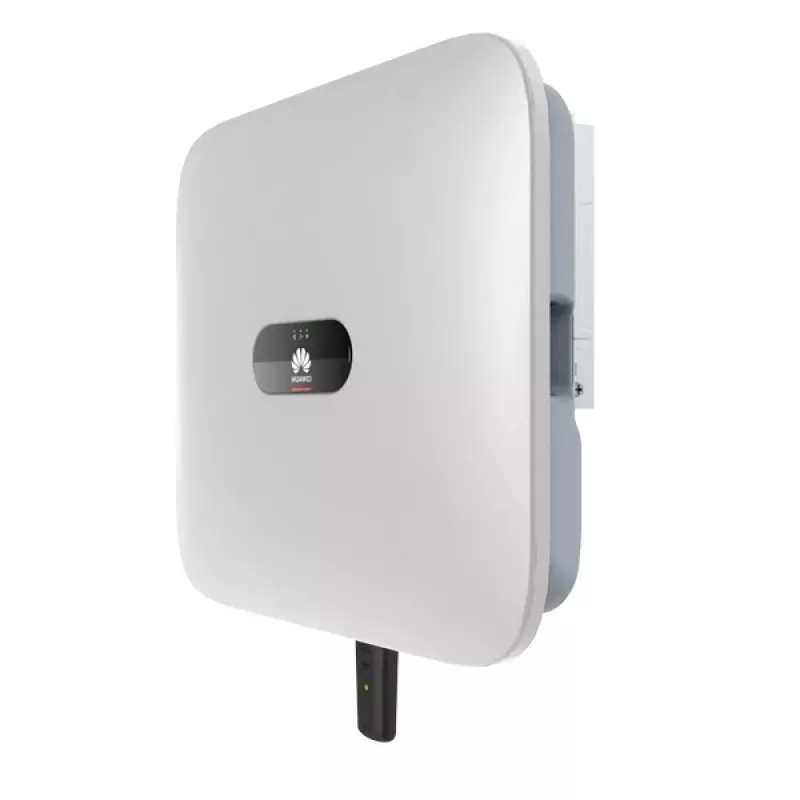

Huawei SUN2000-10KTLM1-HC 10kW 3-vaiheinen verkkoon kytketty string-invertteri

The Huawei SUN2000-10KTLM1-HC is a high-performance 3-phase grid-tied string inverter designed for commercial and industrial solar installations. With a nominal AC power of 10,000 W and a maximum apparent power of 11,000 VA, it delivers exceptional efficiency and reliability. Featuring 2 MPPTs and support for high-current inputs, this inverter maximizes energy harvest from modern high-power PV modules.

Advantages

High efficiency up to 98.6% with natural convection cooling ensures silent operation (<29 dB). Integrated AI-powered AFCI and PID recovery enhance safety and system longevity. The inverter is battery-ready and includes DC and AC surge protection (Type II).

Suitable for

• Commercial and industrial rooftop or ground-mounted PV systems
• Three-phase grid connections requiring high power output
• Systems with high-power modules (up to 12.5 A per MPPT)

Key specifications

• AC Nominal Power: 10,000 W
• Max AC Apparent Power: 11,000 VA
• Number of MPPTs: 2
• Max DC Input Voltage: 1100 V
• MPPT Voltage Range: 160 V - 950 V
• Max Input Current per MPPT: 12.5 A
• Protection Degree: IP65
• Communication: WLAN, RS485 (optional Ethernet/4G)
• Operating Temperature: -25°C to +60°C

Recommendations

Pair with Huawei's Smart Dongle for remote monitoring and control. Compatible with Huawei Luna battery systems for energy storage integration.
