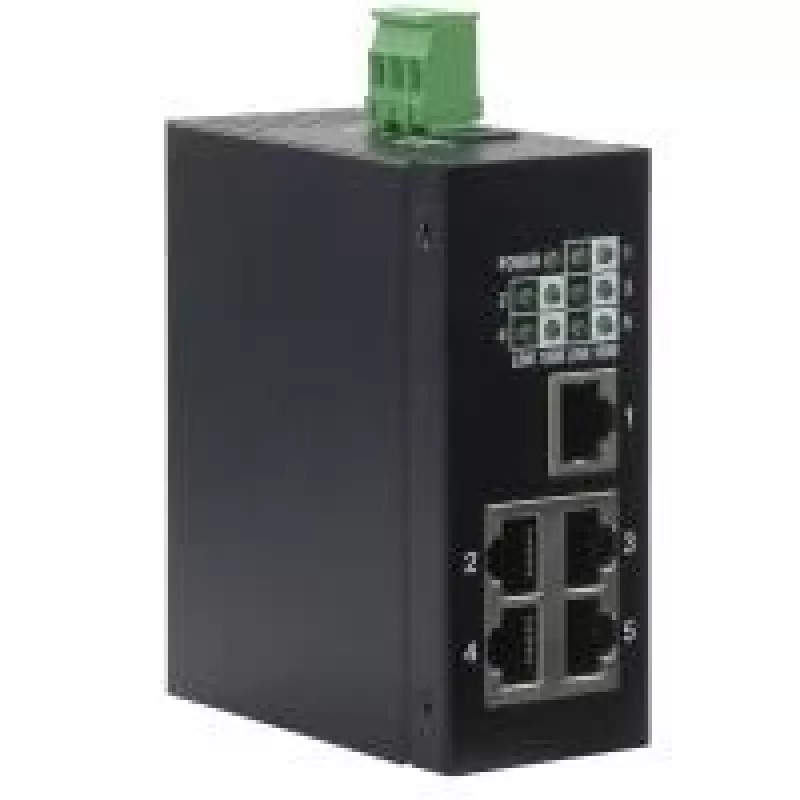

Industrial Switch ROLINE 5x RJ-45 hallitsematon

The ROLINE Industrial Switch ROLINE 5x RJ-45 unmanaged is an unmanaged Fast Ethernet switch with five shielded 10/100 Base-T copper ports. Designed for industrial environments, it supports full- and half-duplex flow control, offers a MAC address table of 1000 entries and accepts a wide DC input voltage range for flexible installation.

Advantages

This unmanaged switch provides reliable connectivity without configuration, supports Auto MDI/MDI-X to simplify cabling and implements IEEE 802.3x flow control for full-duplex and back-pressure flow control for half-duplex operation. It is compact, supports DIN-rail mounting and operates in a wide temperature range suitable for temperature-critical environments.

Suitable for

• Small industrial networks and machine-to-machine communication
• Factory automation and control cabinets (DIN-rail mountable)
• Edge devices such as IP cameras, PLCs and sensors requiring 10/100 Mbps links

Key specifications

• Ports: 5 × shielded RJ-45 10/100 Base-T copper ports
• Operation: Unmanaged switch
• MAC address table: 1000 entries
• Power input: 5–30 V DC via terminal block or DC power jack (6.3 mm / 2.0 mm)
• Power consumption: max. 2.2 W
• Operating temperature: -10 °C to +70 °C
• Mounting: DIN-rail
• Dimensions (WxDxH): 40 × 80 × 95 mm
• Recommended power supply: ROLINE 21.13.1226

How to use

Mount the switch on a DIN-rail or place it in an appropriate enclosure. Connect devices to the RJ-45 ports using shielded Cat5e/Cat6 cables. Provide DC power within the 5–30 V range either via the terminal block or the DC power jack (6.3 mm / 2.0 mm). The switch is plug-and-play and does not require configuration; Auto MDI/MDI-X handles crossover detection automatically.

Recommendations

Use a 21.13.1226 ROLINE power supply or an equivalent DC source that meets the voltage and current requirements. Ensure proper grounding and shielding for industrial installations and keep the device within the specified operating temperature range for reliable long-term operation.
