INFRALAN A-DQ(ZN)B2Y OM3 12G (1x12) Fca 2000N musta 5,8mm kuitukaapeli A12M3F1

This fiber optic cable features a robust construction with 12 multimode OM3 fibers in a single loose tube, supporting high-speed data transmission up to 100 meters for 40/100 Gigabit Ethernet and 300 meters for 10 Gigabit Ethernet. The A-DQ(ZN)B2Y design ensures excellent tensile strength of 2000 N and UV resistance, making it suitable for both indoor and outdoor installations.

Advantages

The OM3 fibers offer a high effective modal bandwidth of 2000 MHz·km at 850 nm, enabling reliable high-bandwidth performance. The black polyethylene jacket provides durability and protection against environmental factors, while the 5.8 mm outer diameter allows for easy handling and installation in various settings.

Suitable for

• Data centers requiring high-speed backbone connections
• Enterprise networks with 10G/40G/100G Ethernet links
• Indoor and outdoor installations where UV resistance and high tensile strength are needed

Key specifications

• Fiber type: Multimode OM3
• Fiber count: 12 (1x12 configuration)

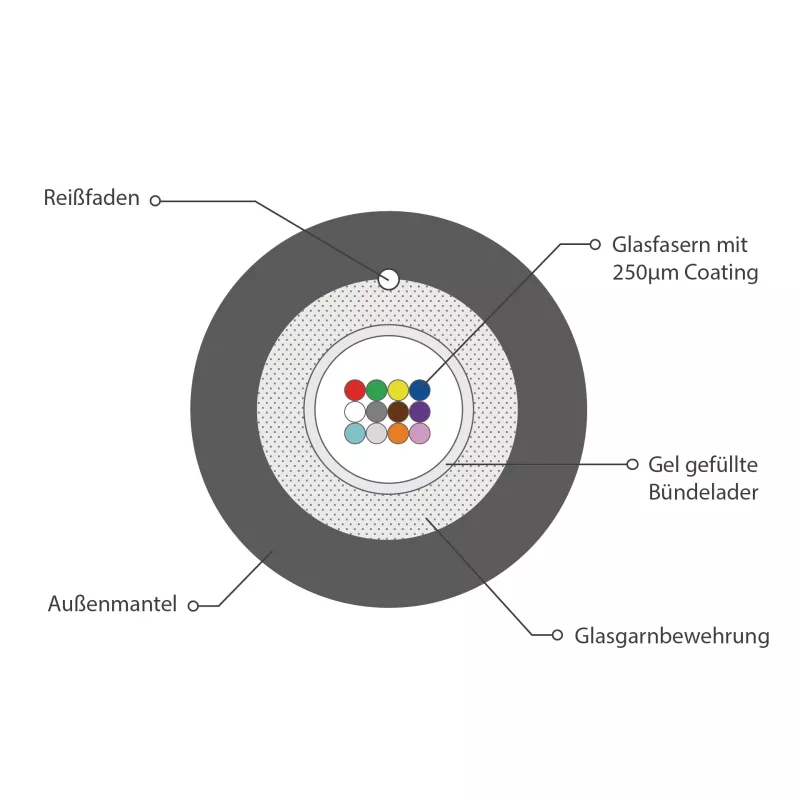

• Cable construction: A-DQ(ZN)B2Y
• Outer diameter: 5.8 mm
• Jacket color: Black
• Jacket material: PE (Polyethylene)
• Tensile strength: 2000 N
• Fire performance class: Fca
• Attenuation: ≤ 3.5 dB/km @ 850 nm, ≤ 1.5 dB/km @ 1300 nm
• Bandwidth: 2000 MHz·km @ 850 nm (EMB), 500 MHz·km @ 1300 nm (OFL)

Recommendations

Ideal for high-density fiber installations where space is limited but performance cannot be compromised. The 12-fiber loose tube design allows for efficient use in trunking applications, and the robust jacket ensures long-term reliability in challenging environments.
