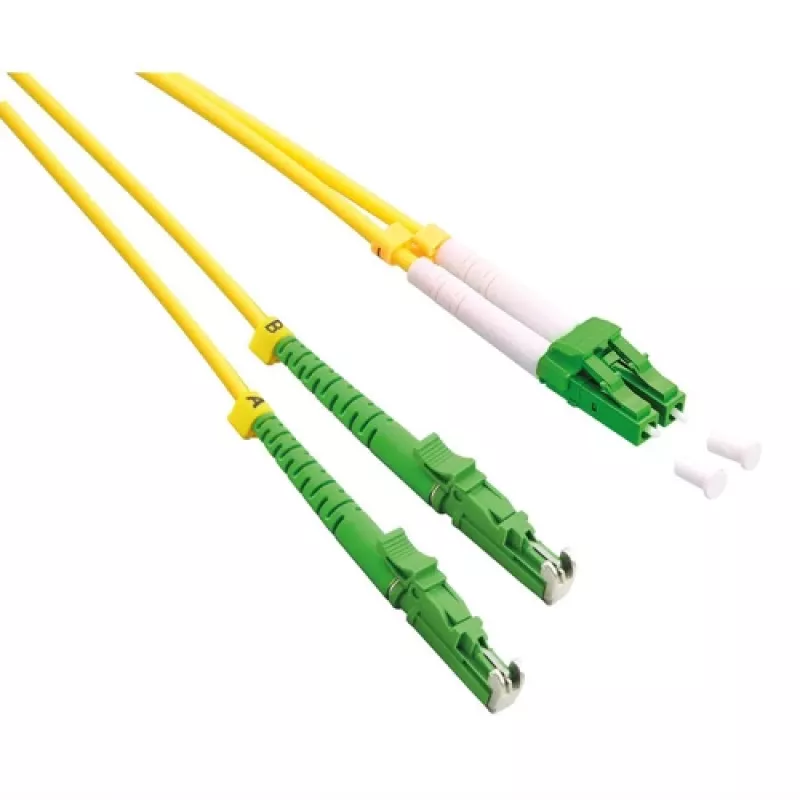

ROLINE kuituoptinen kaapeli duplex 9/125µm OS2 - LSH/LC - APC Cut - LSOH - keltainen - 10 m

The ROLINE fiber optic cable duplex 9/125µm OS2 is a high-performance single-mode patch cable designed for reliable data transmission in demanding network environments. With a length of 10 meters, it features LSH (E-2000) to LC connectors with APC polish, ensuring low insertion loss and high return loss. The cable is constructed with LSOH (Low Smoke Zero Halogen) jacket material, making it safe for use in confined spaces. Its yellow colour indicates single-mode fibre, and the duplex design supports bidirectional communication.

Advantages

This cable offers excellent signal integrity over long distances due to its OS2 single-mode fibre and APC polish. The LSOH jacket reduces toxic smoke emission in case of fire, enhancing safety. The duplex configuration allows simultaneous transmission and reception, ideal for high-speed networks.

Suitable for

• Data centres and server rooms requiring high-density cabling
• Telecommunications and broadband networks
• FTTx (Fibre to the x) installations
• Industrial environments where safety and performance are critical

Key specifications

• Connector 1: LSH (E-2000)
• Connector 2: LC
• Connector Polish: APC (Angled Physical Contact)
• Fibre Type: OS2 Single-mode 9/125µm
• Cable Length: 10 m
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Colour: Yellow
• Cable Construction: Duplex
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥60 dB (APC)

Recommendations

For optimal performance, ensure connectors are cleaned before use. This cable is compatible with standard SFP transceivers and patch panels. Store in a clean, dry environment.
