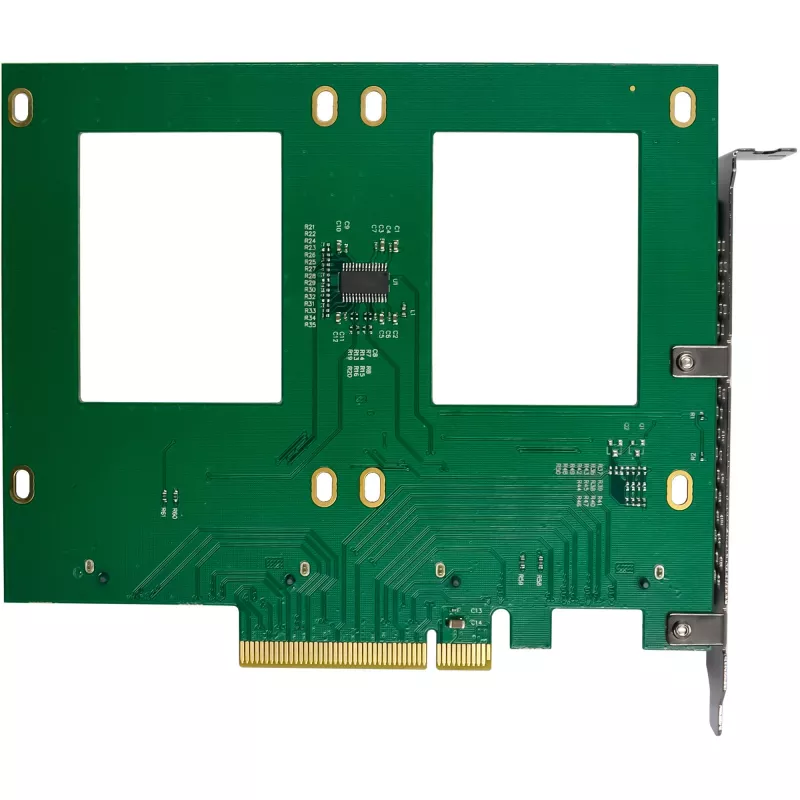

InLine 76660P sisäinen U.2-sovitin PCIe uros 4 Gbit/s 3,3 V

Supports two 2.5-inch NVMe SSDsfor maximum performance and flexibility
PCIe 3.0 x8 connectionwith up to 64 Gb/s bandwidth
Automatic lane detection (bifurcation)for optimum system integration
LED indicatorsfor easy fault diagnosis and operating status
No additional driver required- native Windows and Linux support

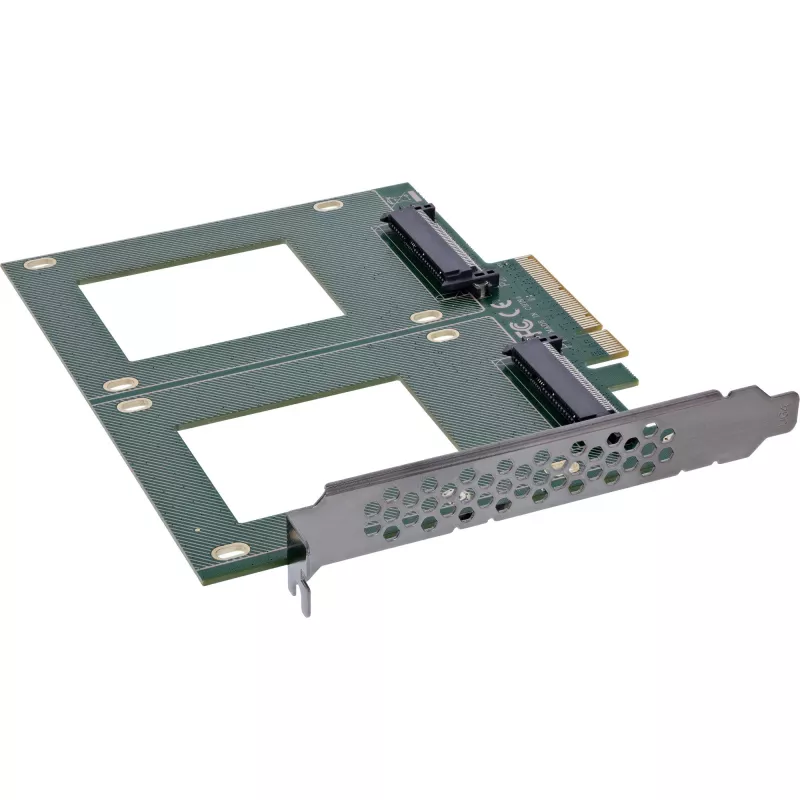

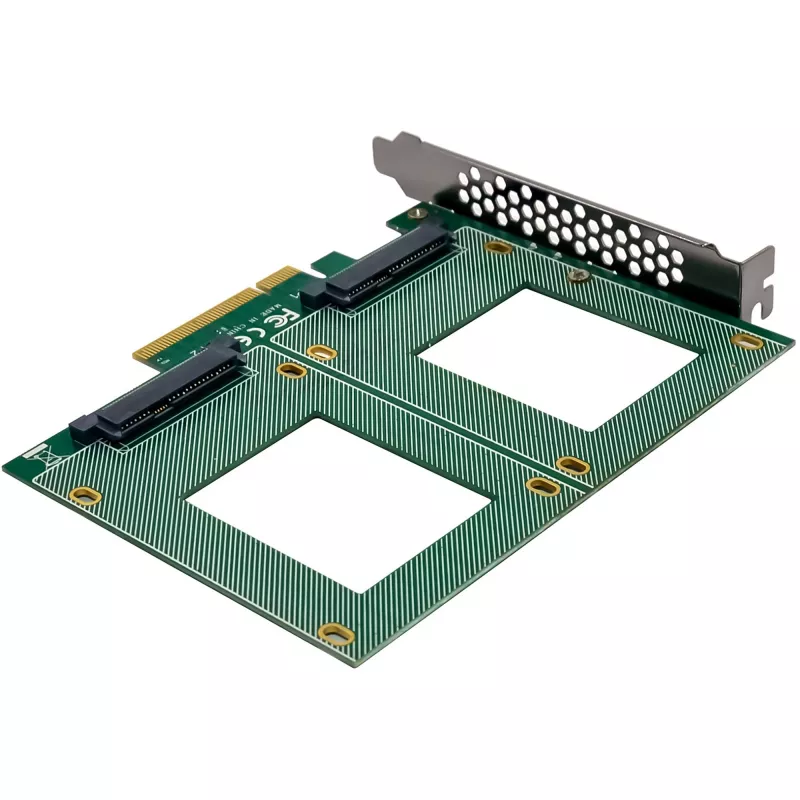

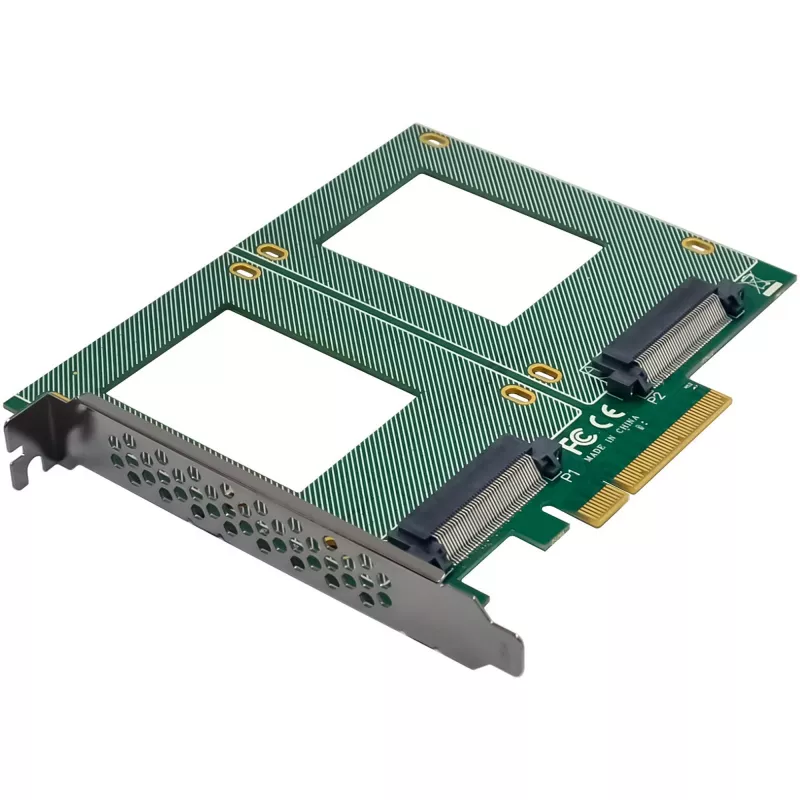

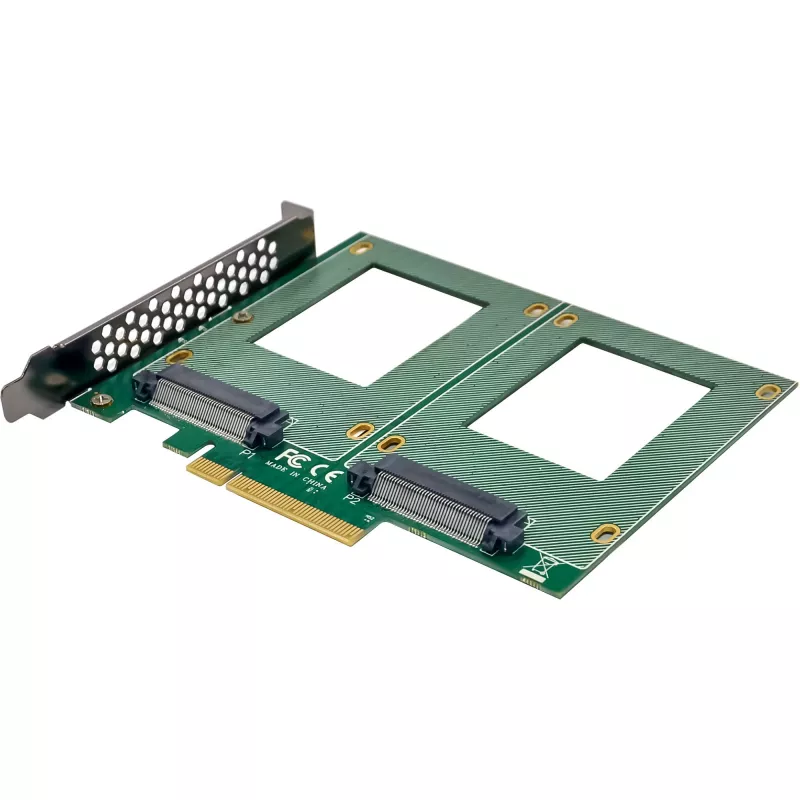

The InLine® PCI Express cardexpands your system with two internal U.2 NVMe SSD slotsand enables the parallel operation of two SSDswith full PCIe bandwidth. Thanks to automatic lane detection, configuration is carried out for optimum system integration.
With a PCIe 3.0 x8 interface, the card offers a maximum bandwidth of up to 64 Gb/s, with each U.2 port supporting a data rate of up to 4 GB/s. LED indicators for read and write activitymake it easy to monitor the operating status.
Note on dimensions:
The card has a length of 143 mmand a width of 122 mm. Please check that your housing offers sufficient space for installation and that adequate ventilation is ensured.
Technical data:

Bus type & PCIe: PCIe 3.0 (8 GT/s) x8 lanes (offers up to 64 Gb/s bandwidth)

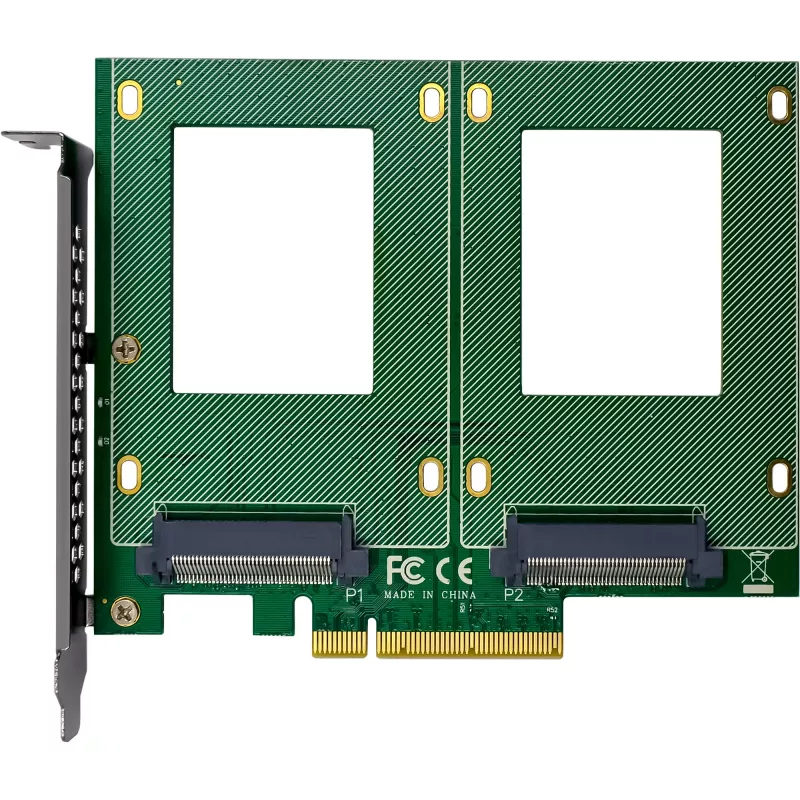

Connector interfaces: 2 x SFF-8639 connectors (for the installation of 2.5-inch NVMe SSDs)
Chipset: PI6C20400BLE
Compatible U.2 devices: Supports 2.5-inch NVMe SSDs according to SFF-8639 standard
Data rate: Each port supports transfer rates of up to 4 GB/s
Dimensions: 143 mm x 122 mm (PCIe board)

Operating conditions:

Operating temperature: -40 °C to +85 °C

Functions:

Automatic detection of the lane configuration during boot

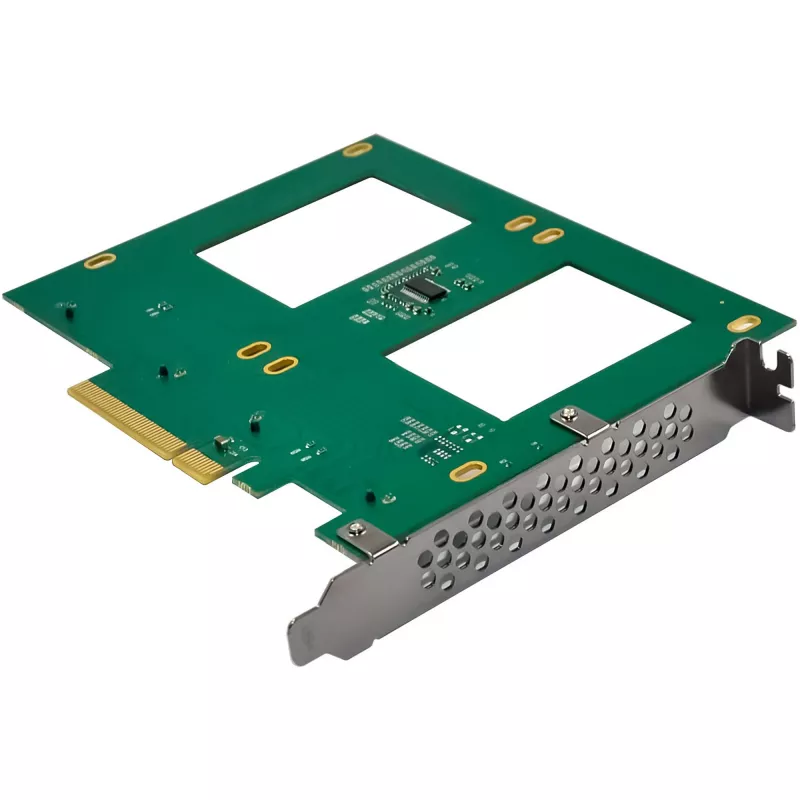

Onboard LED indicators (2x read/write activity LEDs)
The U.2 SSDs obtain their power supply directly via the PCIe bus (3.3 V)
No additional driver required

System requirements:Hardware:

PC with one free PCIe 3.0 x8 (or x16 slot)
Motherboard that supports PCIe bifurcation

BIOS/UEFI settings for PCIe bifurcation:
In order for both U.2 NVMe SSDs to be operated simultaneously, the PCIe slot used must often be set to Bifurcation modein the BIOS/UEFI. This splits the available PCIe lanes into several channels (e.g. one x8 slot into two x4 channels).
The exact designation varies depending on the motherboard manufacturer and BIOS/UEFI version. Terms such as "PCIe Bifurcation", "Lane Splitting"or "PCIe Slot Configuration"may be used. Please consult your mainboard manual for the correct setting and then check whether both NVMe SSDs are recognized.
Operating system support:

Windows: 11, 10, 8, 7
Windows Server: 2012 R2
Linux: Native support (Fedora, SUSE, Ubuntu, Red Hat)

Scope of delivery:

1 x InLine® PCI Express card to 2x internal U.2 NVMe SFF-8639

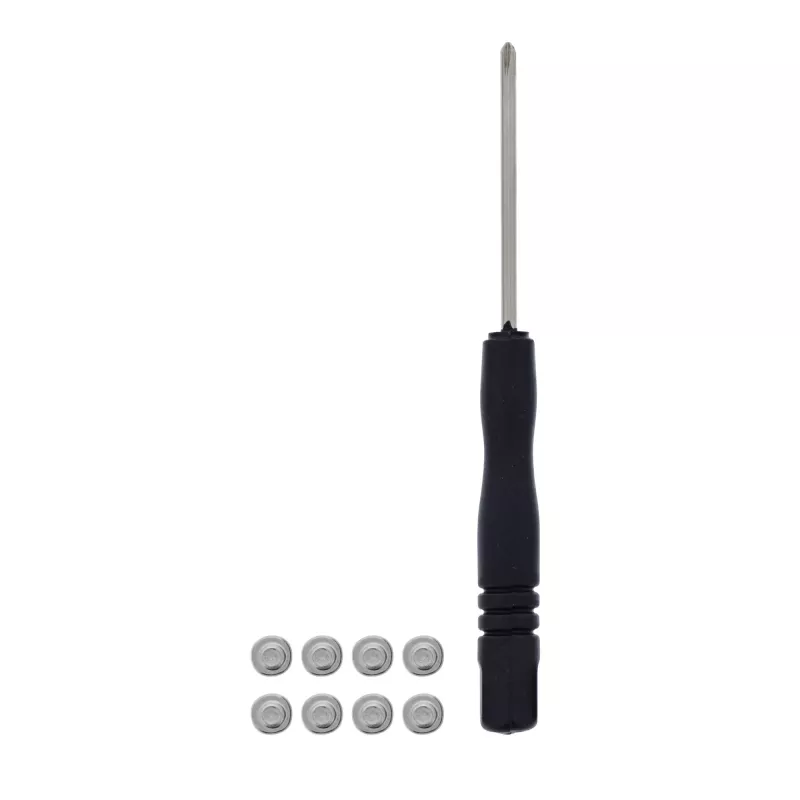

1 x hand screwdriver
8 x screws
1 x instruction manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine 76660P. Host interface: PCIe, Output interface: U.2, Host interface gender: Male. Country of origin: Taiwan. Data transfer rate (max): 4 Gbit/s, Bandwidth: 64 Gbit/s. Power supply input voltage: 3.3 V. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Server operating systems supported: Windows Server 2012 R2

How to use

Install the InLine PCIe card into a free PCIe 3.0 x8 or x16 slot on a compatible motherboard. Secure the card and connect two 2.5" U.2 NVMe SSDs to the SFF-8639 connectors. Ensure the system has adequate chassis space (143 mm × 122 mm) and ventilation. Power for the drives is provided through the PCIe slot; no additional power cables are required. Boot the system and check BIOS/UEFI to confirm device recognition.

Recommendations

To operate both U.2 NVMe SSDs simultaneously, enable PCIe bifurcation (lane splitting) in the motherboard BIOS/UEFI if required. The BIOS setting may be named “PCIe Bifurcation”, “Lane Splitting”, or “PCIe Slot Configuration”; consult your mainboard manual for exact instructions. After configuring bifurcation, verify both NVMe drives are detected by the OS.
