InLine 76660R sisäinen U.2-liitäntäkortti PCIe uros 4 Gbit/s

Supports four 2.5-inch NVMe SSDsfor maximum performance and flexibility
PCIe 3.0 x16 connectionwith up to 128 Gb/s bandwidth
Automatic lane detection (bifurcation)for optimum system integration
LED indicatorsfor easy fault diagnosis and operating status
No additional driver required- native Windows and Linux support

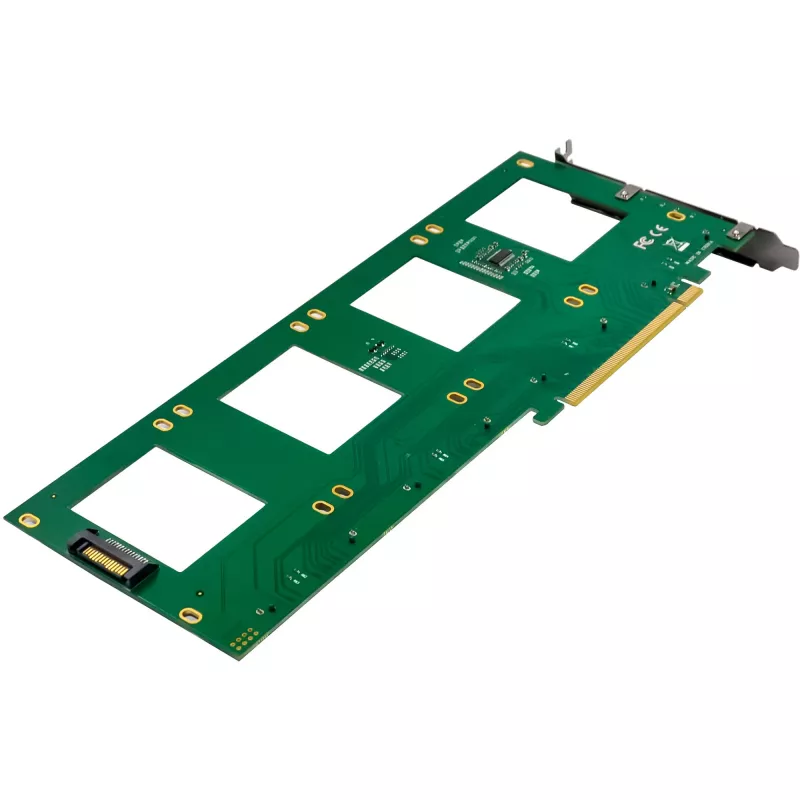

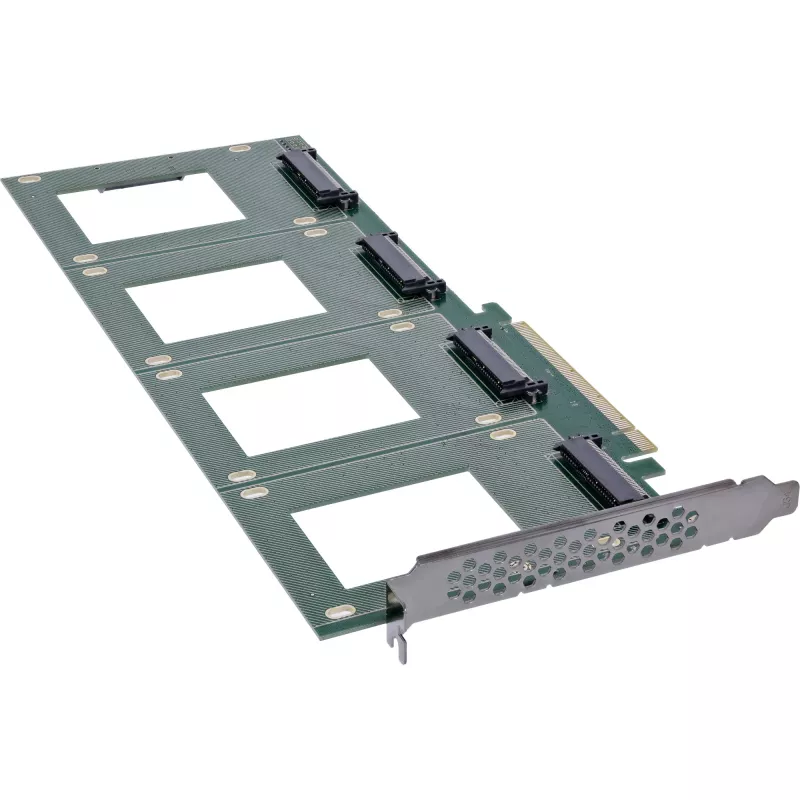

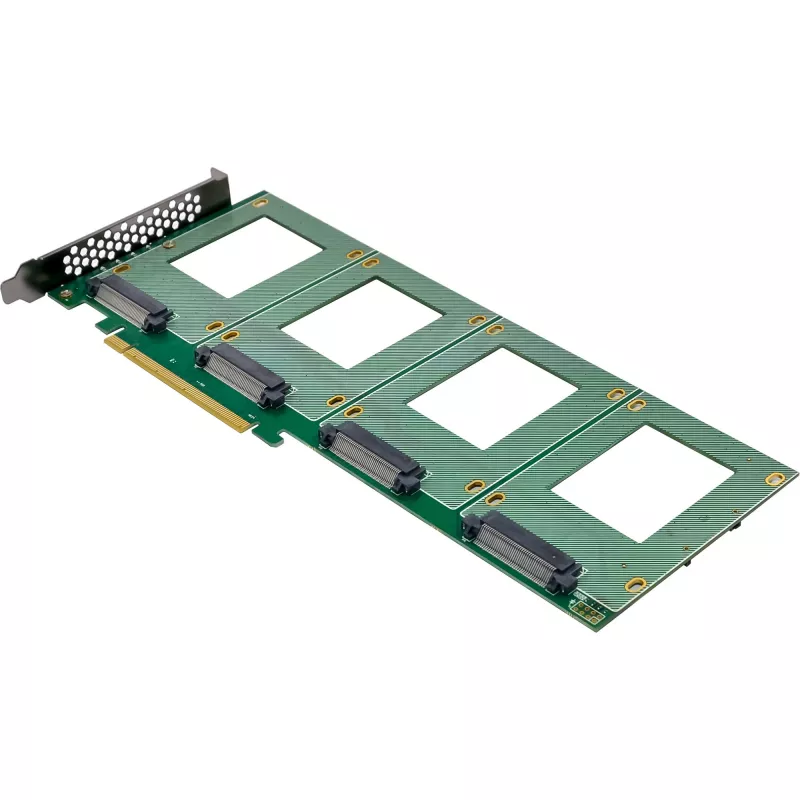

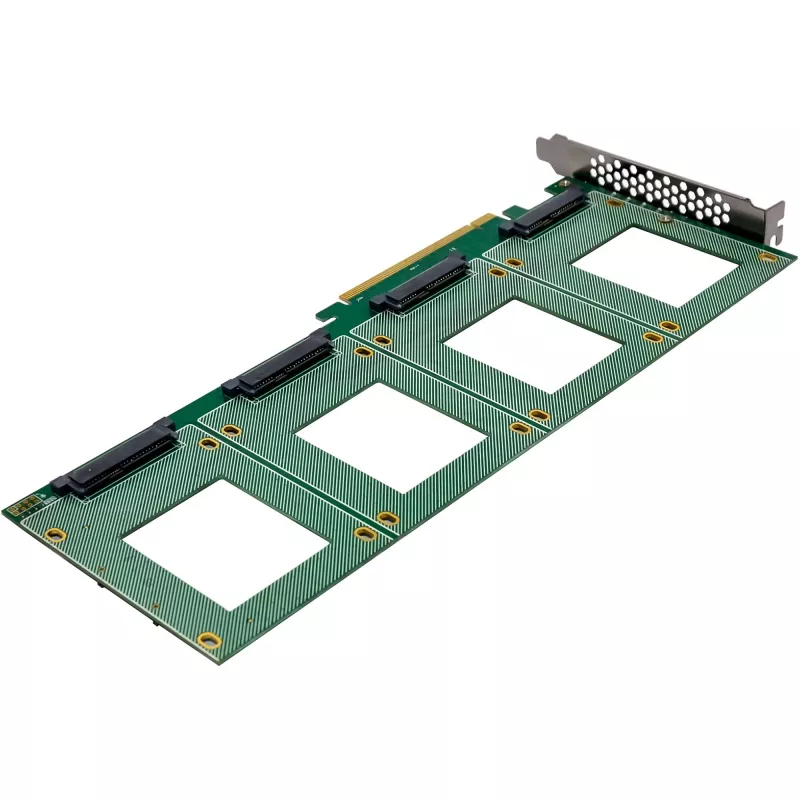

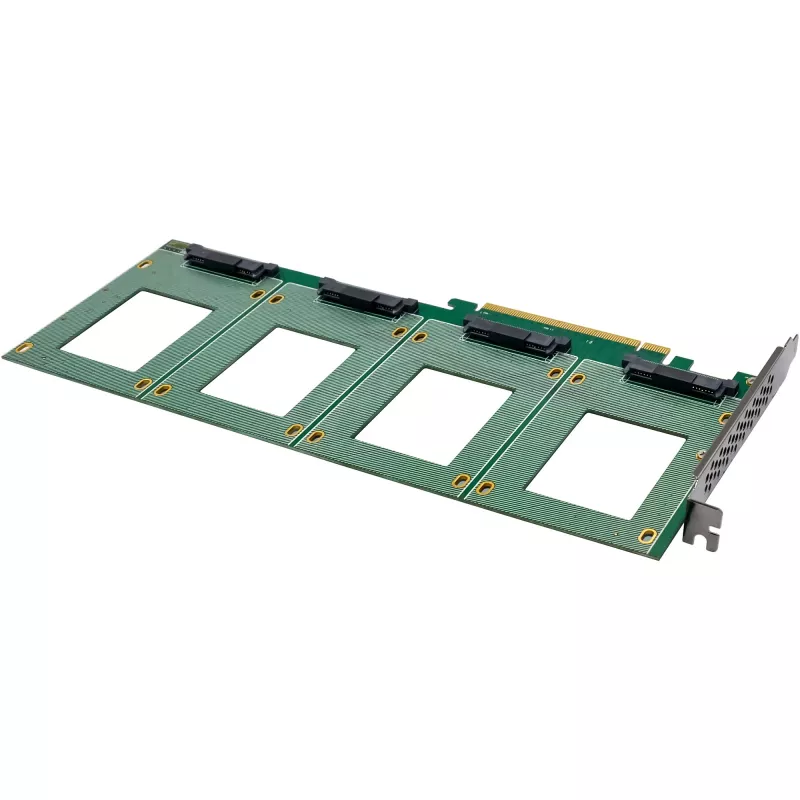

The InLine® PCI Express cardexpands your system with four internal U.2 NVMe SSD slotsand enables parallel operation of four SSDswith full PCIe bandwidth. Thanks to automatic lane detection, configuration is carried out for optimum system integration.
With a PCIe 3.0 x16 interface, the card offers a maximum bandwidth of up to 128 Gb/s, with each U.2 port supporting a data rate of up to 4 GB/s. LED indicators for read and write activitymake it easy to monitor the operating status.
Technical data:

Bus type & PCIe: PCIe 3.0 (8 GT/s) x16 lanes (offers up to 128 Gb/s bandwidth)

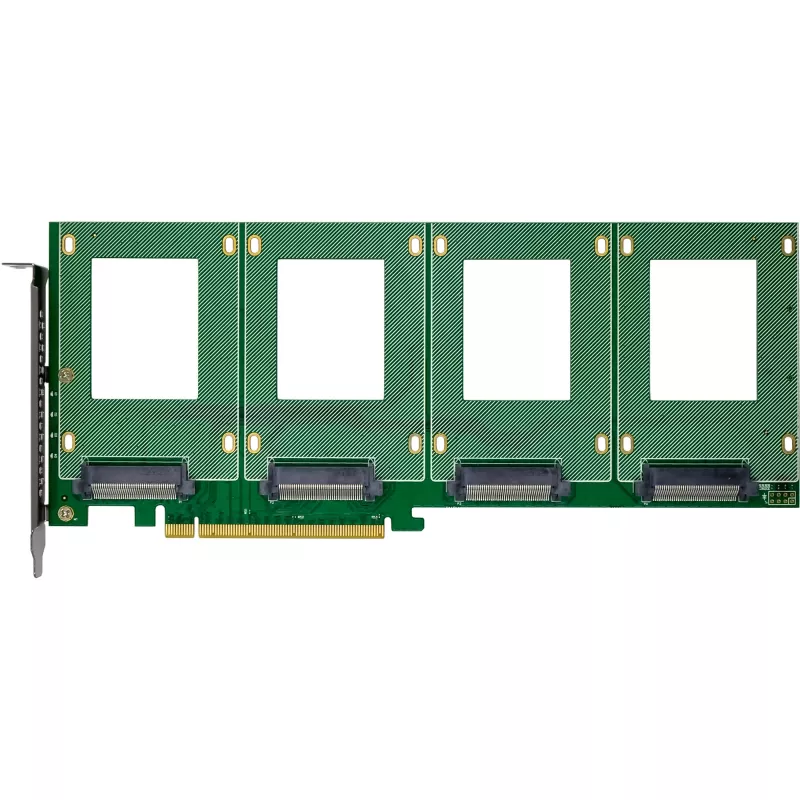

Connector interfaces: 4 x SFF-8639 connectors (for the installation of 2.5-inch NVMe SSDs)

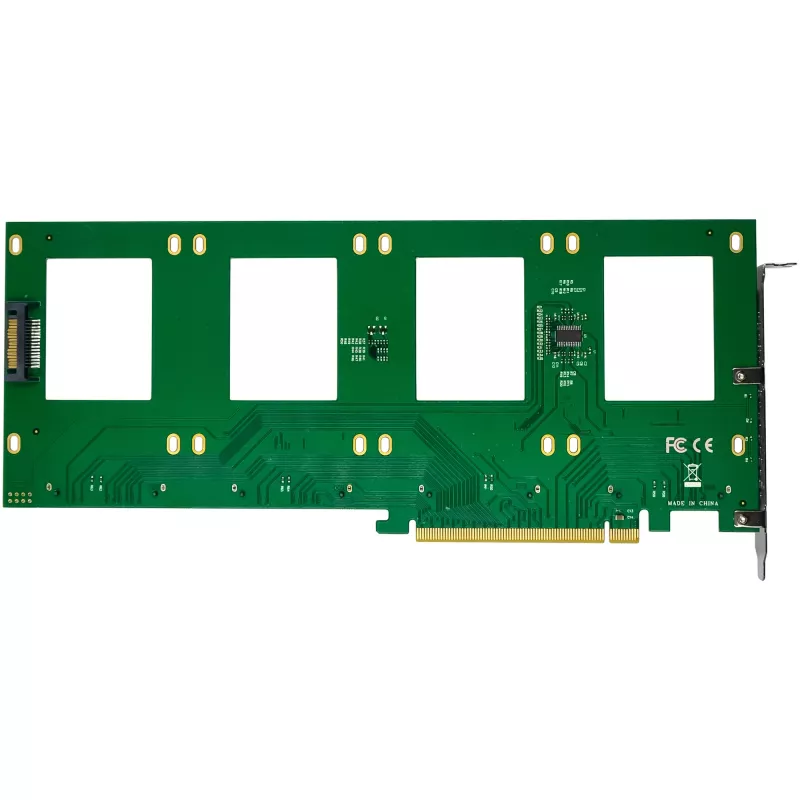

Chip set: PI6C20400BLE
Compatible U.2 devices: Supports 2.5-inch NVMe SSDs according to SFF-8639 standard
Data rate: Each port supports transfer rates of up to 4 GB/s
Dimensions: 288 mm x 122 mm (PCIe board)

Operating conditions:

Operating temperature: -40 °C to +85 °C

Functions:

Automatic detection of the lane configuration during boot
Onboard LED indicators (2x read/write activity LEDs)
The U.2 SSDs obtain their power supply directly via the PCIe bus (3.3 V)
No additional driver required

System requirements:Hardware:

PC with one free PCIe 3.0 x16 (or x16 slot)
Motherboard that supports PCIe bifurcation

BIOS/UEFI settings for PCIe bifurcation:
In order for both U.2 NVMe SSDs to be operated simultaneously, the PCIe slot used must often be set to Bifurcation modein the BIOS/UEFI. This divides the available PCIe lanes into several channels (e.g. one x16 slot into four x4 channels).
The exact designation varies depending on the motherboard manufacturer and BIOS/UEFI version. Terms such as "PCIe Bifurcation", "Lane Splitting"or "PCIe Slot Configuration"may be used. Please consult your mainboard manual for the correct setting and then check whether all NVMe SSDs are recognized.
Operating system support:

Windows: 11, 10, 8, 7
Windows Server: 2012 R2
Linux: Native support (Fedora, SUSE, Ubuntu, Red Hat)

Scope of delivery:

1 x InLine® PCI Express card to 4x internal U.2 NVMe SFF-8639

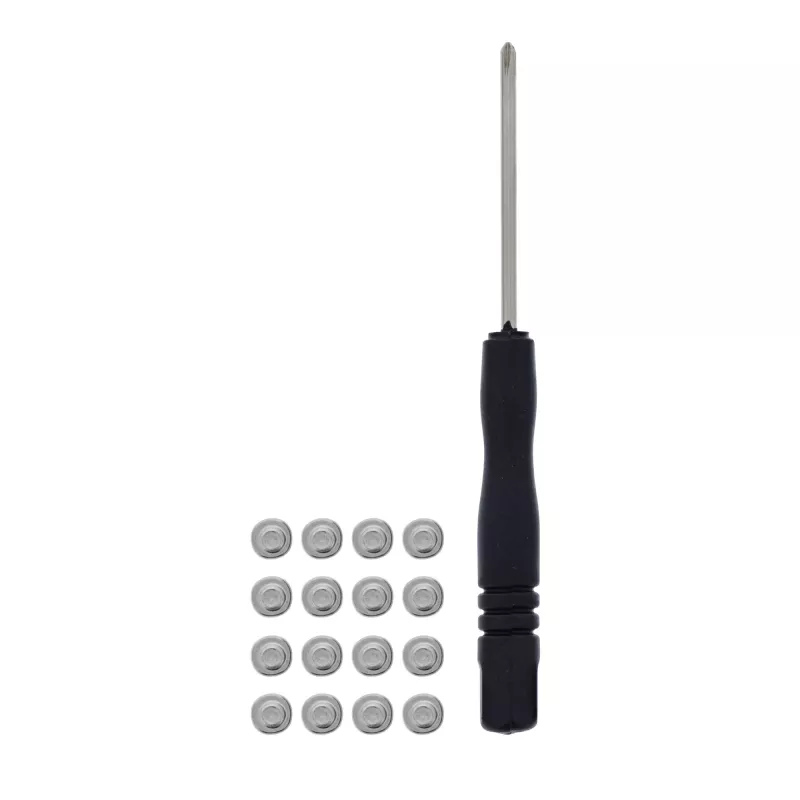

1 x hand screwdriver
8 x screws
1 x instruction manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine 76660R. Host interface: PCIe, Output interface: U.2, Host interface gender: Male. Country of origin: Taiwan. Chipset: PI6C20400BLE, Data transfer rate (max): 4 Gbit/s, Bandwidth: 128 Gbit/s. Power supply input voltage: 3.3 V. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Server operating systems supported: Windows Server 2012 R2

How to use

Install the card into a free PCIe 3.0 x16 slot on a compatible motherboard and secure it with the supplied screws. Insert up to four SFF-8639 (U.2) NVMe SSDs into the connectors. Ensure the system BIOS/UEFI is configured for PCIe bifurcation (for example x16 -> x4/x4/x4/x4) if you want all drives to be recognized and used simultaneously. The drives receive power through the PCIe bus; no additional power cables or drivers are required for supported operating systems.

Recommendations

Check your motherboard manual for the exact BIOS/UEFI setting name (such as "PCIe Bifurcation", "Lane Splitting" or "PCIe Slot Configuration") and confirm the board supports bifurcation. Verify OS compatibility (Windows 11/10/8/7, Windows Server 2012 R2, or supported Linux distributions) and test drive recognition after changing BIOS settings.
