InLine puristuspihtisarja, verkkoliittimille, RJ45 8P8C ja RJ11 6P4C

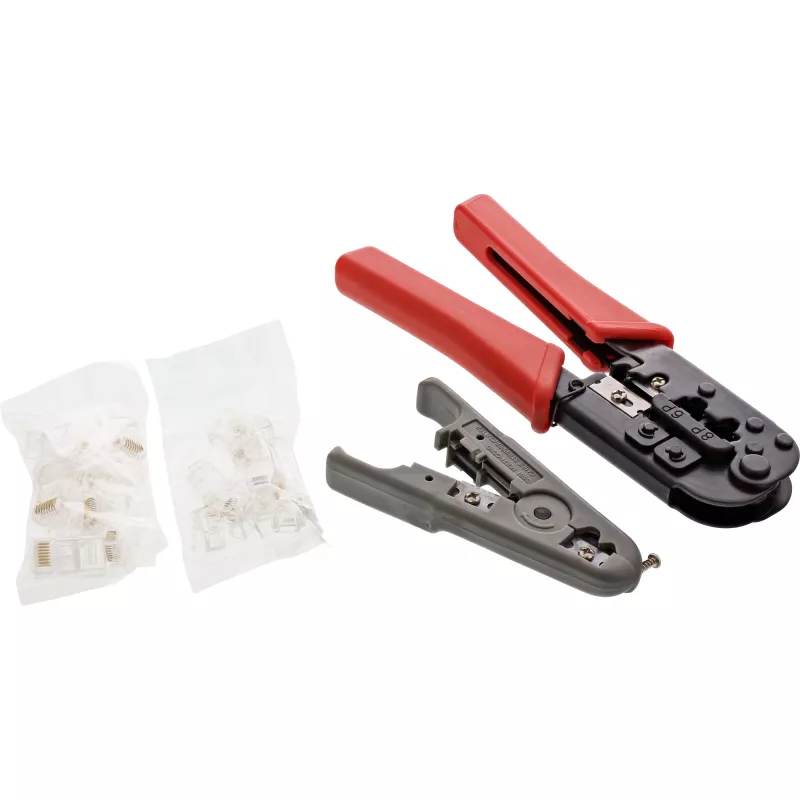

The InLine Crimp Tool Kit for Network Plug RJ45 8P8C RJ11 6P4C (model 74100I) is a compact crimping tool designed to terminate modular network and telephone connectors. The kit includes the crimp tool with a red ergonomic handle suitable for field work and small repair tasks, providing the functionality required for installing or repairing Ethernet (RJ45) and telephone (RJ11) cables.

Advantages

The crimp tool supports both RJ45 8P8C and RJ11 6P4C connectors, offering versatility for network and telephone cabling. Its red handle is shaped for a secure grip and easier control during repeated crimps. The compact, lightweight design makes the tool easy to carry and store, and it is suitable for quick on-site repairs and installation tasks.

Suitable for

• Crimping RJ45 8P8C connectors for Ethernet cables
• Crimping RJ11 6P4C connectors for telephone cables
• Small network installations and repairs
• DIY cabling projects and technician toolkits

Key specifications

• Brand: InLine
• Model / MPN: 74100I
• EAN: 4043718250356
• Connector types: RJ45 (8P8C) and RJ11 (6P4C)
• Handle color: Red
• Design: Compact, lightweight crimping tool

How to use

Strip the cable jacket and arrange the conductor wires according to the connector pinout standard (e.g., T568A/T568B for Ethernet). Insert the wires into the RJ45 or RJ11 connector until they reach the end. Place the connector into the crimping slot of the InLine tool and squeeze the handles firmly and evenly until the connector pins are pressed into the conductors and the connector latch is secured. Inspect the terminated connector visually and test the cable with an appropriate network tester where available.

Recommendations

Use the tool with compatible RJ45 (8P8C) and RJ11 (6P4C) connectors and appropriate cable types; avoid excessive force beyond a single firm crimp to prevent damage to connectors. Store the tool in a dry place to prevent corrosion and check crimps with a cable tester to ensure reliable connections.
