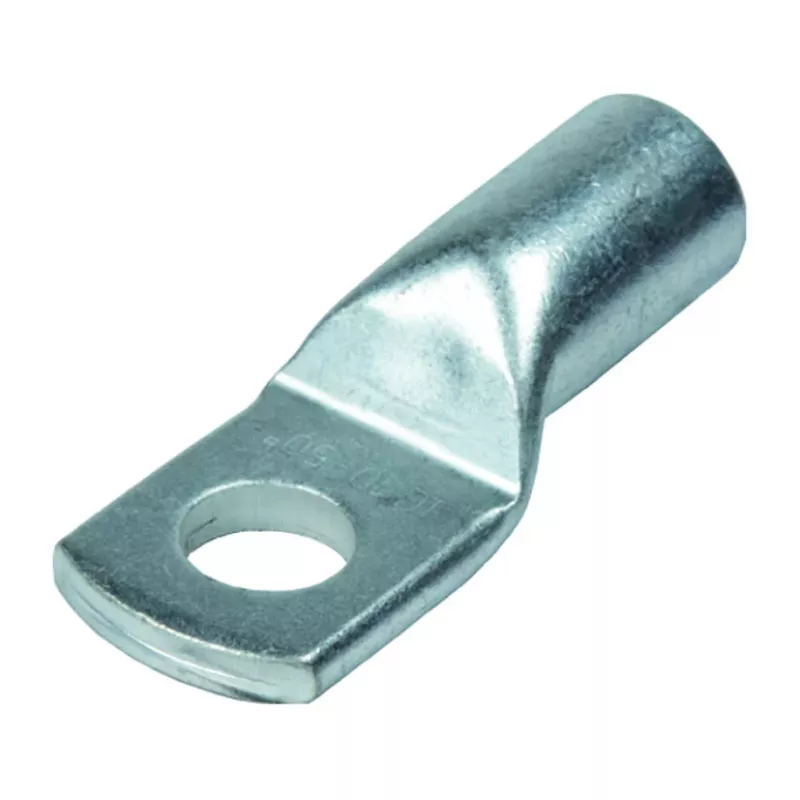

Intercable ICR958 putkikaapelikenkä 95 mm² M8 tinattu R-sarja

With a conductor cross-section of 95 mm² and an M8 bolt hole, the Intercable ICR958 tubular cable lug delivers high-conductivity connections for demanding power applications. Its tin-plated electrolytic copper construction ensures excellent corrosion resistance and reliable performance in switchgear, control panels, and power cable terminations.

Overview

The ICR958 is part of Intercable's R-Series, engineered for crimped connections on fine and extra-fine stranded copper conductors. The tubular barrel design provides uniform compression and a secure mechanical bond, while the inspection hole allows visual confirmation of proper conductor insertion. Compliant with DIN 46235, this lug is suitable for voltages up to 1000 V AC/DC and operates reliably from -55°C to +150°C.

What stands out

• Tin-plated electrolytic copper for high conductivity and corrosion resistance
• Inspection hole for easy verification of conductor placement
• Designed for 95 mm² cables with M8 stud size
• Meets DIN 46235 standards for consistent quality
• Wide operating temperature range for harsh environments

Technical details

• Product type: Tubular cable lug
• Material: Electrolytic copper (E-Cu), tin-plated
• Cable cross-section: 95 mm²
• Bolt hole diameter: 8 mm (M8)
• Series: R-Series
• Connection method: Crimp
• Standard compliance: DIN 46235
• Operating temperature: -55°C to +150°C
• Voltage rating: Up to 1000 V AC/DC
• Inspection hole: Yes
• Applications: Power cables, switchgear, control panels

Our verdict

The Intercable ICR958 is a robust and reliable choice for professional electrical installations. Its high-quality materials and compliance with industry standards make it a dependable component for critical power connections.
