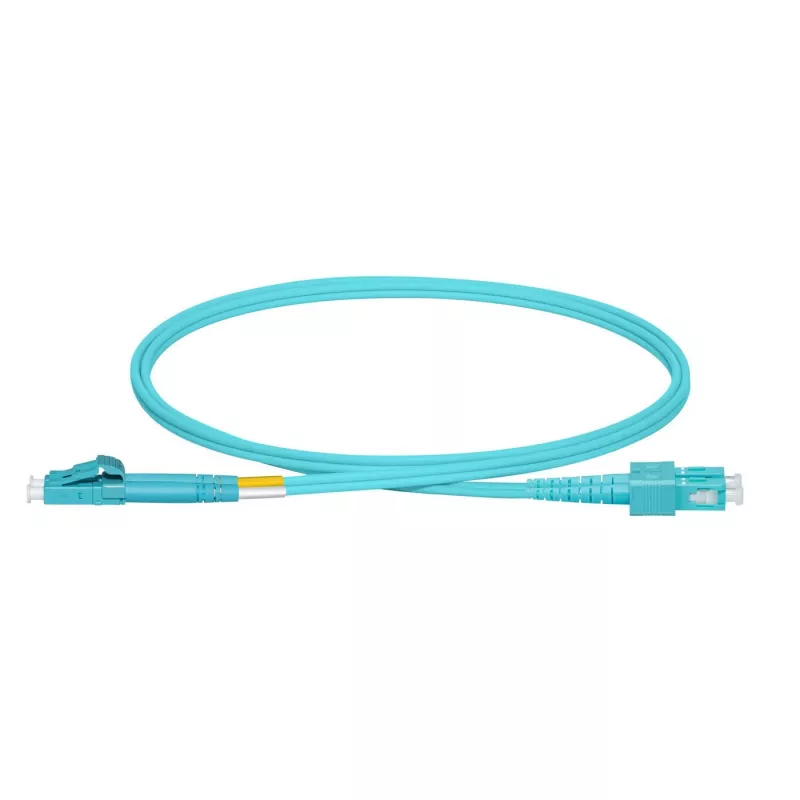

Lanview LVO231303 InfiniBand/kuitu-kaapeli 2 m 2x LC 2x SC akvaarinsininen

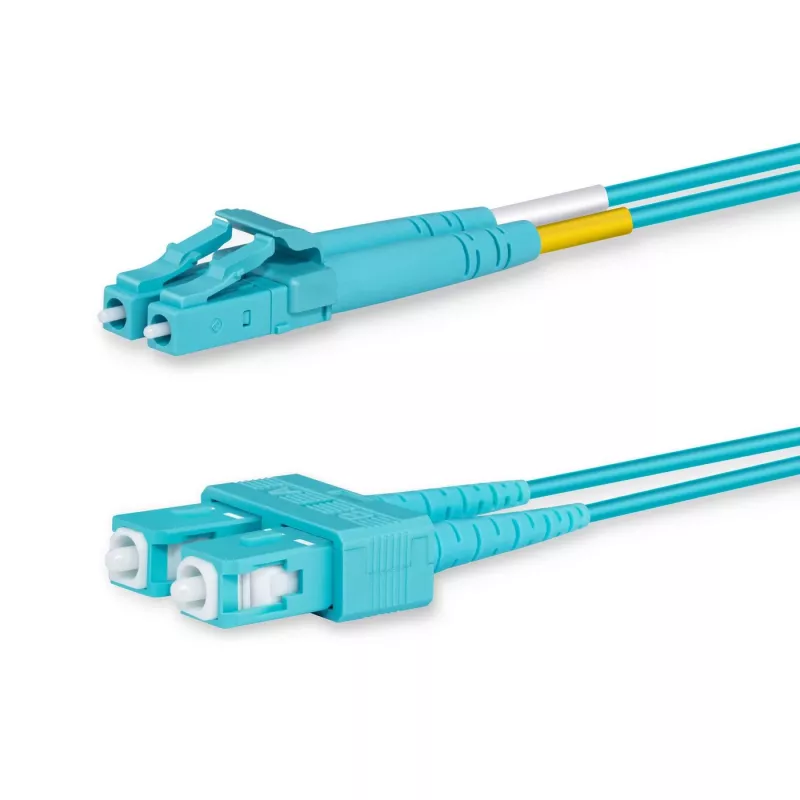

The Lanview LVO231303 is a 2 m OM3 multimode bend-insensitive fibre optic cable with 2x LC to 2x SC connectors, designed for full-duplex high-speed data links. The cable uses 50/125 µm core/cladding multimode fibre in an aqua LSZH jacket and supports common SFP+/transceiver modules for 10G, 40G and 100G Ethernet connections where OM3 multimode is required.

Advantages

Bend-insensitive OM3 multimode construction reduces attenuation when the cable is bent or routed tightly, simplifying installation and maintenance. The 50/125 µm core diameter and OM3 specification ensure compatibility with 10G SR and other short-range transceivers. The LSZH outer jacket meets common safety standards and minimizes smoke and toxic gas in case of fire.

Suitable for

• 10G Ethernet links using 10G SR or SFP+ transceivers
• Short-range 40G/100G multimode connections (where OM3 is supported)
• Data centre patching and rack-to-rack connectivity
• FTTx and enterprise network backbones requiring multimode fibre

Key specifications

• Product: Lanview LVO231303
• Cable length: 2 m
• Connectors: 2x LC to 2x SC (full duplex)
• Fibre type: OM3 multimode, 50/125 µm
• Jacket: LSZH (aqua)
• Weight: 0.033 kg
• EAN: 5704174319801

How to use

Route the Lanview LVO231303 patch cord between corresponding LC and SC ports on transceivers, patch panels or network devices, taking care to match transmit and receive pairs for full-duplex operation. Avoid excessive bending beyond the manufacturer’s minimum bend radius and secure the cable to prevent strain on connectors. Clean connector end faces before mating to ensure optimal optical performance.

Recommendations

Use this OM3 50/125 µm cable for short-reach multimode applications such as 10G SR and SFP+ modules; for longer distances or single-mode requirements, select appropriate multimode grade or single-mode fibre accordingly.
