LogiLink kuitu-pigtail-sarja 12 x SC OS2 2m, värillinen, sininen liitin

With a typical insertion loss of ≤ 0.3 dB and return loss ≥ 50 dB, this 12-fiber OS2 single-mode pigtail set delivers exceptional signal integrity for high-speed optical networks. Each 2-meter pigtail features a blue SC/UPC connector and a 9/125 µm core/cladding, meeting TIA/EIA-598-C color coding for easy identification.

Overview

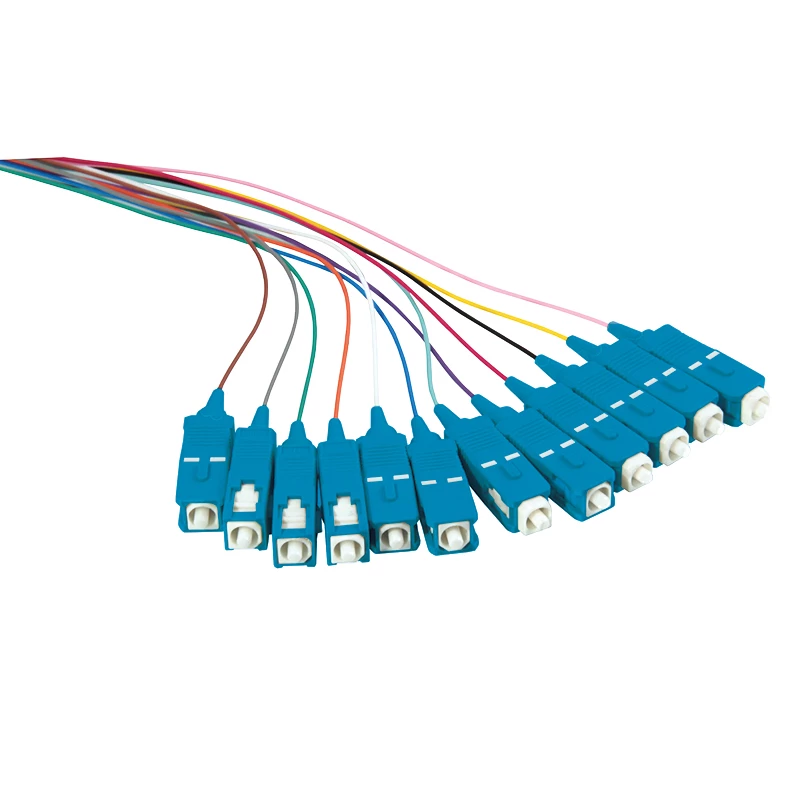

The LogiLink FL0SC02 is a professional-grade fiber pigtail set comprising 12 individual OS2 single-mode pigtails, each 2 meters long. Designed for splicing into patch panels, ODFs, and telecommunication networks, these pigtails provide a reliable connection between fiber optic cables and equipment. The SC/UPC connectors feature zirconia ceramic ferrules for precise alignment and durability, while the LSZH jacket ensures low smoke and zero halogen emissions in case of fire.

What stands out

• 12-color coded pigtails following TIA/EIA-598-C for easy fiber identification.
• Low insertion loss (≤ 0.3 dB) and high return loss (≥ 50 dB) for optimal performance.
• LSZH jacket material for enhanced safety in enclosed spaces.
• Blue SC/UPC connectors with zirconia ceramic ferrules for long-term reliability.
• Wide operating temperature range from -20°C to +70°C.

Technical details

• Fiber type: OS2 single-mode, 9/125 µm core/cladding.
• Number of fibers: 12 (individual pigtails).
• Connector type: SC/UPC, blue color.
• Pigtail length: 2 meters each.
• Jacket material: LSZH (Low Smoke Zero Halogen).
• Cable diameter: 0.9 mm tight buffer.
• Ferrule material: Zirconia ceramic.
• Insertion loss: ≤ 0.3 dB.
• Return loss: ≥ 50 dB.
• Operating temperature: -20°C to +70°C.
• Storage temperature: -40°C to +85°C.
• Compliance: RoHS, REACH.

Our verdict

An excellent choice for structured cabling projects requiring reliable, colour-coded single-mode pigtails with top-tier optical performance.
