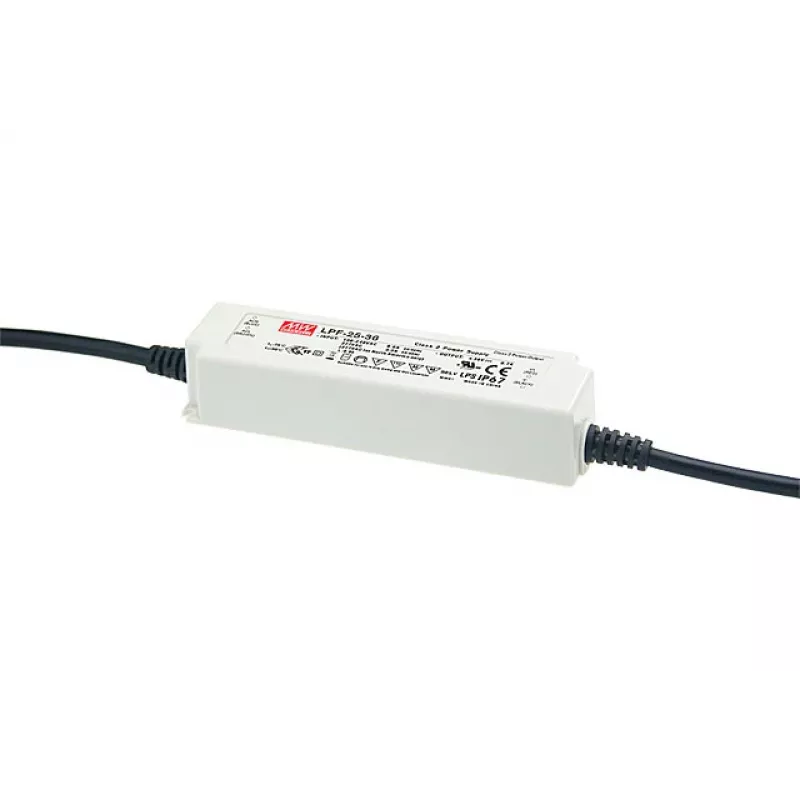

Mean Well LPF-25-36 25W 36V LED-ajuri IP67

The Mean Well LPF-25-36 is a high-performance LED driver designed for indoor and outdoor lighting applications. With a compact plastic housing and IP67 rating, it delivers 25W of power at 36V DC with constant voltage and constant current modes. Ideal for LED strips, signage, and decorative lighting.

Advantages

Active PFC for high power factor, up to 88% efficiency, and 5-year warranty ensure reliability and energy savings. Wide input range (90-305 VAC) and free air convection cooling make it versatile for various environments.

Suitable for

• LED strip lighting
• Signage and channel letters
• Indoor and outdoor decorative lighting
• Industrial lighting systems

Key specifications

• Output Power: 25 W
• Output Voltage: 36 V DC
• Output Current: 0.7 A
• Input Voltage: 90 ~ 305 VAC / 127 ~ 431 VDC
• Input Frequency: 47 ~ 63 Hz
• Efficiency: Up to 88%
• Power Factor: >0.9 at 60% load
• Protection: Short Circuit, Over Current, Over Voltage, Over Temperature
• IP Rating: IP67
• Operating Temperature: -40 ~ +70°C
• Cooling: Free Air Convection
• Safety Class: Class II
• Certifications: UL, cUL, TUV, CE, CB, ENEC
• Housing Material: Plastic
• Warranty: 5 Years

Recommendations

For best performance, ensure adequate ventilation and do not exceed the rated output. Suitable for dry and damp locations.
