Metabo 630138000 pikakiinnitin 300 mm leveys, 140 mm ulottuma

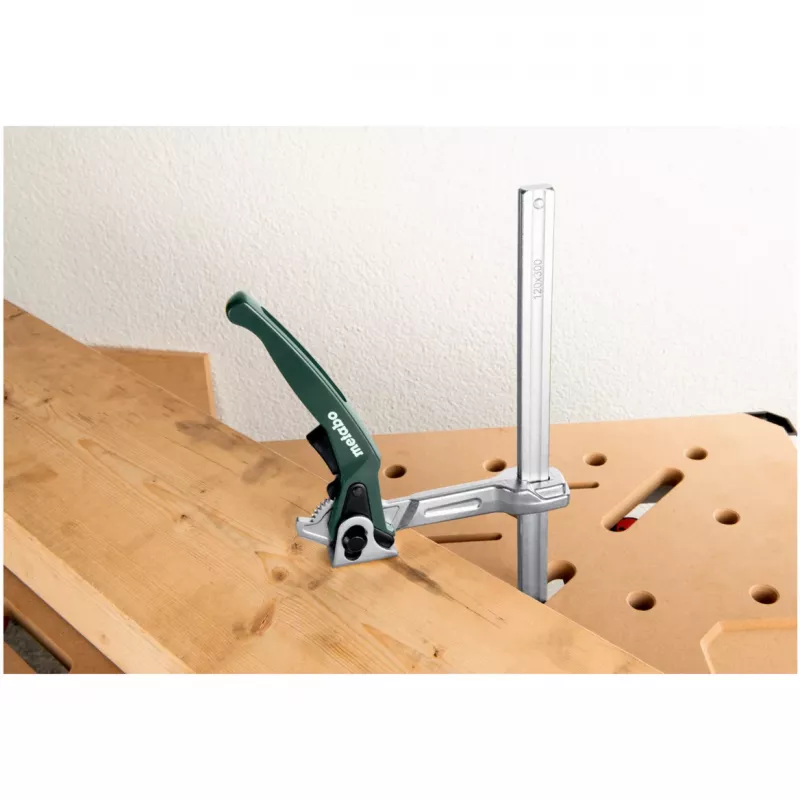

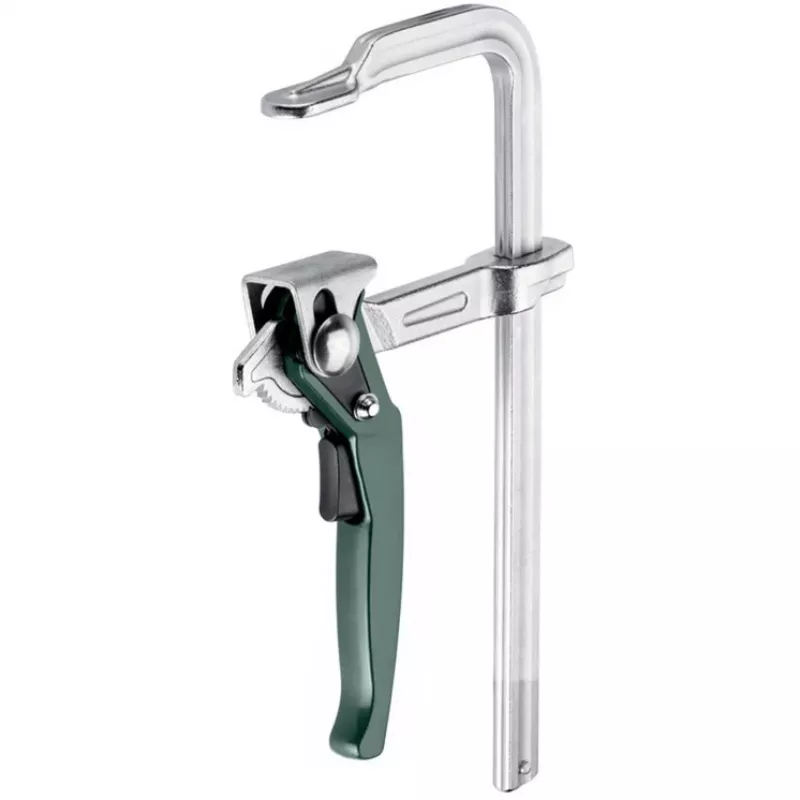

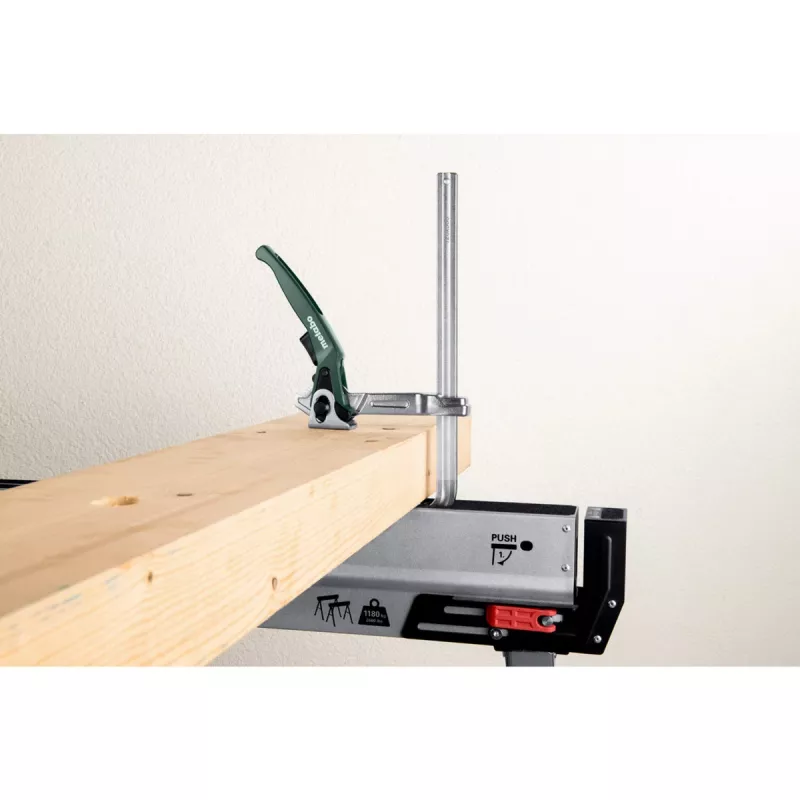

Clamping and spreading workpieces often requires a tool that can be operated with one hand, freeing the other to hold the material in place. The Metabo 630138000 quick clamp solves this by combining a 300 mm clamping width with a 140 mm throat depth, allowing you to secure a wide range of workpieces quickly and securely.

Who is it for

This clamp is for woodworkers, metalworkers, and DIY enthusiasts who need a reliable one-hand clamping tool for assembly, gluing, or holding workpieces during cutting, drilling, or sanding. Its convertible spreading function also makes it useful for gently pushing parts apart or holding them in tension.

Main features

• One-hand operation with quick release lever for fast adjustment
• Convertible from clamping to spreading function
• Ergonomic 2-component plastic handle for comfortable grip
• High-quality steel rail for durability and stability
• Removable protective caps on jaws to prevent marring of workpieces
• Reinforced plastic jaws for secure grip without damage

Specifications

• Max. clamping width: 300 mm
• Throat depth: 140 mm
• Max. clamping force: 1200 N (120 kg)
• Rail material: high-quality steel
• Handle material: ergonomic 2-component plastic
• Jaw material: reinforced plastic
• Release mechanism: quick release lever
• Product type: quick clamp

Tips

To switch between clamping and spreading, remove the jaw, reverse it, and reattach. The removable protective caps can be taken off when working with rough surfaces that might damage them. For maximum clamping force, ensure the jaws are aligned with the workpiece before applying pressure.
