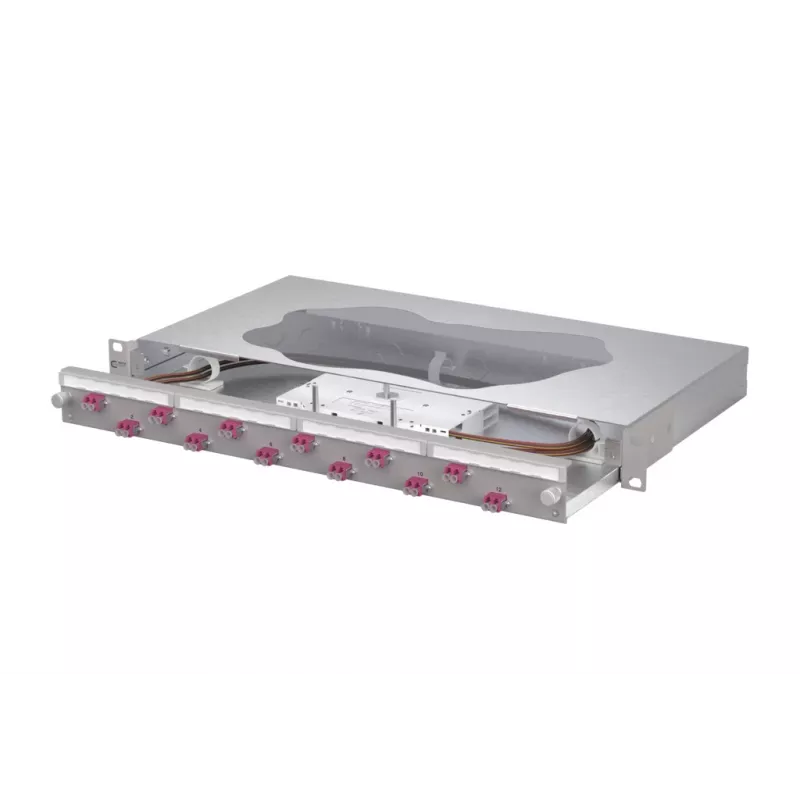

METZ CONNECT kuitujatkospaneeli 12x LC-duplex OM4, 1U, 19 tuuman räkkiasennus, harmaa 1504677512-F

24 OM4 multimode fibers in a 1U 19-inch panel with 12 LC-Duplex ports, ready for fusion splicing.

Overview

The METZ CONNECT 1504677512-F is a splice-ready fiber optic patch panel for high-density data center and enterprise network installations. It provides 12 LC-Duplex ports, supporting 24 OM4 multimode fibers in a single rack unit. The panel is designed for 19-inch rack mounting and features a light grey (RAL 7035) powder-coated steel housing with integrated rear cable entry and strain relief.

What stands out

• 12 LC-Duplex ports for 24 OM4 multimode fibers
• 1U 19-inch rack mount form factor
• Fusion splicing with included splice cassettes
• Robust steel housing, light grey finish
• Rear cable entry with integrated strain relief

Technical details

• Connector type: LC-Duplex
• Number of ports: 12
• Fiber count: 24 (12x Duplex)
• Fiber category: OM4 Multimode
• Splicing method: Fusion splicing
• Mounting: 19-inch rack, 1U
• Housing material: Steel, powder-coated
• Colour: Light grey (RAL 7035)
• Operating temperature: -10°C to +60°C
• Storage temperature: -25°C to +70°C
• Application: Data centers, enterprise networks, telecommunications

Our verdict

A compact, splice-ready OM4 panel that maximizes fiber density in a single rack unit, ideal for structured cabling in modern data centers.
