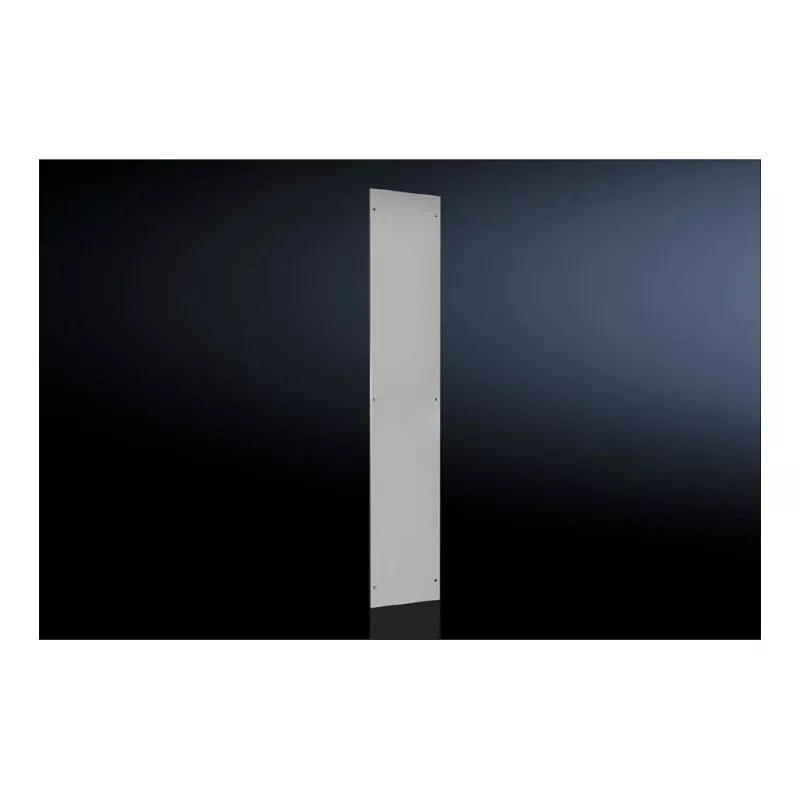

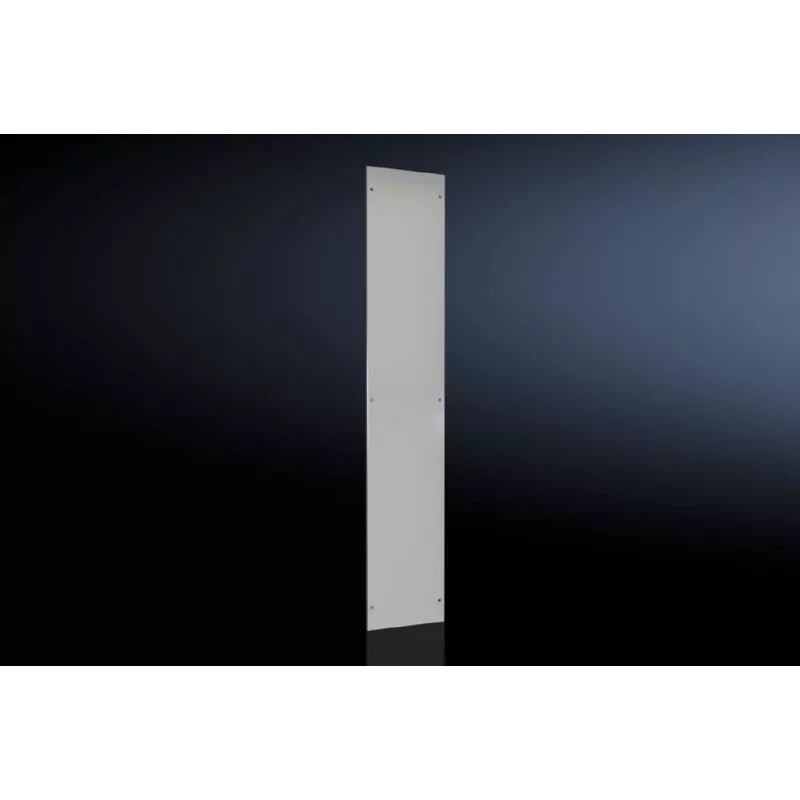

Rittal VX sivuseinä, ruuvikiinnitys, koolle LxK: 2000x400 mm, teräslevy, RAL 7035

Closing the sides of a VX 25 enclosure demands a panel that fits precisely and stands up to industrial conditions. The Rittal VX side panel, screw-fastened and sized for 2000x400 mm, delivers a solid, non-vented barrier against dust, moisture, and unauthorized access. Its sheet steel construction and light grey powder coating ensure long-term durability in demanding environments.

Who is it for

Electrical engineers, panel builders, and maintenance professionals working with Rittal VX 25 enclosures will find this panel essential for completing or modifying installations. It suits industrial automation, power distribution, and control systems where IP 55 and NEMA 12 protection are required.

Main features

• Compatible with Rittal VX 25 enclosure system, height 2000 mm, depth 400 mm
• Screw-fastened mounting for a secure, vibration-resistant fit
• Constructed from high-quality sheet steel, 1.5 mm thick
• Dip-primed and powder-coated in RAL 7035 light grey for excellent corrosion resistance
• Solid, non-vented design for maximum protection
• Meets IP 55 and NEMA 12 protection ratings when properly sealed
• Supplied with assembly components for easy installation
• RoHS compliant, UL and cUL certified

Specifications

• Product type: Side panel
• Series: VX 25
• Material: Sheet steel
• Surface finish: Dip-primed, powder-coated
• Colour: RAL 7035 (light grey)
• Enclosure height compatibility: 2000 mm
• Enclosure depth compatibility: 400 mm
• Actual panel height: 1990 mm
• Actual panel width: 390 mm
• Panel thickness: 1.5 mm
• Protection rating (with sealing): IP 55
• NEMA protection rating (with sealing): NEMA 12
• Supply includes: 1 side panel, assembly components
• Design feature: Solid (non-vented)
• Compatibility: Rittal VX 25 enclosure system
• Environmental compliance: RoHS
• Certification: UL, cUL

Tips

For optimal sealing, ensure the enclosure frame is clean and free of debris before mounting the panel. Use the supplied assembly components and tighten screws evenly to maintain the IP 55 / NEMA 12 rating. This panel is designed specifically for VX 25 enclosures; do not use with other series.
