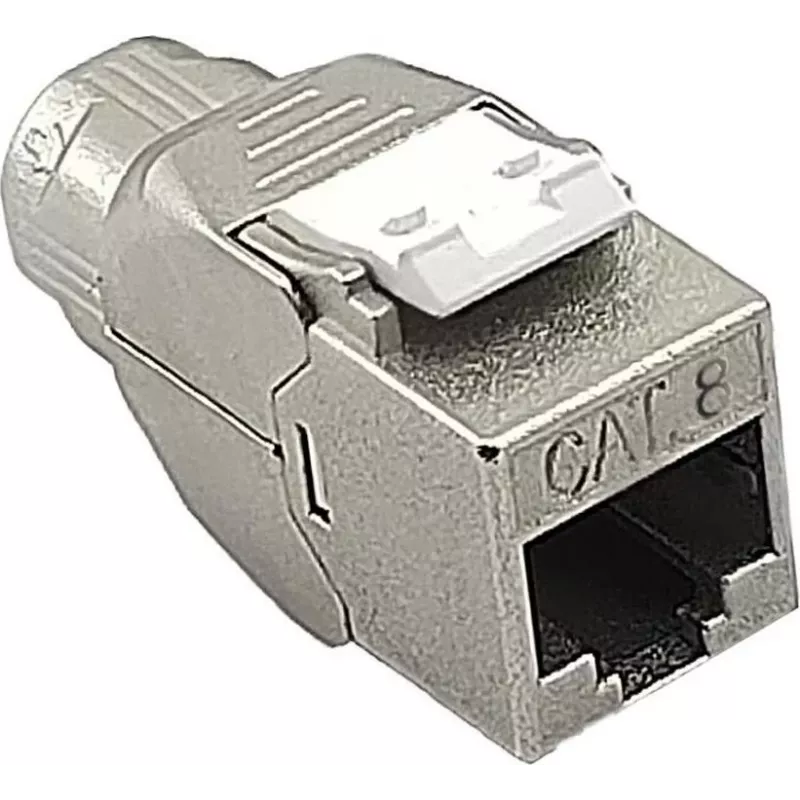

ROLINE Keystone Cat.8/Class I suojattu superohut työkaluton moduuli

The ROLINE Keystone Cat.8/Class I Shielded Super Slim Toolless Module is a high-performance keystone module designed for demanding network environments. It supports data transmission speeds up to 40 Gbit/s and a bandwidth of 2000 MHz, making it ideal for data centers, server rooms, and high-speed LAN applications. The toolless termination design allows for quick and easy installation without special tools, saving time and effort.

Advantages

This keystone module offers exceptional performance and reliability. Its super slim design saves space in patch panels and faceplates, while the shielded construction (STP) minimizes electromagnetic interference for stable connections. The toolless IDC termination supports both solid and stranded wires (AWG 22-26), providing flexibility for various cabling needs. Gold-plated contacts ensure optimal conductivity and corrosion resistance.

Suitable for

• Data centers requiring high-speed 40 Gigabit Ethernet
• Enterprise networks with Cat.8 cabling infrastructure
• Professional AV and broadcast applications
• High-performance computing environments

Key specifications

• Network Standard: Cat.8 / Class I
• Shielding: Shielded (STP)
• Connector Type: RJ45 Female
• Termination Type: Toolless IDC
• Housing Material: Die-cast Zinc
• Contact Plating: Gold-plated (50µm)
• Wiring Scheme: TIA-568A / TIA-568B
• Cable Compatibility: Solid and Stranded Wire
• Wire Gauge Support: AWG 22-26
• Transmission Speed: Up to 40 Gbit/s
• Bandwidth: Up to 2000 MHz
• PoE Support: PoE, PoE+, 4PPoE (PoE++)
• Module Type: Keystone
• Installation: Snap-in
• Design: Super Slim
• Operating Temperature: -10°C to +60°C
• Standards Compliance: ISO/IEC 11801-1 Ed. 3.0, EN 50173-1, IEC 60603-7-81
• RoHS Compliant: Yes

Recommendations

For optimal performance, pair this keystone module with Cat.8 shielded patch cables and compatible patch panels. Ensure proper grounding of the shielding for maximum EMI protection.
