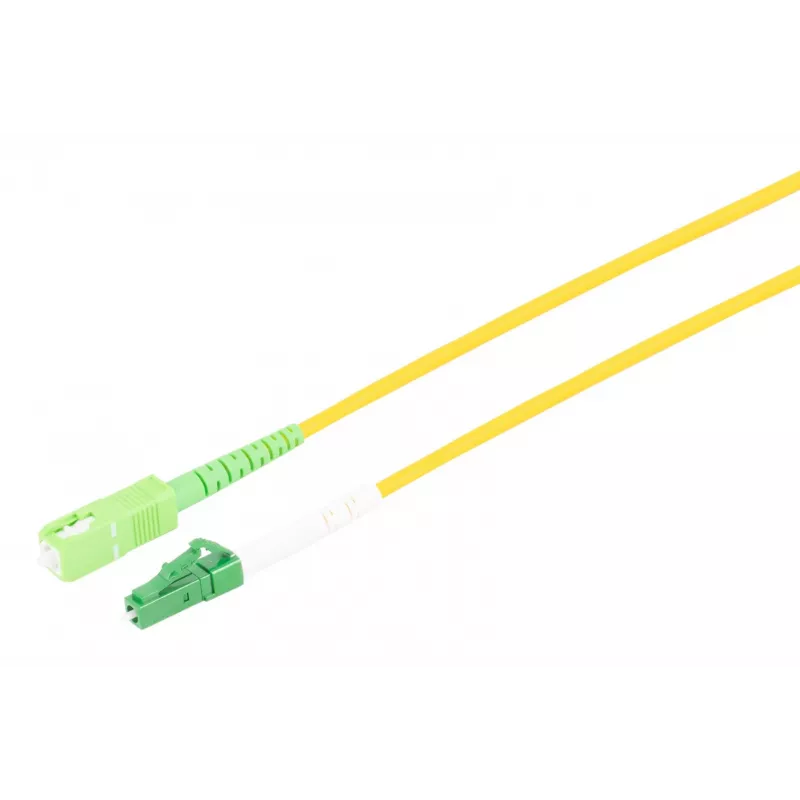

S CONN Maximum Connectivity kuitu-parikaapeli Simplex LC/APC - SC/APC OS2 1,5 m

The S CONN Maximum Connectivity LWL Patch Cable is a high-performance fiber optic patch cable designed for reliable single-mode connections in data centers, telecommunications, FTTH, and LAN applications. With LC/APC to SC/APC connectors and OS2 fiber, this simplex cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable features APC polish for reduced back reflection, LSZH jacket for safety in enclosed spaces, and a compact 3 mm diameter for easy routing. It complies with RoHS, REACH, and international standards, ensuring long-term reliability.

Suitable for

• Data center fiber optic patching
• Telecommunications networks
• FTTH (Fiber to the Home) installations
• Local area networks (LAN)

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Type: OS2 (G.657.A1 / G.652.D compatible)
• Connector A: LC/APC
• Connector B: SC/APC
• Connector Polish: APC
• Cable Length: 1.5 m
• Fiber Count: Simplex (1 Fiber)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 3 mm
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Standards Compliance: RoHS, REACH, IEC 61754, TIA/EIA-604

Recommendations

For best performance, ensure connectors are clean before mating. This cable is ideal for high-speed single-mode applications requiring low loss and high return loss.
