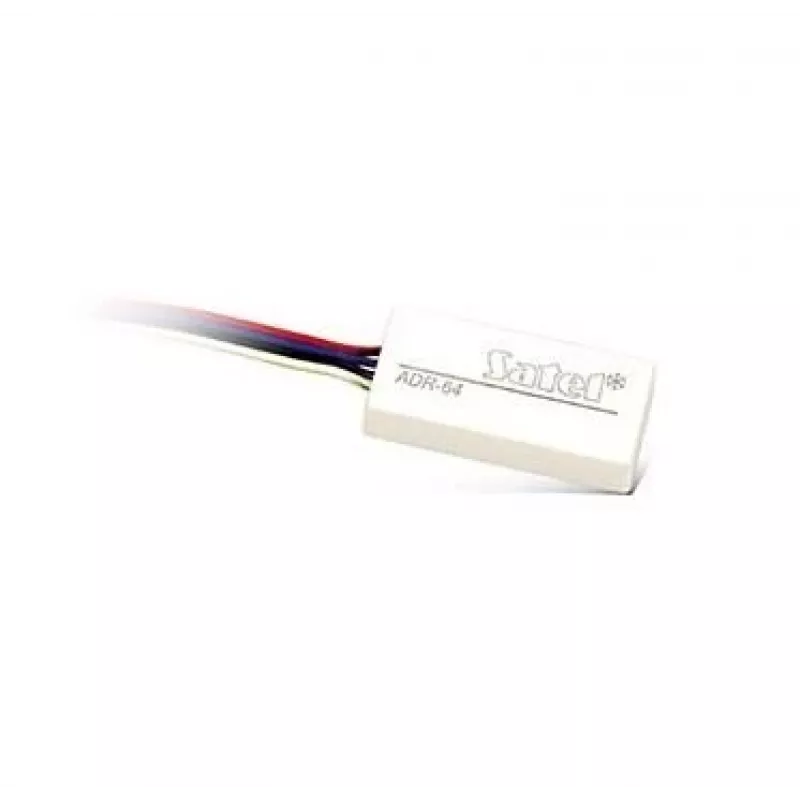

SATEL CA-64 ADR-MOD osoitteellinen tulomoduuli

The SATEL CA-64 ADR-MOD is an addressable input module designed for expanding the zone capacity of SATEL CA-64 control panels. It provides two supervised inputs that can be configured for various wiring types, making it a versatile solution for wired zone expansion in intrusion alarm systems.

Advantages

Software-configurable addressing simplifies installation and integration. The module supports multiple input configurations (NO, NC, EOL, 2EOL/NO, 2EOL/NC) for flexible wiring. Low standby current consumption (15 mA) ensures energy efficiency. Overload protection enhances reliability.

Suitable for

• Expanding zone inputs on SATEL CA-64 control panels
• Wired intrusion alarm systems requiring additional supervised zones
• Indoor installations in residential, commercial, or industrial security applications

Key specifications

• Module Type: Addressable Input Module
• Compatible Control Panels: SATEL CA-64
• Number of Inputs: 2
• Input Configuration: NO, NC, EOL, 2EOL/NO, 2EOL/NC
• Bus Type: RS-485 (SATEL Bus)
• Power Supply: 12V DC (from control panel)
• Standby Current Consumption: 15 mA
• Maximum Current Consumption: 18 mA
• Operating Temperature Range: -10°C to +55°C
• Maximum Humidity: 93% (±3%)
• Environmental Class: II (EN 50130-5)
• Addressing Method: Software Configurable
• Application: Wired Zone Expansion
• Installation Location: Indoor
• Protection Features: Overload Protection

Recommendations

For optimal performance, use with SATEL CA-64 control panels and ensure proper wiring according to the selected input configuration. The module should be installed indoors in a dry, dust-free environment.
