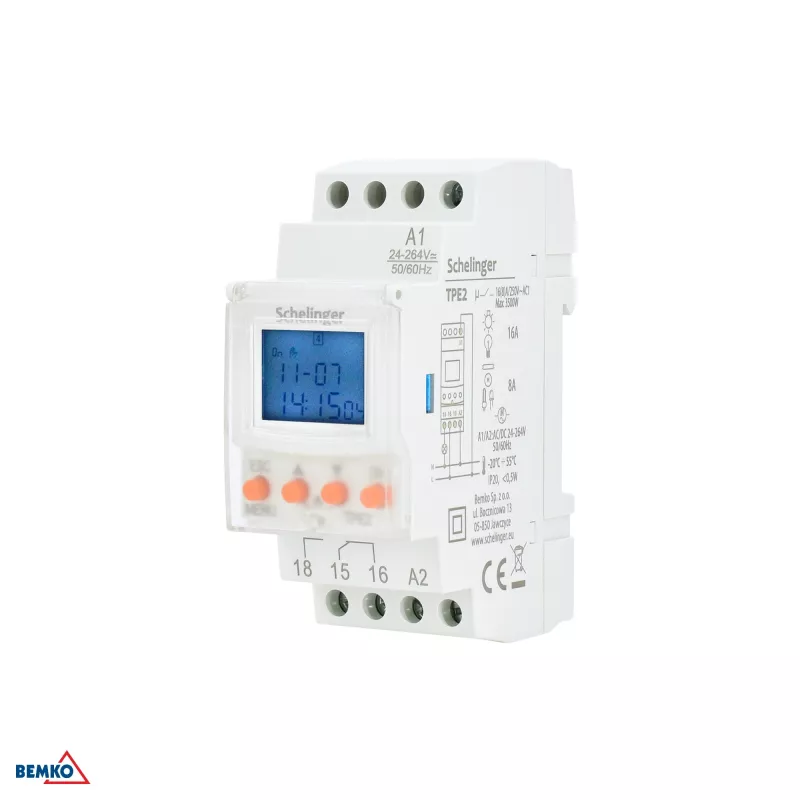

SCHELINGER A26-TPE2 elektroninen ajastin 7 päivän ohjelmoitava 16A/3680W

The SCHELINGER A26-TPE2 is a high-quality digital electronic timer designed for precise weekly programming of electrical devices. With 10 ON/OFF programs and a minimum setting time of 1 minute, it offers flexible control for home and office automation. The built-in NiMH rechargeable battery ensures program retention during power outages, while the LCD display provides clear status information.

Advantages

Easy plug-in installation, intuitive programming, and reliable performance. The random function adds security by simulating presence, and the countdown feature is ideal for temporary tasks. Summer/winter time adjustment and manual override enhance usability.

Suitable for

• Automating lighting, heating, and ventilation systems
• Controlling household appliances like coffee makers and chargers
• Energy saving by scheduling devices during off-peak hours
• Security applications with random presence simulation

Key specifications

• Timer Type: Digital Electronic
• Programming Cycles: Weekly (7-Day)
• Number of Programs: 10 ON/OFF Programs
• Minimum Setting Time: 1 Minute
• Maximum Load: 16A / 3680W
• Operating Voltage: 230V AC, 50Hz
• Display Type: LCD
• Battery Backup: Yes (Built-in NiMH rechargeable battery)
• Functions: Random, Countdown, Summer/Winter Time, Manual ON/OFF/AUTO
• Mounting Type: Plug-in (Socket)
• Protection Rating: IP20
• Operating Temperature: 0°C to +50°C
• Accuracy: ±1 Minute per Month
• Number of Sockets: 1 (Schuko type)
• Grounding: Yes
• Housing Material: Plastic

Recommendations

For optimal performance, use with resistive loads up to 3680W. Ensure the timer is plugged into a properly grounded outlet. The built-in battery requires initial charging (connect to mains for 24 hours) for full backup functionality.
